86561-7

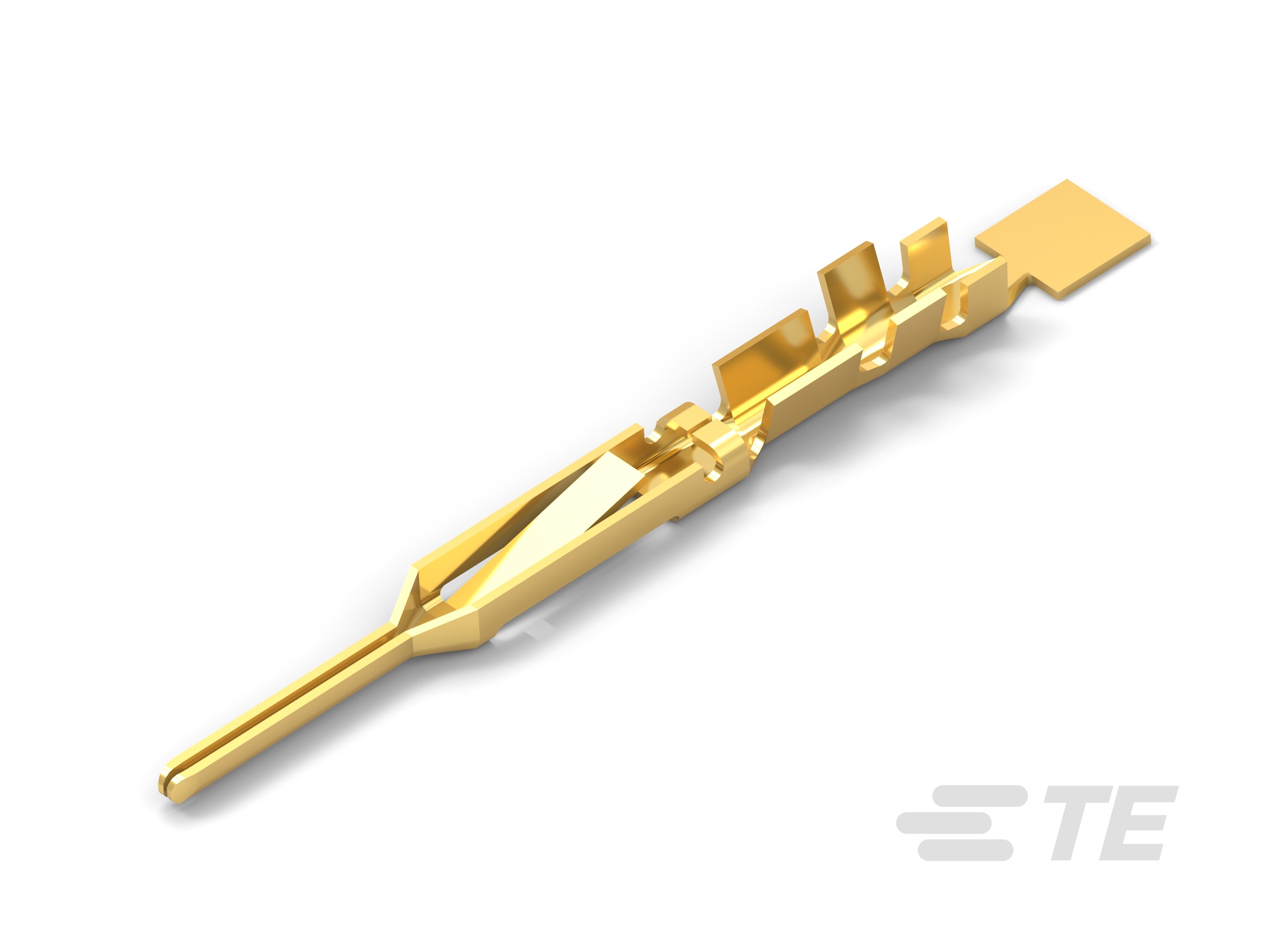

Pin Contact, Gold, Discrete Wire, 26 – 22 AWG Wire Size, .12 – .4 mm² Wire Size, Insulation Displacement (IDC), Phosphor Bronze, Signal
86561-7
Pin Contact, Gold, Discrete Wire, 26 – 22 AWG Wire Size, .12 – .4 mm² Wire Size, Insulation Displacement (IDC), Phosphor Bronze, Signal
- TE Internal #: 86561-7
- TE Internal Description: ROUND WIRE PIN L.P.
- All 2.54mm FFC Connectors Pin Contacts (34)
-
Contact Type : Pin
-
Contact Mating Area Plating Material : Gold
-
Compatible With Wire & Cable Type : Discrete Wire
-
Wire Size (AWG): 26 – 22
-
Wire Size (mm²): .12 – .4
