Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

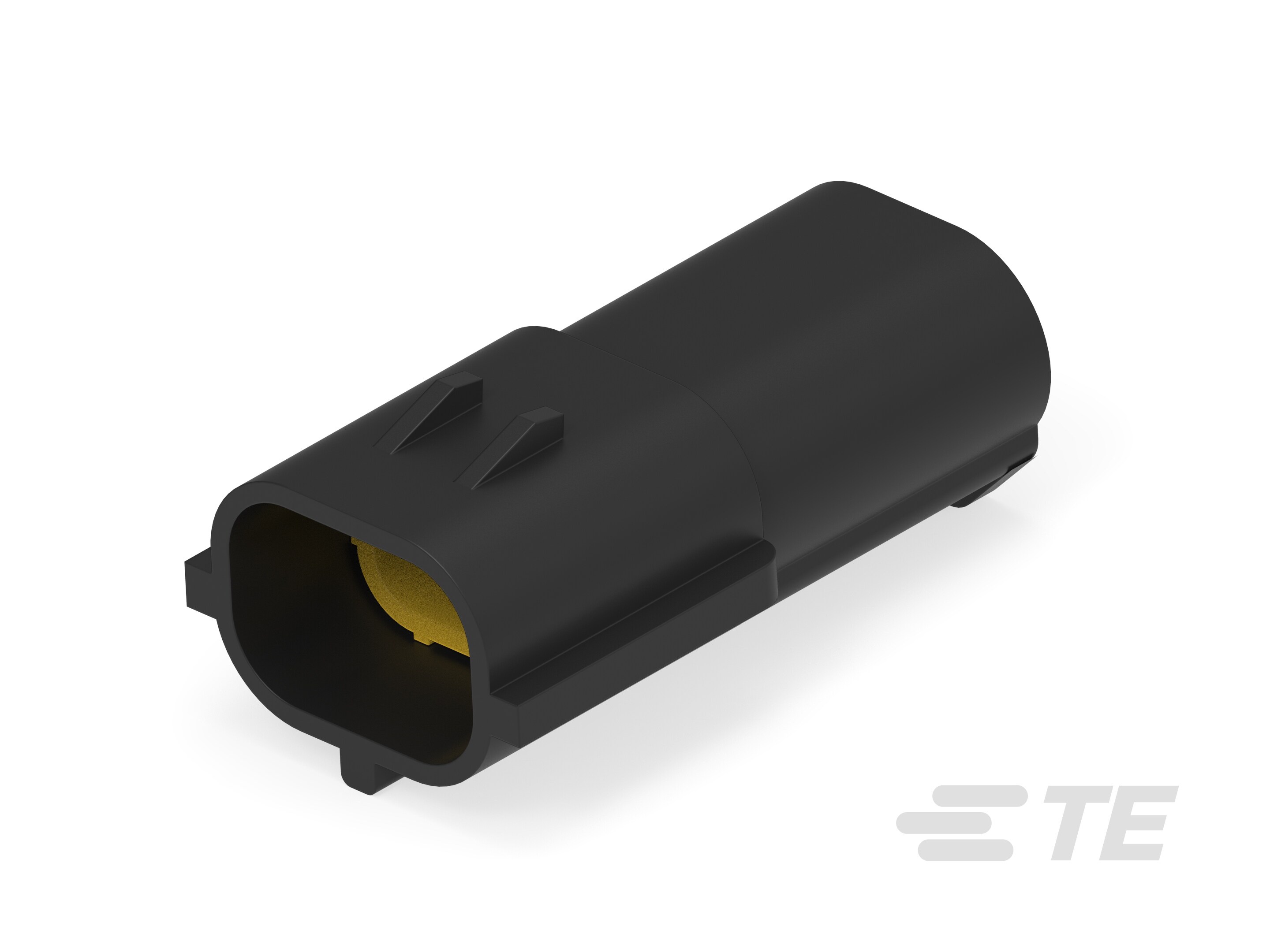

• Connector Shape : Rectangular

• Connector & Housing Type : Housing for Male Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : Yes

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : No

• Number of Positions : 2

• Number of Rows : 1

• Operating Voltage (VDC): 12

• Nominal Voltage Architecture (V): 12

• Primary Product Color : Black

• Cable Exit Angle : 180°

• Mating Tab Width : 1.8 mm [ .071 in ]

• Contact Size : 1.8mm

• Contact Type : Tab

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Mating Alignment Type : Polarized

• Terminal Position Assurance : Yes

• Mating Alignment : With

• Strain Relief : Without

• Housing Material : PBT

• Centerline (Pitch) : 4.8 mm [ .189 in ]

• Product Width : 32.5 mm [ 1.28 in ]

• Connector Height : 14 mm [ .551 in ]

• Product Length : 18.3 mm [ .72 in ]

• Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]

• Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105

• Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221

• Circuit Application : Signal

• UL Flammability Rating : UL 94HB

• Packaging Method : Package

• Packaging Quantity : 1000
