- MEAS
- MEAS 89 Series
- TE Internal #: 89BSD-028BA-A

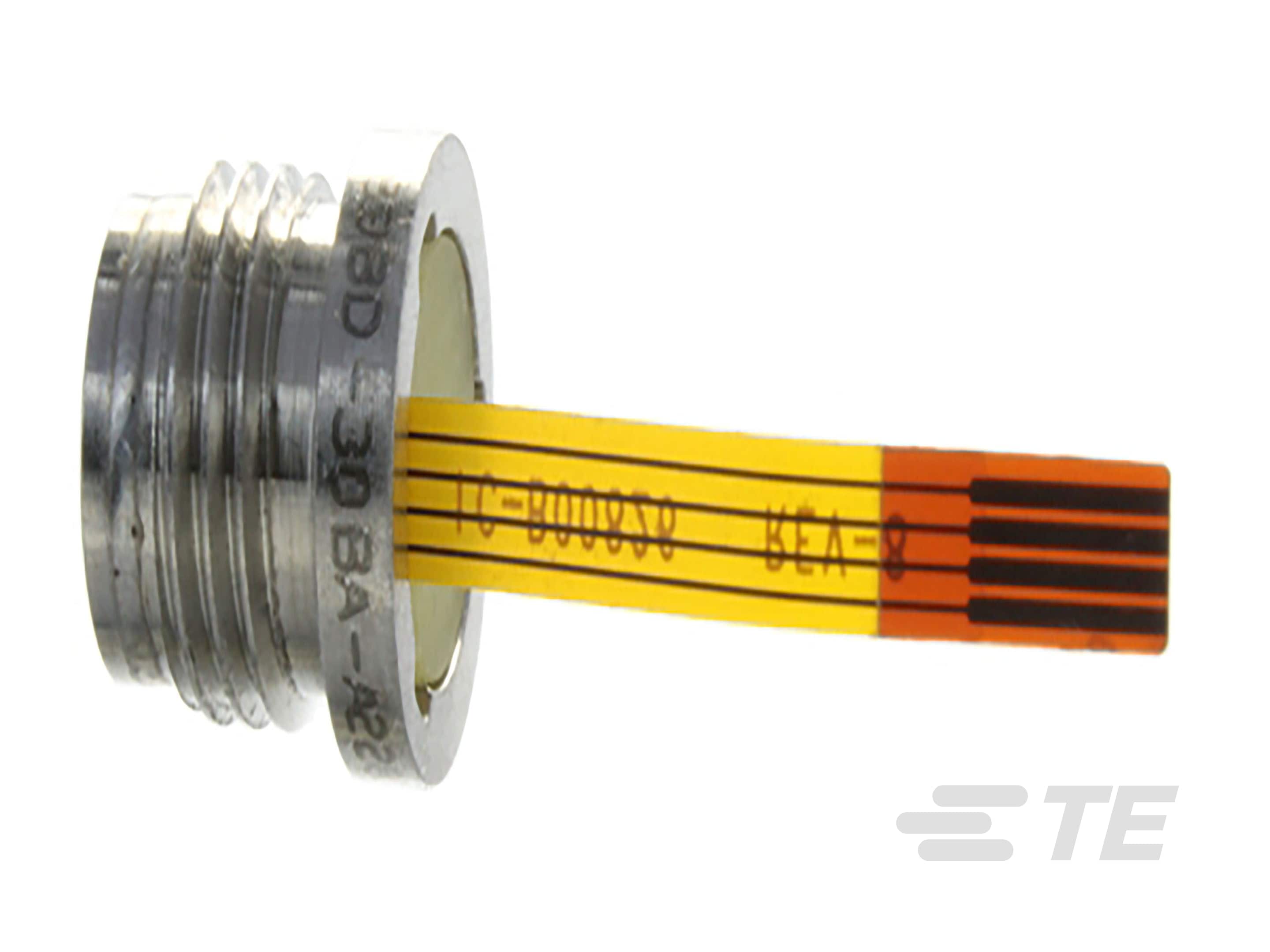

- TE Internal Description: 28 BARA 316L DIGITAL PRESSURE SENSOR
- All 9MM DIGITAL OUTPUT PRESSURE SENSOR (17)
-
Pressure Sensor Type : Digital Pressure Sensor
-
Pressure Type : Absolute
-
Output Signal Type : 24 bit ADC
-
Supply Voltage Range (V): 3
-
Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_89BSD-028BA-A_C1.pdf 3D
- Customer View Model ENG_CVM_CVM_89BSD-028BA-A_C1.2d_dxf.zip English
- ENG_CVM_CVM_89BSD-028BA-A_C1.3d_igs.zip English
- ENG_CVM_CVM_89BSD-028BA-A_C1.3d_stp.zip English
Datasheets & Catalog Pages
- 89BSD ENG_DS_89BSD_A7.pdf English
