• Contact Number of Poles : 6

• Contact Arrangement : 5A (NO) + 1B (NC)

• Coil Resistance (Ω): 720

• Contact Switching Load (Min) : 10mA @ 5V

• Contact Switching Voltage (Max) (VAC): 400

• Insulation Initial Dielectric Between Adjacent Contacts (Vrms): 3000

• Insulation Initial Dielectric Between Open Contacts (Vrms): 1500

• Contact Current Rating (A): 8

• Coil Voltage Rating (VDC): 24

• Contact Voltage Rating (VAC): 250

• Coil Power Rating DC (W): .8

• Insulation Initial Dielectric Between Contacts & Coil (Vrms): 4000

• Product Weight : 30 g [ 1.058 oz ]

• Enclosure Type : Flux Resistant Automatic Soldering & Washable

• Environmental Category of Protection : RTIII

• Operating Temperature Range : -25 – 70 °C [ -13 – 158 °F ]

• Environmental Ambient Temperature (Max) : 70 °C [ 158 °F ]

• Contact Current Class (A): 5 – 10

• Coil Power Rating Class (W): .6 – .8

• Height Class (Mechanical) (mm): 15 – 20

• Length Class (Mechanical) (mm): 50 – 60

• Width Class (Mechanical) (mm): 16 – 20

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Packaging Method : Box & Tube

• Product Availability : Worldwide

• Product Height : 16.5 mm [ .649 in ]

• Product Length : 55 mm [ 2.16 in ]

• Product Width : 16.5 mm [ .649 in ]

• Insulation Creepage Between Contact & Coil : 5.5 mm [ .217 in ]

• Insulation Clearance Between Contact & Coil : 5.5 mm [ .217 in ]

• Contact Material : AgSnO2+Au

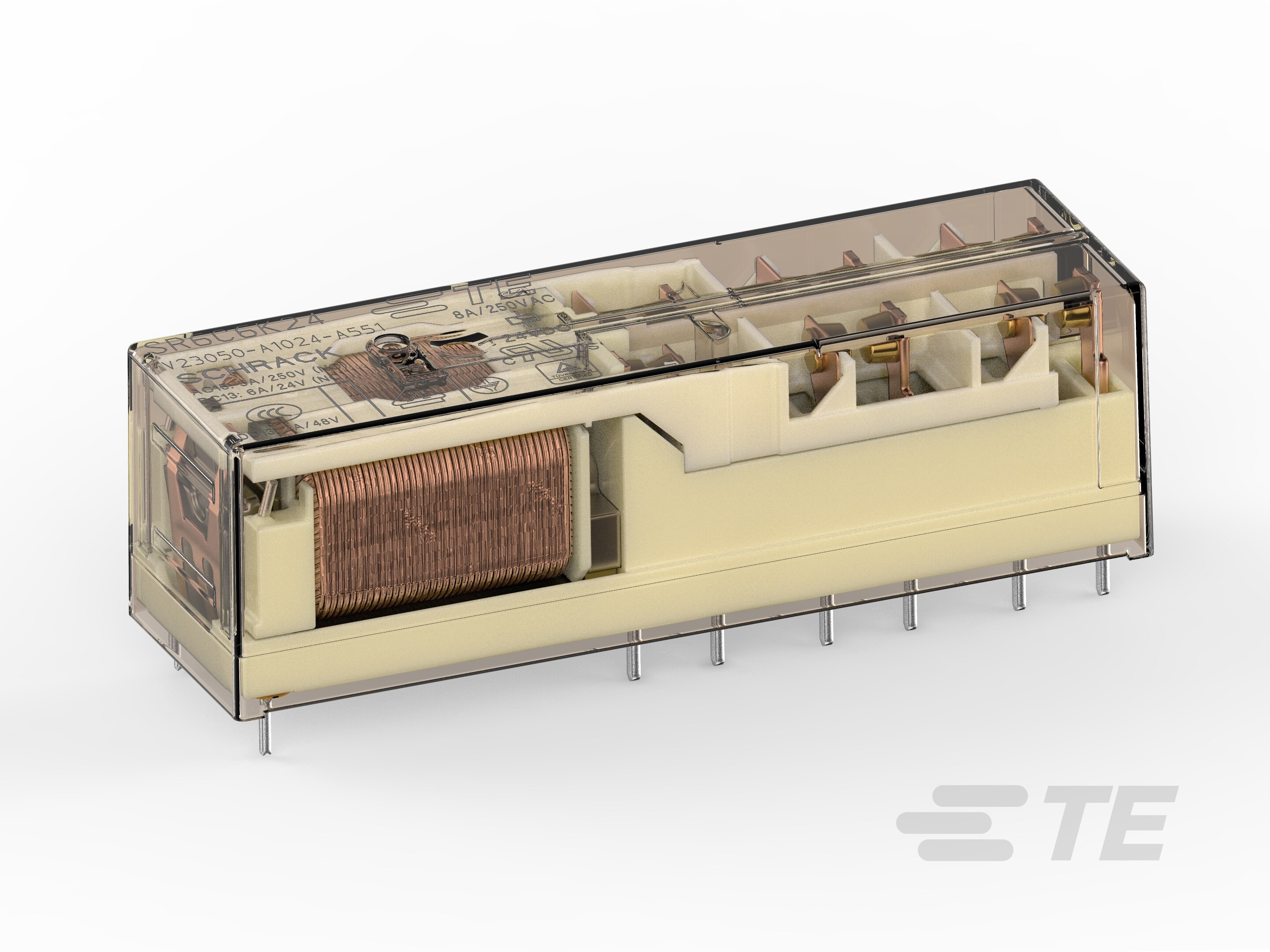

• Relay & Contactor Type : Force-Guided Relay

• Main Termination & Connection Type : Solder Pins

• Coil Termination & Connection Type : Solder Pins
