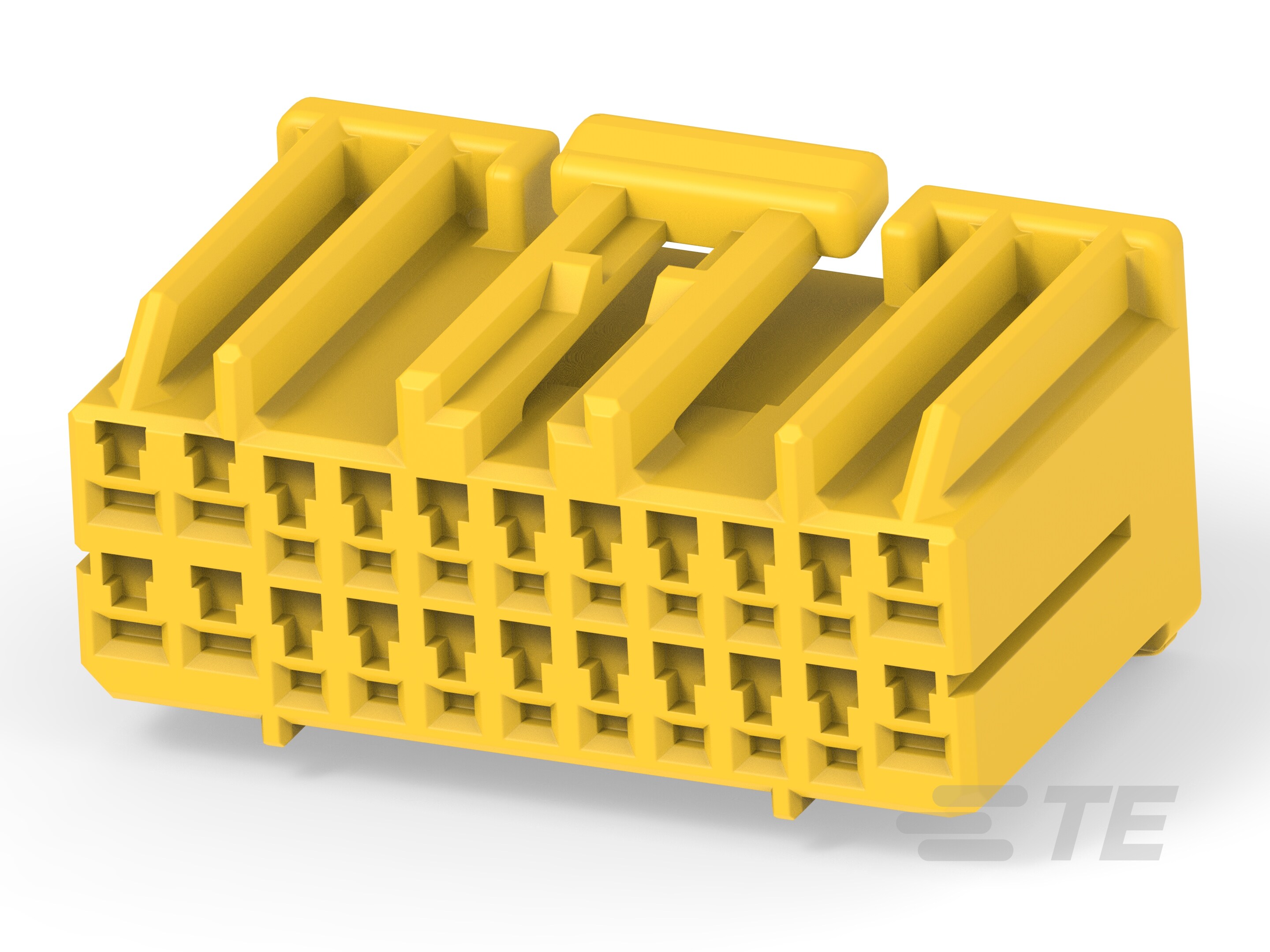

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : Yes

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Board

• Sealable : No

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Receptacle

• Contact Size : 1.8mm, 1mm

• Mating Tab Width (mm): 1, 1.8

• Mating Tab Width (in): .039, .071

• Housing Material : PBT

• Centerline (Pitch) (mm): 3, 3.5

• Centerline (Pitch) (in): .13, .11

• Cable Exit Angle : 180°

• Primary Product Color : Yellow

• Operating Voltage (VDC): 12

• Nominal Voltage Architecture (V): 12

• Serviceable : Yes

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Polarized

• Terminal Position Assurance : No

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Bag

• Packaging Quantity : 100

• Product Length : 35.2 mm [ 1.38 in ]

• Product Width : 21 mm [ .82 in ]

• Row-to-Row Spacing : 5.2 mm [ .2 in ]

• UL Flammability Rating : UL 94HB

• Number of Positions : 22

• Number of Rows : 2

• Operating Temperature (Max) (°C): 80, 105, 100, 90, 85, 75, 70

• Operating Temperature (Max) (°F): 221, 158, 167, 176, 194, 185, 212

• Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]
