Wire-to-Wire, 4 Position, 5.08 mm [.2 in] Centerline, Wire & Cable, Power, Commercial MATE-N-LOK, Standard Circular Connectors
925076
Wire-to-Wire, 4 Position, 5.08 mm [.2 in] Centerline, Wire & Cable, Power, Commercial MATE-N-LOK, Standard Circular Connectors
-
- MATE-N-LOK
- Commercial MATE-N-LOK
- TE Internal #: 925076

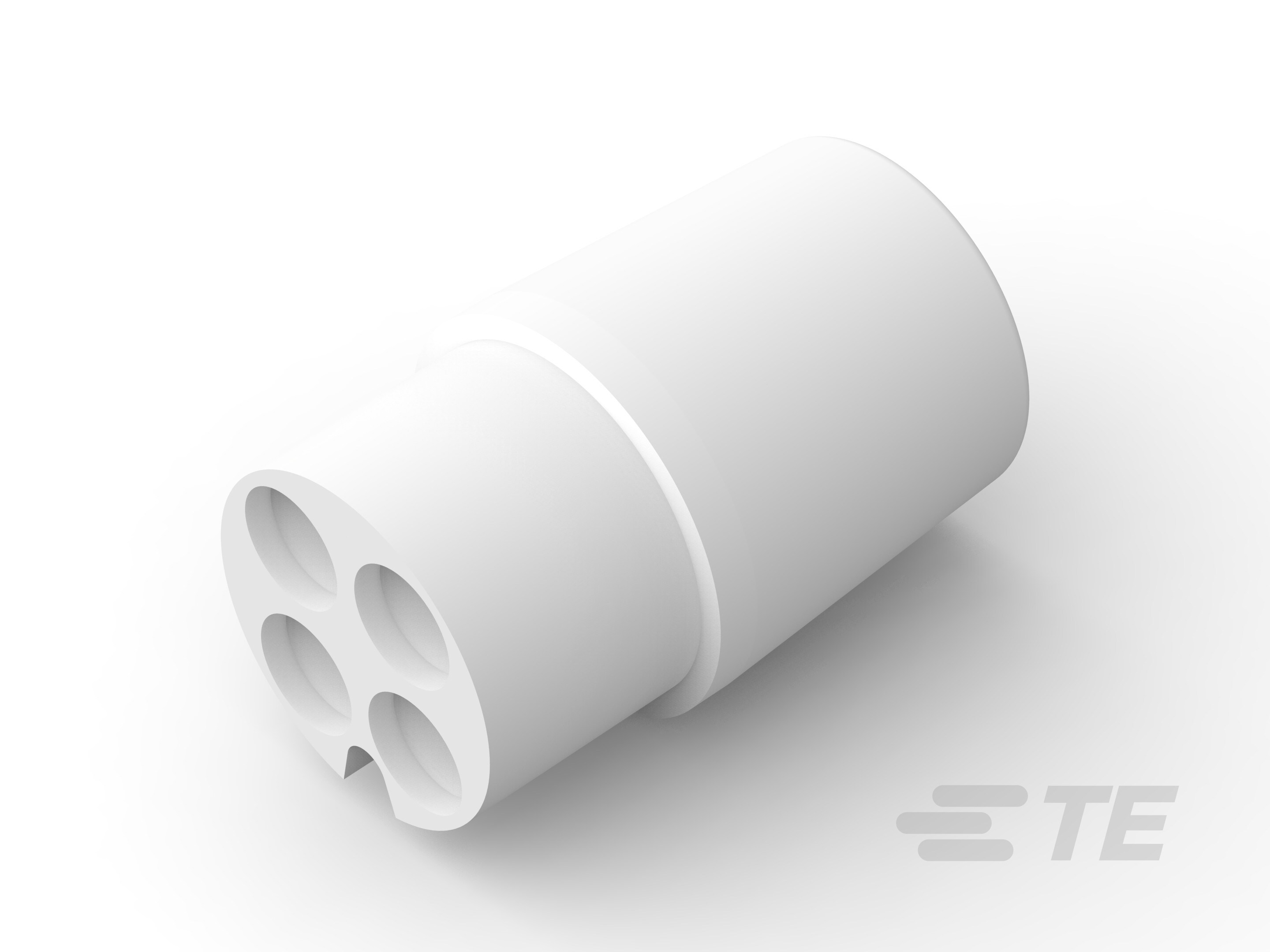

- TE Internal Description: 4W CIRCULAR MATE-N-LOK SOCKET HSG NAT
-
Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]
-
Connector & Contact Terminates To : Wire & Cable
-
Connector Mounting Type : Cable Mount (Free-Hanging)
-
Number of Power Positions : 4
-
Mating Alignment Type : Polarization
