926898-3

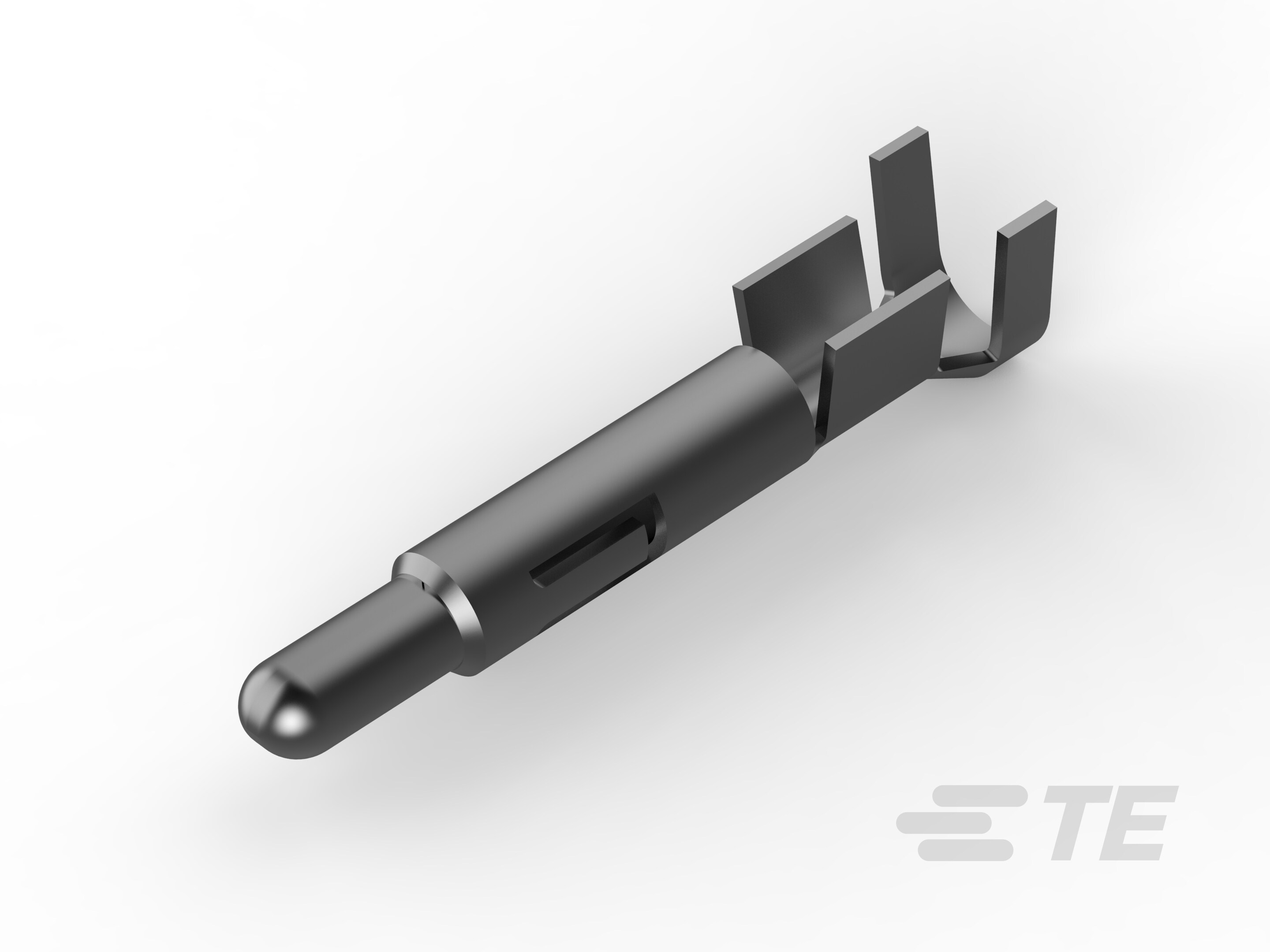

Pin Contact, Tin, 600 VAC, Locking Lance Contact Retention, 20 – 14 AWG Wire Size, .5 – 2 mm² Wire Size, Crimp, Phosphor Bronze, Universal MATE-N-LOK
926898-3
Pin Contact, Tin, 600 VAC, Locking Lance Contact Retention, 20 – 14 AWG Wire Size, .5 – 2 mm² Wire Size, Crimp, Phosphor Bronze, Universal MATE-N-LOK
-
- MATE-N-LOK
- Universal MATE-N-LOK
- TE Internal #: 926898-3
- TE Internal Description: UNIV.M-N-L.PIN
-
Packaging Method : Loose Piece
-
Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]
-
Wire Size (AWG): 20 – 14
-
Contact Orientation : Straight
-
Wire Insulation Support : Without
Documents
Product Drawings
- UNIVERSAL M-N-L PIN (LOOSE PIECE) ENG_CD_926898_P5.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_926898-3_P1.pdf English
- Customer View Model ENG_CVM_926898-3_P1.3d_igs.zip English
- ENG_CVM_926898-3_P1.3d_stp.zip English
- ENG_CVM_926898-3_P1.2d_dxf.zip English
Product Specifications
- Application Specification ENG_SS_114-1010_V2.pdf English
- Product Specification ENG_SS_108-1031_N2.pdf English
Agency Approvals
- VDE Certificate ENG_AAD_VDE_40023469_D-1.pdf English
- ENG_AAD_VDE_CERT_40023469_C1_B.pdf English
