Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

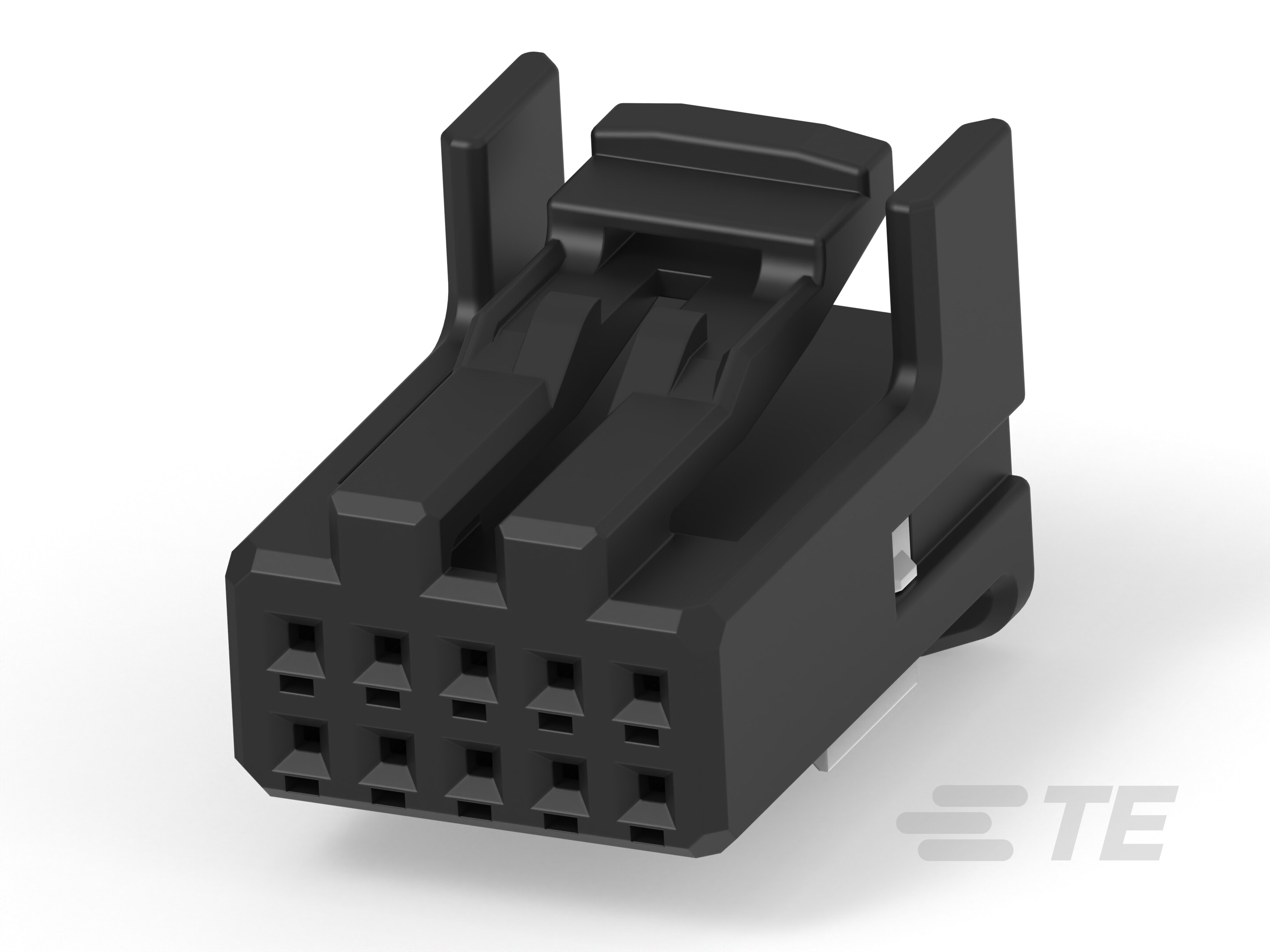

• Contact Size : .63mm

• Mating Tab Width : .63 mm [ .025 in ]

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector System : Wire-to-Wire

• Sealable : No

• Housing Material : PBT GF

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Operating Voltage (VDC): 13

• Nominal Voltage Architecture (V): 12

• Serviceable : No

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Polarized

• Terminal Position Assurance : No

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Quantity : 200

• Packaging Method : Package

• Connector Height : 21 mm [ .827 in ]

• Product Length : 14.54 mm [ .572 in ]

• Product Width : 15.8 mm [ .622 in ]

• Row-to-Row Spacing : 3 mm [ .118 in ]

• UL Flammability Rating : UL 94HB

• Number of Positions : 10

• Number of Rows : 2

• Primary Product Color : Black

• Operating Temperature (Max) (°C): 80, 105, 90, 100, 85, 75, 70

• Operating Temperature (Max) (°F): 221, 158, 167, 176, 194, 185, 212

• Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]
