Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

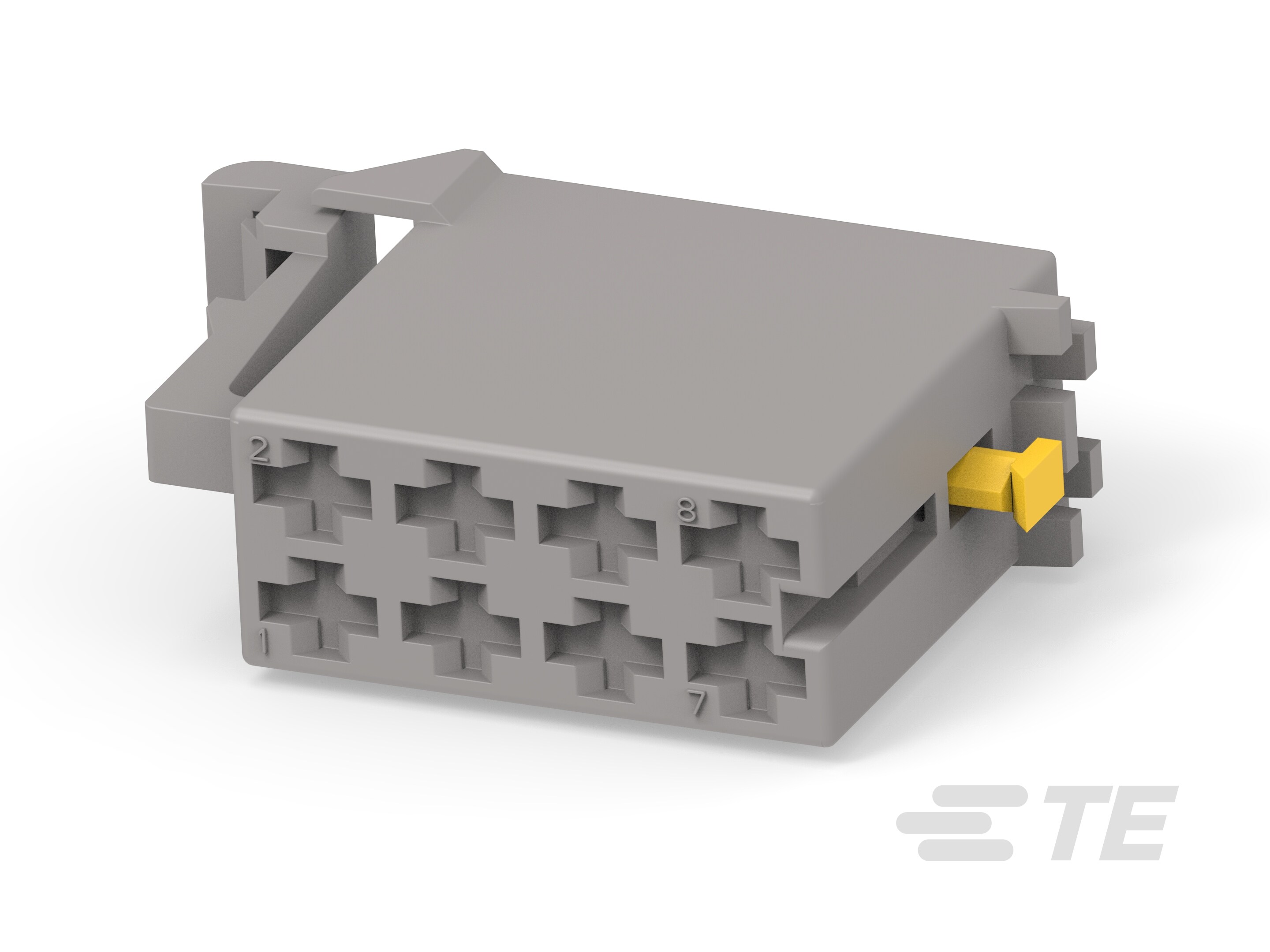

• Connector & Contact Terminates To : Wire & Cable

• Connector Shape : Rectangular

• Connector & Housing Type : Housing for Female Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : No

• Connector System : Wire-to-Board, Wire-to-Device

• Mixed & Hybrid Connector : No

• Number of Positions : 8

• Number of Rows : 2

• Nominal Voltage Architecture (V): 12

• Primary Product Color : Gray

• Cable Exit Angle : 180°

• Mating Tab Width : 2.8 mm [ .11 in ]

• Contact Current Rating (Max) (A): 30

• Contact Size : 2.8mm

• Contact Type : Receptacle

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Mating Alignment Type : Polarized

• Terminal Position Assurance : Yes

• Mating Alignment : With

• Strain Relief : Without

• Housing Material : PA

• Centerline (Pitch) : 6 mm [ .236 in ]

• Product Width : 23 mm [ .905 in ]

• Connector Height : 11 mm [ .433 in ]

• Product Length : 30 mm [ 1.18 in ]

• Row-to-Row Spacing : 5 mm [ .196 in ]

• Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

• Operating Temperature (Max) : 120 °C [ 248 °F ]

• Circuit Application : Power

• Packaging Method : Box

• Packaging Quantity : 600
