Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

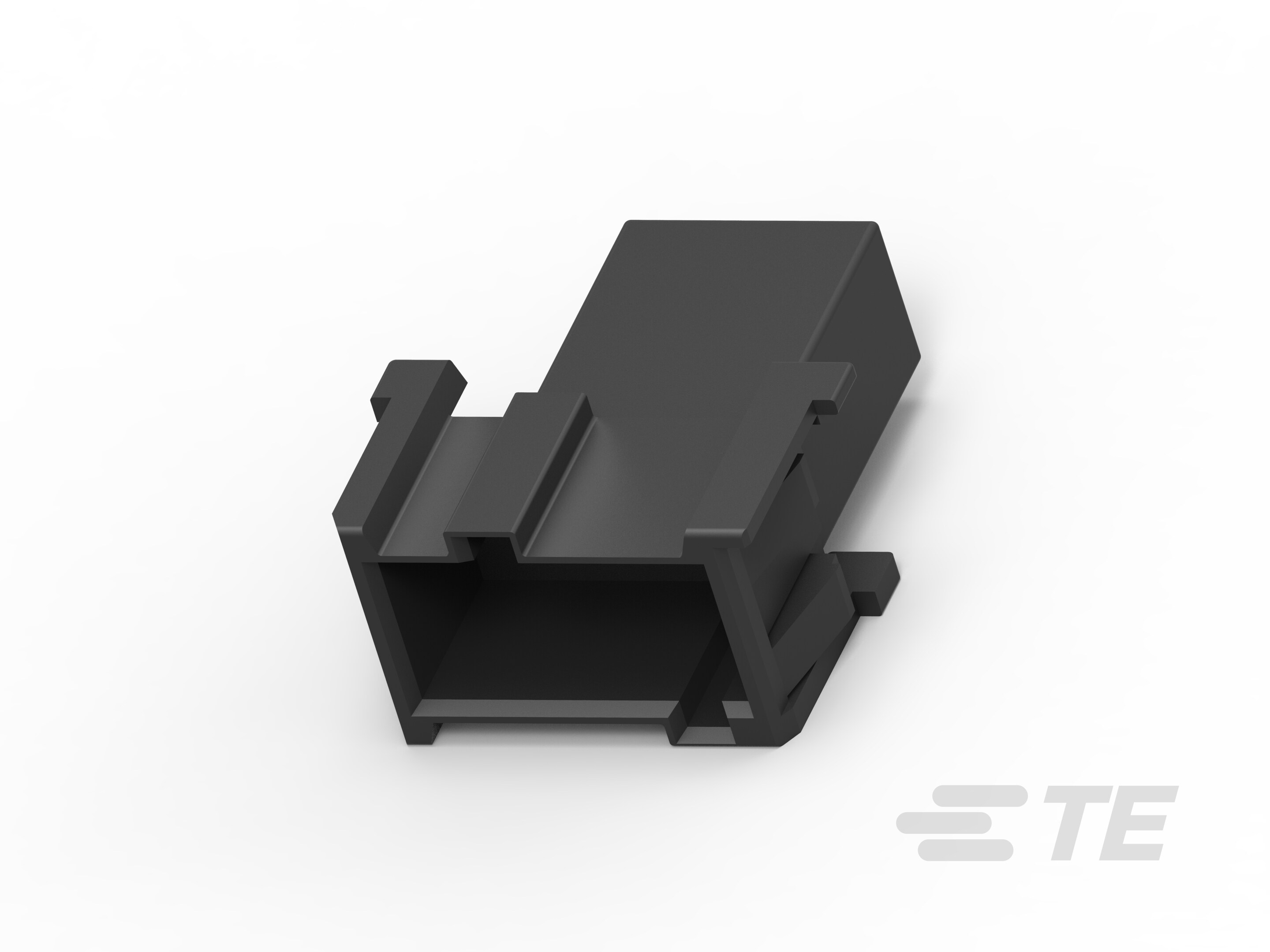

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Male Terminals

• Connector System : Wire-to-Panel, Wire-to-Wire

• Sealable : No

• Primary Locking Feature : On the Terminal

• Connector & Contact Terminates To : Wire & Cable

• Housing Material : PA GF

• Centerline (Pitch) : 8.6 mm [ .338 in ]

• Operating Voltage (VAC): 240

• Nominal Voltage Architecture (V): 24, 12

• Serviceable : No

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Contact Type : Tab

• Contact Size : 5.8mm

• Contact Current Rating (Max) (A): 40

• Mating Alignment : With

• Mating Alignment Type : Polarizing Slot

• Terminal Position Assurance : No

• Strain Relief : Without

• Connector Mounting Type : Panel Mount

• Packaging Method : Container

• Connector Height : 35.5 mm [ 1.398 in ]

• Product Length : 27.5 mm [ 1.083 in ]

• Product Width : 17.5 mm [ .689 in ]

• UL Flammability Rating : UL 94HB

• Number of Positions : 2

• Number of Rows : 1

• Primary Product Color : Black

• Connector & Keying Code : Neutral

• Operating Temperature (Max) : 105 °C [ 221 °F ]

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]
