Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

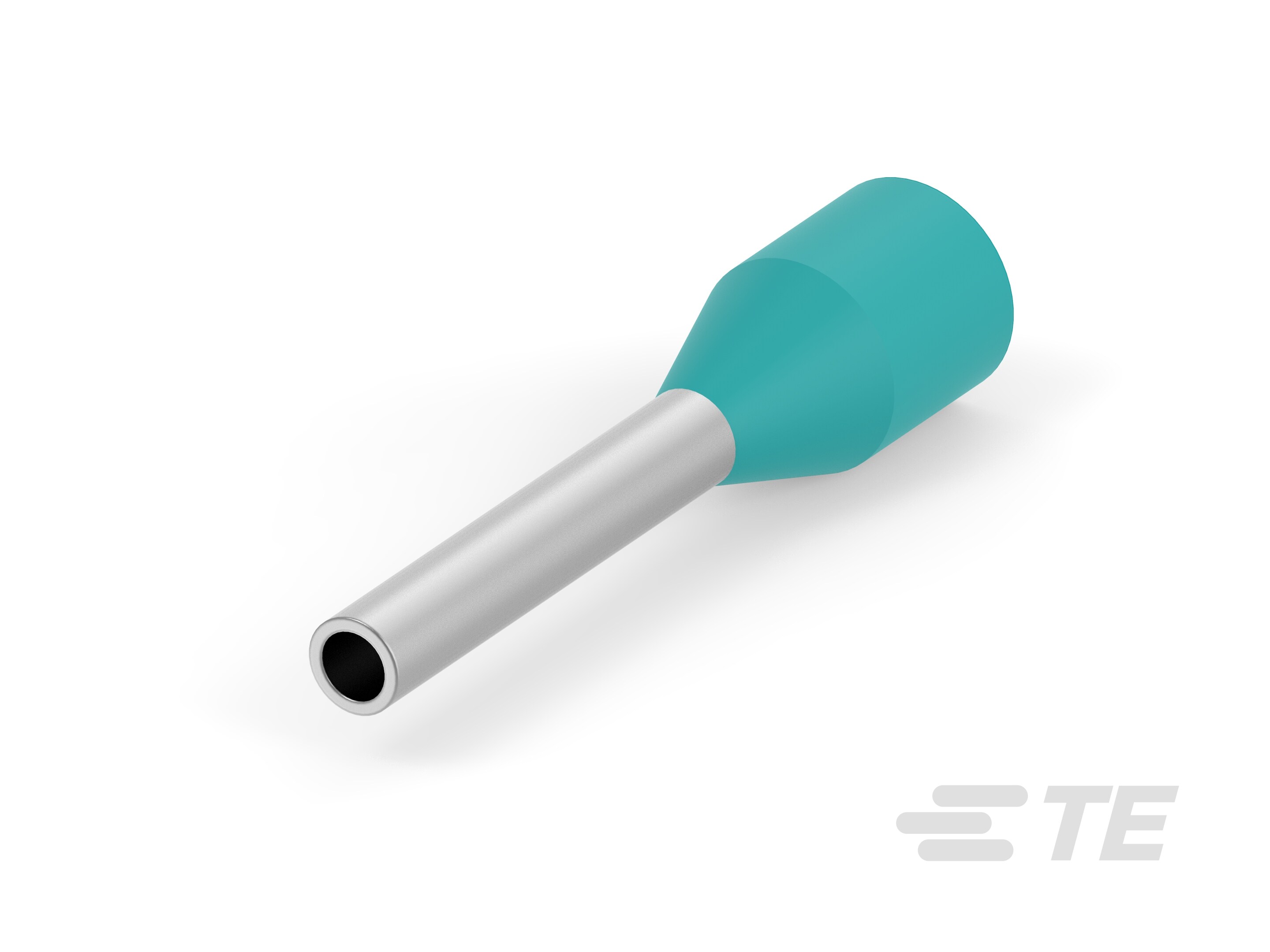

• Crimp Wire Terminal Type : Ferrule

• Barrel Type : Closed

• Terminal Plating Material : Tin

• Terminal Orientation : Straight

• Contact Mating Area Length : 6 mm [ .234 in ]

• Compatible Insulation Diameter Range : 1.9 mm [ .07 in ]

• Wire Size (AWG): 22

• Wire Size (mm²): .3 – .4

• Wire Size (CMA): 642.4

• Barrel Inside Diameter : 2 mm [ .078 in ]

• Terminal Material Thickness : .15 mm [ .005 in ]

• Overall Product Length : 10 mm [ .4 in ]

• 2-Wire Size (AWG): 22

• 2-Wire Size (mm²): .34

• Strip Length : 8 mm [ .315 in ]

• Packaging Method : Box

• Packaging Quantity : 500

• Compatible With Wire & Cable Type : Discrete Wire

• Compatible With Discrete Wire Type : Stranded

• Sealable : No

• Insulation Option : Partially Insulated

• Operating Temperature Range : 105 °C [ 221 °F ]

• Wire Insulation Support : Without

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant
