966066-5

Active

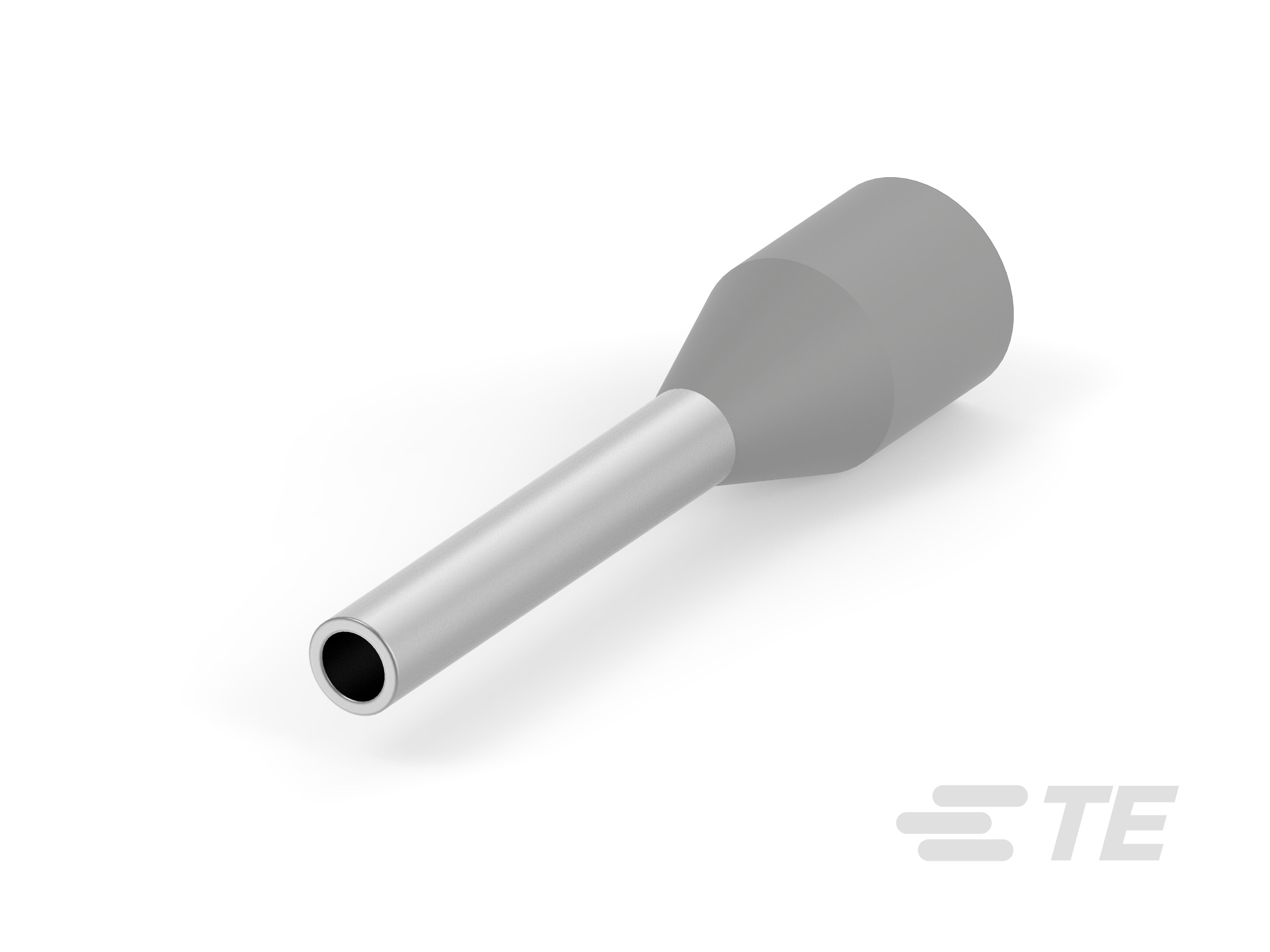

Ferrule, 26 AWG Wire Size, .12 – .15 mm² Wire Size, 278 CMA Wire Size, 1.6 mm [.06 in] Barrel Inside Diameter, Crimp Wire Pins, Tabs & Ferrules

966066-5

Active

Ferrule, 26 AWG Wire Size, .12 – .15 mm² Wire Size, 278 CMA Wire Size, 1.6 mm [.06 in] Barrel Inside Diameter, Crimp Wire Pins, Tabs & Ferrules

TE Internal #: 966066-5
TE Internal Description: FER,WIRE,PL SLV,.14/26,L6,GREY,LP

Crimp Wire Terminal Type : Ferrule
Compatible Insulation Diameter Range : 1.5 mm [ .05 in ]
Wire Size (AWG): 26
Wire Size (mm²): .12 – .15
Wire Size (CMA): 278

See All Features

More Less

Get Free Samples
Compatible Parts & Tooling

Documents

Product Drawings

WIRE FERRULE WITH PLASTIC SLEEVE, SINGLE CONDUCTOR, LOOSE PIECE ENG_CD_966066_C8.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Contact Features

Crimp Wire Terminal Type : Ferrule
Barrel Type : Closed
Terminal Plating Material : Tin
Terminal Orientation : Straight
Contact Mating Area Length : 6 mm [ .234 in ]

Dimensions

Compatible Insulation Diameter Range : 1.5 mm [ .05 in ]
Wire Size (AWG): 26
Wire Size (mm²): .12 – .15
Wire Size (CMA): 278
Barrel Inside Diameter : 1.6 mm [ .06 in ]
Terminal Material Thickness : .15 mm [ .005 in ]
Overall Product Length : 10 mm [ .4 in ]
2-Wire Size (AWG): 26
2-Wire Size (mm²): .14
Strip Length : 8 mm [ .315 in ]

Packaging Features

Packaging Method : Box
Packaging Quantity : 500

Configuration Features

Compatible With Wire & Cable Type : Discrete Wire

Product Type Features

Compatible With Discrete Wire Type : Stranded
Sealable : No

Usage Conditions

Insulation Option : Partially Insulated
Operating Temperature Range : 105 °C [ 221 °F ]

Mechanical Attachment

Wire Insulation Support : Without

Other

EU RoHS Compliance : Compliant
EU ELV Compliance : Compliant

Body Features

Primary Product Color : Gray
