Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

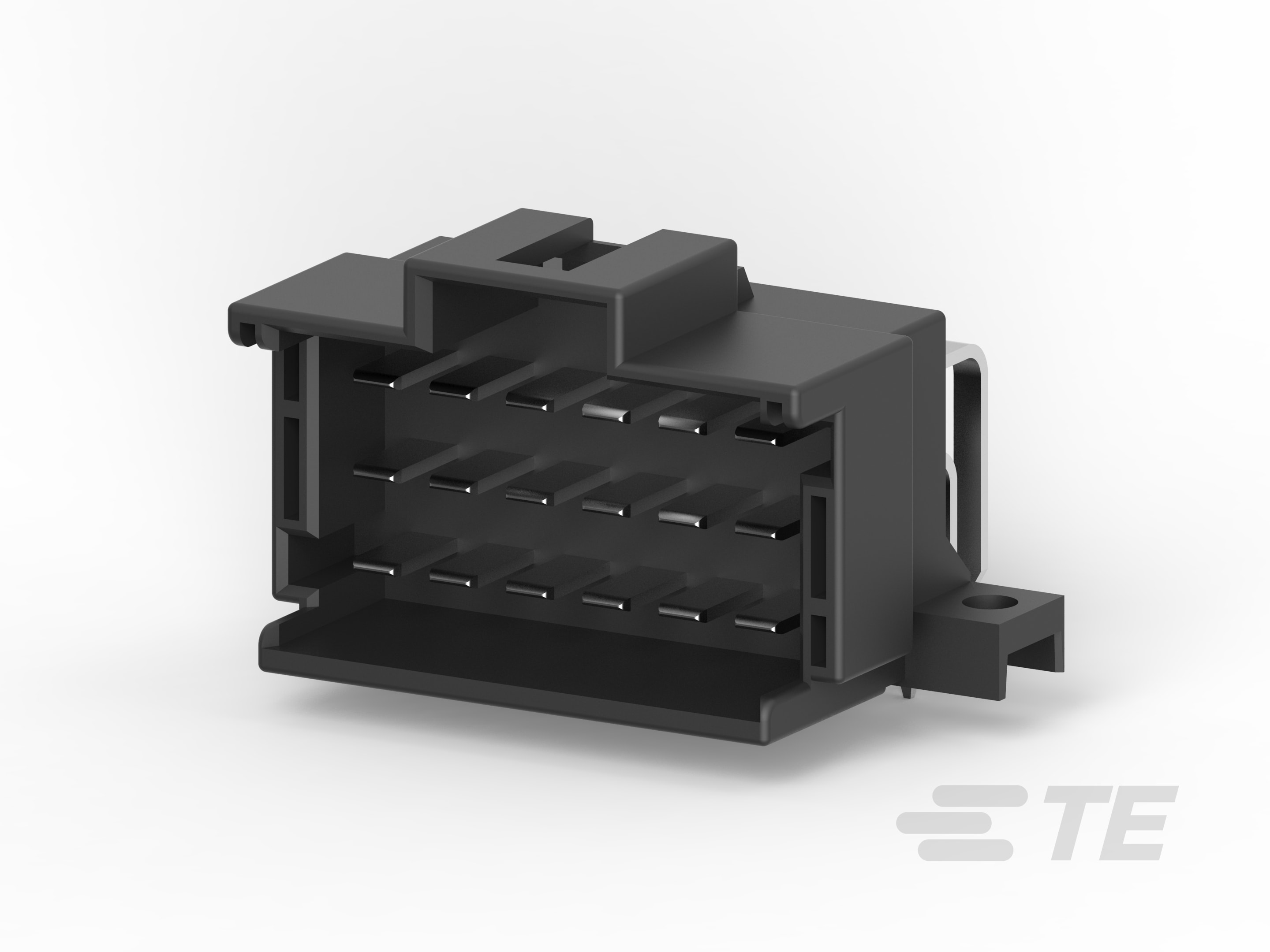

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Signal Positions : 18

• PCB Mount Orientation : Horizontal

• Number of Positions : 18

• Number of Rows : 3

• Mating Tab Thickness : .8 mm [ .031 in ]

• Mating Tab Width : 2.8 mm [ .11 in ]

• Contact Size : 3mm

• Contact Mating Area Plating Material : Tin

• Contact Type : Tab

• PCB Mount Retention Type : Solder Tail

• Mating Retention : With

• Mounting Holes : With

• Mating Retention Type : Locking Interface

• Panel Mount Feature : With

• PCB Mount Retention : Without

• PCB Mount Alignment : Without

• Connector Mounting Type : Panel Mount

• Mating Alignment : With

• Shielded : No

• Circuit Application : Signal

• Connector & Keying Code : A

• Primary Product Color : Black

• Operating Temperature (Max) (°C): 80, 90, 100, 85, 65, 75, 70

• Operating Temperature (Max) (°F): 212

• Operating Temperature Range : -30 – 100 °C [ -22 – 212 °F ]

• Packaging Quantity : 112

• Packaging Method : Tray

• Connector Length : 46 mm [ 1.811 in ]

• Profile Height from PCB : 26.2 mm [ 1.031 in ]

• Connector Width : 20.3 mm [ .791 in ]

• Nominal Voltage Architecture (V): 24, 12

• Operating Voltage (VDC): 24

• Termination Method to PCB : Through Hole - Solder

• Centerline (Pitch) : 3.5 mm [ .138 in ]

• UL Flammability Rating : UL 94HB
