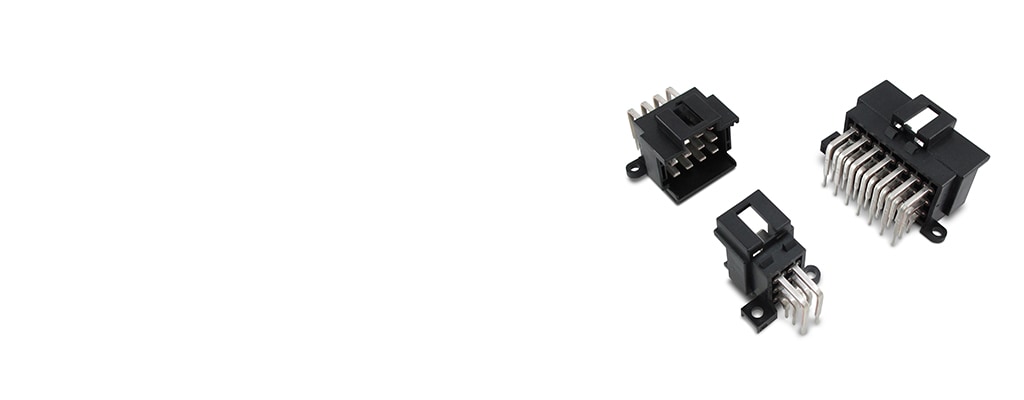

AMP MCP Unsealed Headers

AMP MCP Unsealed Headers-CAT-M4599-H342
  • AMP
|
  • AMP MCP Connector System
The AMP MCP Unsealed Headers provide reliable interconnection solutions for vehicles. They feature 6 to 36 cavities, accept AMP MCP 2.8 and 1.5K contacts, and can carry up to 40 amps. Available with straight or 90° pins, they use contact technologies like AMP MCP, PCON, and MCON, offering flexible configurations from 1 to 48 positions. Key features include flame-retardant materials, integrated secondary locking, and color-coded polarization to help prevent mismatches. Ideal for automotive, agricultural, construction, and commercial vehicles, these headers enabling high performance and safety.
More Less

Product Features

  • PCB Connector Assembly Type : PCB Mount Header

  • PCB Mount Orientation : Vertical, Horizontal, Right Angle

  • Connector System : Wire-to-Board

  • Number of Positions : 12, 154, 21, 6, 15, 18, 9, 36

  • Number of Rows : 4, 3

Available from

LADD Inc
Overview

Key Benefits:

AMP MCP Unsealed Headers

  • High Current Capacity: Capable of carrying up to 40 amps, suitable for high-power applications.
  • Design Flexibility: Available in configurations ranging from 1 to 48 positions, with 6 to 36 cavities for versatile design options.
  • Multiple Contact Types: Accepts AMP MCP 2.8 and 1.5K contacts, offering adaptability to different application needs.
  • Orientation Options: Comes with straight or 90° pins, providing flexibility in design and installation.
  • Enhanced Security: Features integrated secondary locking mechanisms that enable secure contact alignment and prevent terminal back out.
  • Mismatch Prevention: Polarization and color coding options help prevent incorrect mating, enhancing connection reliability.
  • Vibration Resistance: Designed to withstand vibration, making it ideal for use in environments subject to mechanical stress.
  • Flame Retardant Materials: Utilizes materials compliant with UL 94 V-0 standards for added safety and robustness.
  • Reduced Mating Force: A new monoblock connector design with a lever reduces the effort required to mate connectors, improving ease of use.
  • Versatile Applications: Suitable for various applications including wire-to-wire, wire-to-board, battery boxes, and power distribution units in automotive, agricultural, construction, and commercial vehicles.
AMP MCP headers are suited for high vibration PCB applications.

Key Features:

AMP MCP Unsealed Headers

Feature
Connector Type
 Rectangular, unsealed headers
Contact Types Accepts AMP MCP 2.8 and 1.5K contacts
Current Capacity
 Capable of carrying up to 40 amps
Configurations
 Available with 6 to 36 cavities
Pin Orientation
 Options for straight or 90° pins
Position Flexibility Configurations from 1 to 48 positions
Secondary Locking Mechanisms Integrated secondary locking features for secure contact alignment
Polarization and Color Coding Up to 6 polarization options and various color keying to prevent mismatches
Material Options Flame retardant and reflow materials, compliant with UL 94 V-0 standards
Mating Force Reduction Monoblock connector design with lever to reduce mating force
Vibration Resistance Designed to withstand vibration for enhanced reliability
Operating Voltage Suitable for nominal voltages of 12V and 24V, with a maximum voltage rating of 36V
Temperature Range Operating temperature range from -40°C to 140°C
Housing and Color Options Available in black, brown, and purple
Mounting Options Includes PCB mount, panel mount, with or without mounting holes
Contact Plating Mating tab plating available in silver and tin
Usage Conditions Industries Served Suitable for wire-to-wire, wire-to-board, battery box, and power distribution applications
INFOGRAPHIC
Unsealed Interconnection System Infographic
CATALOG
Unsealed Interconnection System Catalog

Real-world Applications:

AMP MCP Unsealed Headers

AGRICULTURAL VEHICLES

  • Tractors and Harvesters: Provides reliable electrical connections in agricultural machinery, enabling consistent performance in harsh operating conditions.
  • Sprayers and Seeders: Used in various equipment to maintain secure electrical connections that withstand exposure to dust, moisture, and vibration.



CONSTRUCTION EQUIPMENT

  • Excavators and Loaders: Enables robust electrical connections in heavy-duty construction machinery, critical for safety and operational efficiency.
  • Cranes and Bulldozers: Applied in high-power connections where reliability under mechanical stress and vibration is essential.



COMMERCIAL VEHICLES

  • Trucks and Buses: Provides secure electrical connections for in-cabin and exterior systems, supporting reliable operation of lighting, control units, and other electronic systems.
  • Emergency Vehicles: Enables dependable connections in emergency vehicles where reliability and performance are critical for safety and effectiveness.



INDUSTRIAL APPLICATIONS

  • Power Distribution Units: Used in power distribution units to provide high current capacity and reliable performance in various industrial settings.
  • HVAC Systems: Enables reliable electrical connections in heating, ventilation, and air conditioning systems, critical for efficient operation in commercial and industrial buildings.

Other parts you may need

Unsealed Lock Position Assurance

Unsealed Locks Position Assurance
AMP MCP Unsealed Connector Housingse

AMP MCP Unsealed Connector Housings
AMP Carrier for Receptacle Inserts

AMP Carrier for Receptacle Inserts

Trust and Reliability

Discover our ruggedized connectors and terminal portfolio designed for long-lasting service, even under severe conditions.

Unsealed Interconnection System

Product Group

Unsealed Interconnection System

Unsealed Interconnection System ensures complete flexibility with the option to choose between 1-48 position connectors
FAQ

Frequently Asked Questions

Q:   How can mismatching be prevented at the assembly line?

A:     With up to 6 polarization and color key mating configurations as well as mechanical codings that help prevent mismatch of receptacle and tab housings.

Q:    Which are typical applications for Unsealed Interconnection System Connectors?

A:     These connectors can be used in a vast variety of applications such as bulkheads, fuse & relay boxes, control units, wire-to-wire coupling, and in-cabin applications.



Read more FAQs about our Heavy Duty Sealed Connector Series

Features

Please review product documents or contact us for the latest agency approval information.

Electrical Characteristics

  • Operating Voltage (VDC) 24

  • Nominal Voltage Architecture (V) 12, 24

  • Voltage Rating (Max) (VDC) 36

Body Features

  • Connector & Keying Code  B, Z, A

  • Primary Product Color  Brown, Purple, Black

Operation/Application

  • Shielded  No

  • Circuit Application  Signal, Power & Signal, Power

Mechanical Attachment

  • Panel Mount Feature  With, Without

  • Mating Retention Type  Locking Interface

  • Mounting Holes  With, Without

  • PCB Mount Retention Type  Mounting Hole, Solder Tail

  • Mating Retention  With

  • PCB Mount Retention  Without, With

  • PCB Mount Alignment  With, Without

  • Connector Mounting Type  Panel Mount, Board Mount

  • Mating Alignment  With

Configuration Features

  • Number of Sections  2, 1

  • Number of Signal Positions  36, 15, 12, 21, 6, 154, 18, 9

  • PCB Mount Orientation  Vertical, Horizontal, Right Angle

  • Number of Positions  12, 154, 21, 6, 15, 18, 9, 36

  • Number of Rows  4, 3

Product Type Features

  • Mixed & Hybrid Header  Yes, No

  • Connector Shape  Rectangular

  • PCB Connector Assembly Type  PCB Mount Header

  • Connector System  Wire-to-Board

  • Header Type  Fully Shrouded

  • Sealable  Yes, No

  • Connector & Contact Terminates To  Printed Circuit Board

Contact Features

  • Mating Tab Width (mm) 1.5, 2.8, 5.8, .63, 3

  • Mating Tab Width (in) .118, .228, .059, .024, .11

  • Mating Tab Thickness (mm) .8, .64, .6, .63

  • Mating Tab Thickness (in) .025, .024, .023, .031

  • Contact Size  1.5mm, .63mm, 3mm, 2.8mm

  • Contact Mating Area Plating Material  Tin (Sn), Tin, Silver (Ag)

  • Contact Type  Tab

Dimensions

  • Connector Length (mm) 149.5, 26, 41, 46, 37.7, 36, 51, 31

  • Connector Length (in) 1.417, 1.48, 1.614, 1.221, 2.008, 5.22, 1.811, 1.024

  • Profile Height from PCB (mm) 20.7, 29, 26.2

  • Profile Height from PCB (in) 1.031, 1.14, .815

  • Connector Width (mm) 31, 61.8, 20.3

  • Connector Width (in) 2.43, .791, 1.22

  • PCB Thickness (Recommended) (mm) 1.57, 1.6

  • PCB Thickness (Recommended) (in) .063, .062

Usage Conditions

  • Operating Temperature (Max) (°C) 70, 140, 80, 85, 100, 65, 120, 130, 90, 75

  • Operating Temperature (Max) (°F) 248, 284, 212, 266

  • Operating Temperature Range (°C) -40 – 140, -30 – 100, -40 – 130, -40 – 120

  • Operating Temperature Range (°F) -40 – 284, -40 – 266, -22 – 212, -40 – 248

Packaging Features

  • Packaging Quantity  100, 112, 6, 168, 450

  • Packaging Method  Carton, Tray

Industry Standards

  • IP Rating  IPX9K, IP30

  • UL Flammability Rating  UL 94V-0, UL 94HB

Termination Features

  • Termination Method to PCB  Through Hole - Solder

Housing Features

  • Centerline (Pitch) (mm) 2.5, 3.5, 4, 5.2, 5, 3

  • Centerline (Pitch) (in) .098, .205, .157, .118, .138, .197

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-M4599-H342
