967633-1

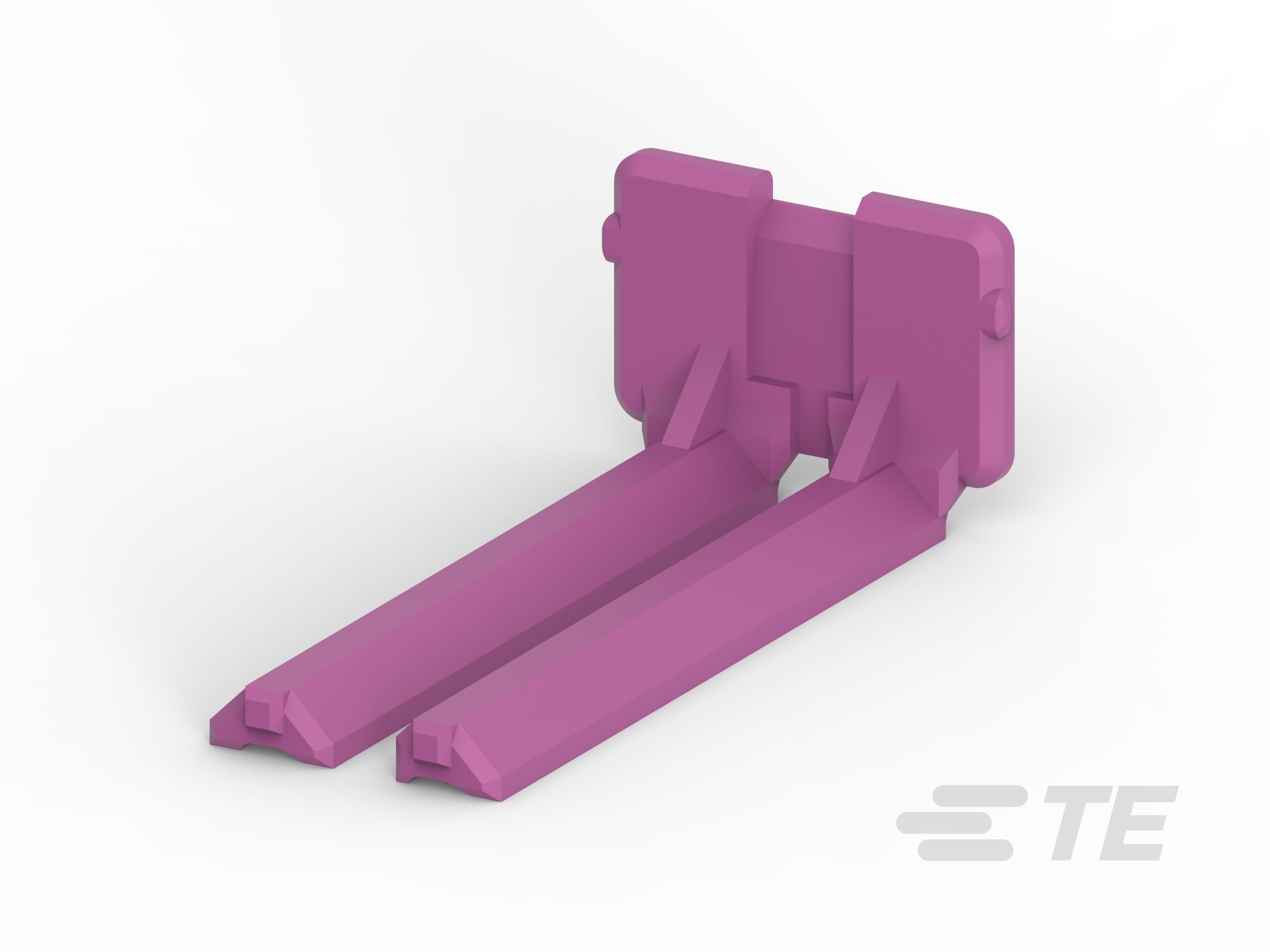

Secondary Lock, Violet, PBT GF, -40 – 140 °C [-40 – 284 °F], Timer Connector System, Automotive Connector Locks & Position Assurance
967633-1
Secondary Lock, Violet, PBT GF, -40 – 140 °C [-40 – 284 °F], Timer Connector System, Automotive Connector Locks & Position Assurance
-
- AMP
- Timer Connector System
- TE Internal #: 967633-1
- TE Internal Description: 2. KONT-SICHERUNG 15P
- All Unsealed Locks and Position Assurance (9)
-
Packaging Method : Carton
-
Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
-
Primary Product Color : Violet
-
Primary Product Material : PBT GF
-
Connector & Contact Retention Accessory Type : Secondary Lock
