Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

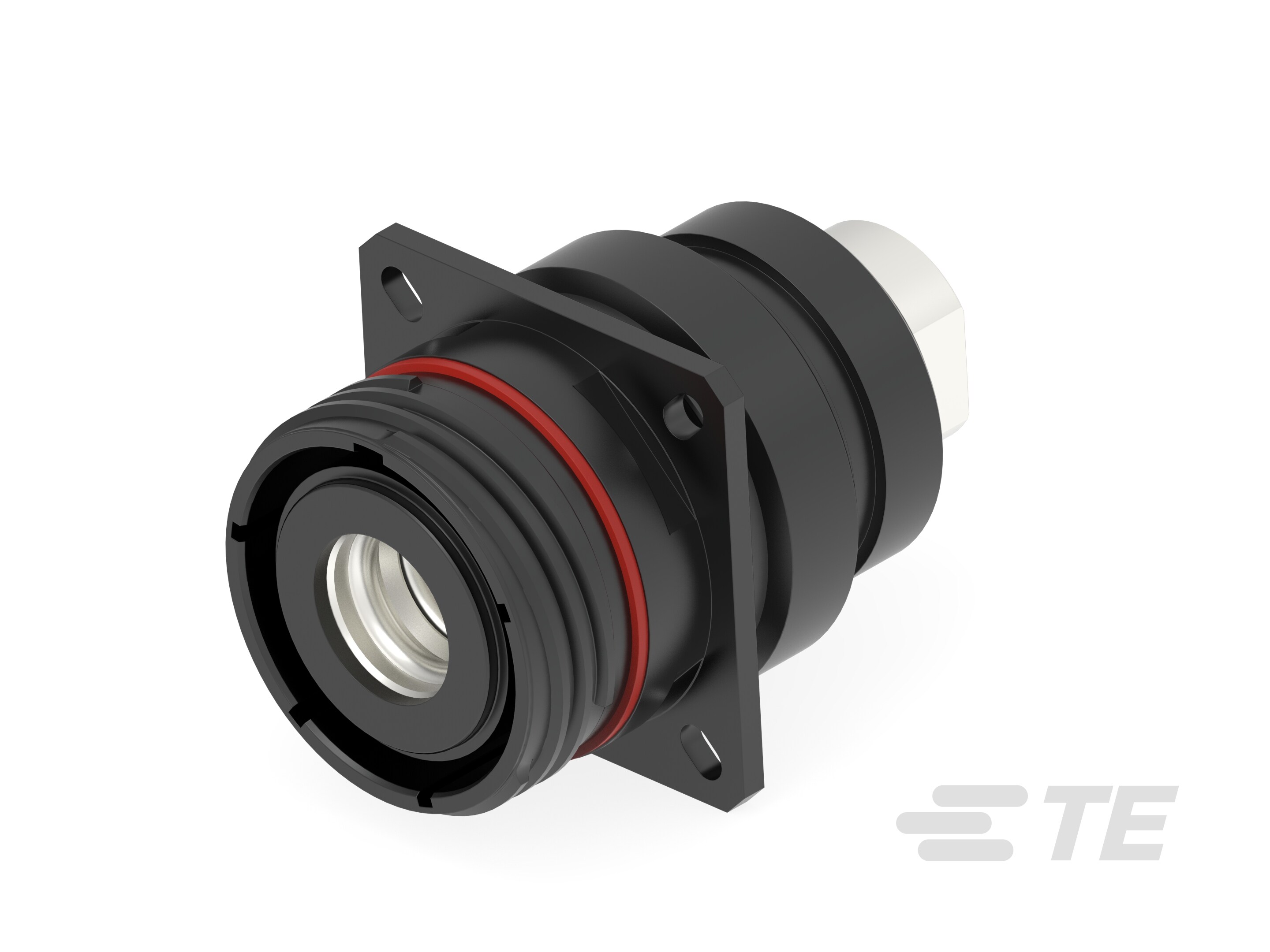

• Assembly Type : Electrical Connector

• Connector Product Type : Connector Assembly

• Circular Connector Shell Type : Metal-Shell

• Assembly Requirement : Factory Assembled

• Connector System : Cable-to-Cable

• Sealable : Yes

• Connector & Contact Terminates To : Wire & Cable

• Circular Connector Type : Receptacle

• Shell Type : Square Flange

• Durability Rating (Cycles): 500

• Circuit Application : Power

• Shielded : Yes

• Panel Mount Feature Type : Square Flange

• Mating Retention Type : Threaded

• Connector Mounting Type : Panel Mount

• Polarization Code : N

• Mating Alignment Type : Keyed

• Environmental Protection : IP68

• Shell Plating Material : Black Zinc Nickel

• Shell Base Material : Aluminum Alloy

• Circular Connector Insulation Material Type : Polyphenylene Sulfide

• Termination Method to Wire & Cable : Crimp (Standard)

• Assembly Length (mm): 58.8

• Operating Voltage (VDC): 1410

• Operating Voltage (VAC): 1000

• Number of Positions : 1

• Number of Power Positions : 1

• Number of Signal Positions : 0

• Contacts Preloaded : Yes

• Contact Current Rating (Max) (A): 600

• Circular Connector Contact Type : Socket

• Centerline (Pitch) : 0 mm [ 0 in ]

• Circular Connector Shell Size : 21

• Operating Temperature Range : -65 – 175 °C [ -85 – 347 °F ]
