ANT-868-WRT-MMCX

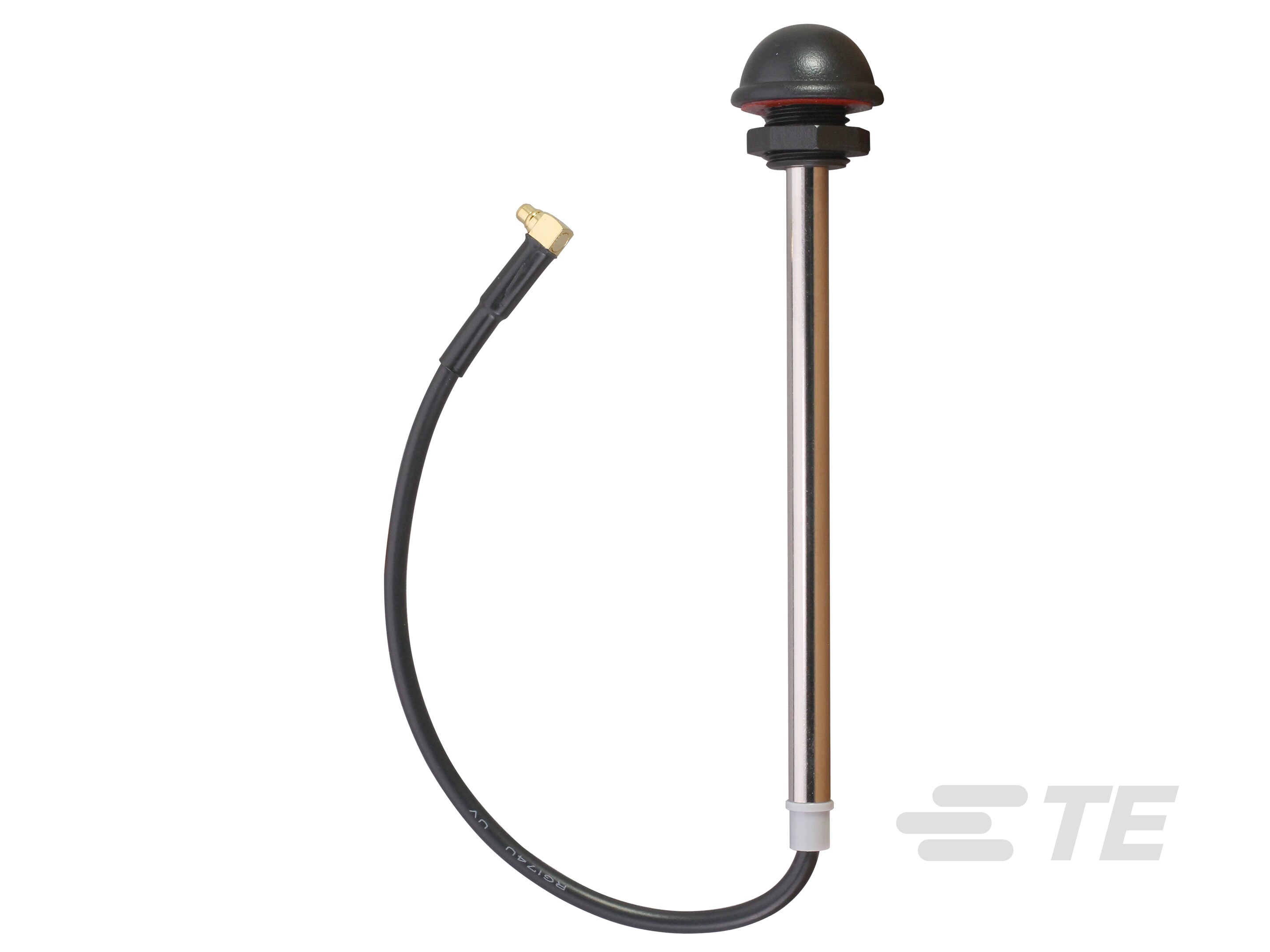

Dome/Puck Antenna, Single Band, LPWAN / LoRaWAN, External Mount, Stud/Screw/Lug Mount, MMCX, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain
ANT-868-WRT-MMCX
Dome/Puck Antenna, Single Band, LPWAN / LoRaWAN, External Mount, Stud/Screw/Lug Mount, MMCX, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain
- TE Internal #: ANT-868-WRT-MMCX
- TE Internal Description: Antenna Dome R-Angle 868MHz RG174 MMCX
-
Antenna Type : Dome/Puck
-
Band Type : Single Band
-
Primary Application : LoRaWAN, LPWAN
-
Wireless Application : LoRaWAN, LPWAN, Wi-Fi
-
Mounting Location : External
Documents
Product Drawings
- ANTENNA PURCHASED ASSEMBLY WRT VAR END CONN AND PACK ENG_CD_C-ANT-868-WRT-MMCX-LLL_D.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_ANT-868-WRT-MMCX_A.pdf 3D
- Customer View Model ENG_CVM_CVM_ANT-868-WRT-MMCX_A.2d_dxf.zip English
- ENG_CVM_CVM_ANT-868-WRT-MMCX_A.3d_igs.zip English
- ENG_CVM_CVM_ANT-868-WRT-MMCX_A.3d_stp.zip English
Datasheets & Catalog Pages
- 868 MHz External Panel-Mount Antenna ENG_DS_ANT-868-WRT-ccc_A.pdf English
