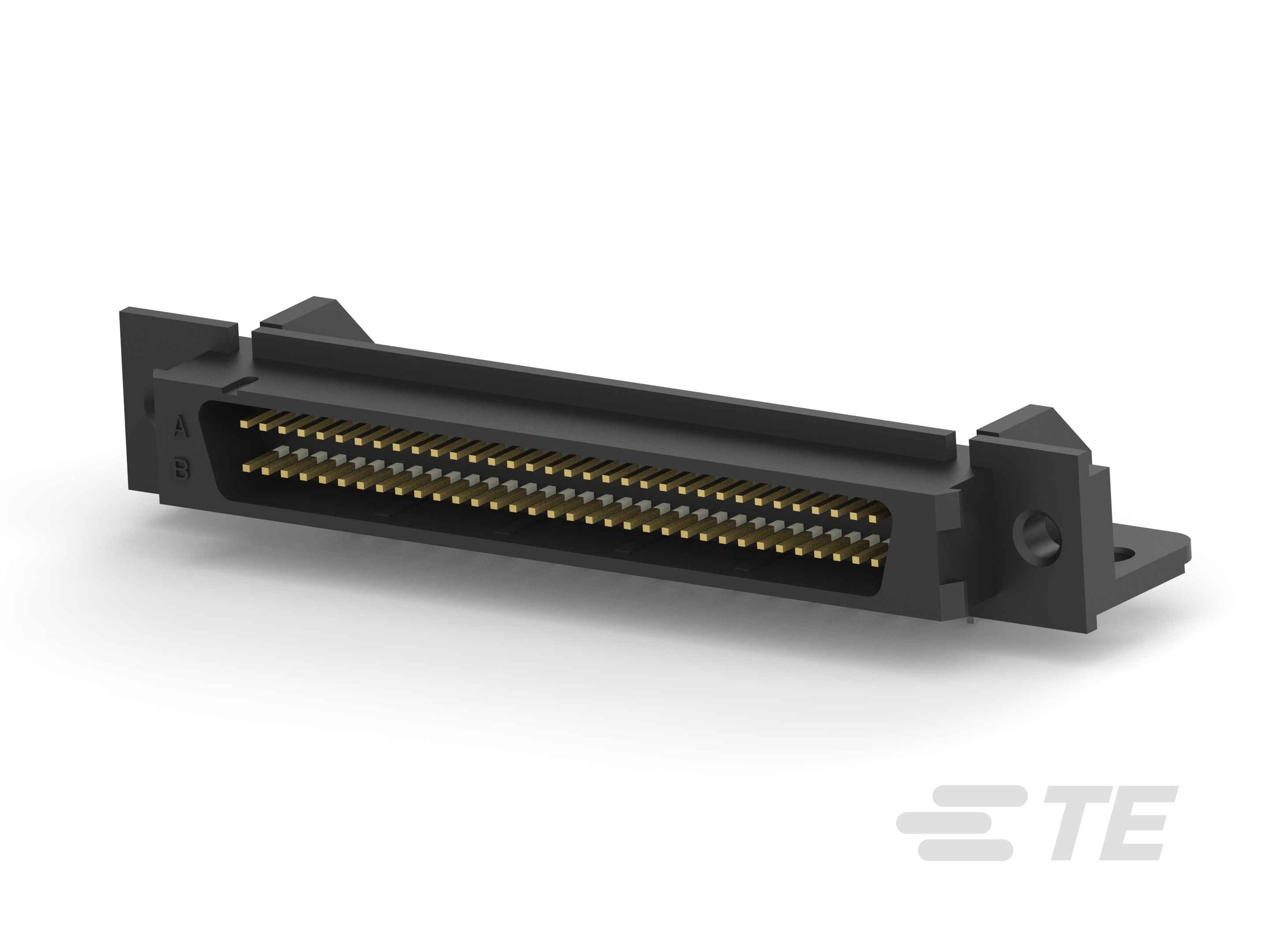

D-Sub Plug Assembly: Standard, Right Angle, 1.27mm

D-Sub Plug Assembly: Standard, Right Angle, 1.27mm-CAT-022-DPARA127
PCB D-Sub AMPLIMITE plug assembly with standard connector profile, having a centerline pitch of 1.27mm and right angle PCB mount orientation. Used for signal circuit application and has an operating temperature range of -55 – 105 DEGC.
More Less

Product Features

  • Connector & Housing Type : Plug

  • Connector System : Board-to-Board, Cable-to-Board

  • Number of Positions : 100, 20, 68, 48, 96, 50

  • Centerline (Pitch) : 1.27 mm [ .05 in ]

  • Number of Rows : 2, 4

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Tray, Box & Tube, Tube

  • Packaging Quantity  10, 4, 6, 9

Product Type Features

  • Shell Material Configuration  All Plastic, Full Metal Shell

  • Connector & Housing Type  Plug

  • Connector System  Board-to-Board, Cable-to-Board

  • Connector & Contact Terminates To  Printed Circuit Board

Body Features

  • Shell Plating Material  Tin over Copper, Nickel over Copper

  • Shield Plating Material  Nickel over Copper

  • Primary Product Color  Black

  • Assembly Process Feature Material  Brass

  • Shield Material  Zinc

  • Connector Profile  Standard

Mechanical Attachment

  • PCB Mount Alignment  Without

  • Mounting Feature Plating Material  Nickel over Copper

  • Mating Alignment Type  Integral with mating surface

  • Mounting Feature Material  Zinc

  • Mounting Hole Diameter  2.77 mm [ .109 in ]

  • Mating Alignment  Without, With

  • Mounting Hole Diameter (mm) 2.77

  • Mounting Hole Diameter (in) .109

  • PCB Mount Retention  Without, With

  • PCB Mount Retention Type  Retention Solder Tails, Mounting Hole, Boardlock, Retention Leg

  • Mating Retention  With, Without

  • Mating Retention Type  Latches, Threaded Insert, 4-40 UNC

  • Connector Mounting Type  Board Mount

Operation/Application

  • Shielded  Yes, No

  • Circuit Application  Signal

Contact Features

  • Contact Mating Area Plating Material Thickness (µin) 30

  • Contact Options  Installed

  • Contact Base Material  Phosphor Bronze

  • PCB Contact Termination Area Plating Material  Tin-Lead, Tin over Nickel, Tin, Tin-Lead over Nickel

  • Contact Underplating Material  Palladium Nickel

  • Contact Mating Area Plating Material  Gold or Gold Flash, Gold, Gold Flash

  • Contact Shape & Form  Rectangular, Square, Round

  • Contact Current Rating (Max) (A) 1

Housing Features

  • Housing Material  PBT, Polyester, Polyester LCP, Thermoplastic

  • Shell Material  Steel, Zinc Die Cast, Zinc

  • Centerline (Pitch)  1.27 mm [ .05 in ]

Termination Features

  • Square Termination Post & Tail Dimension (mm) .4, .38

  • Square Termination Post & Tail Dimension (in) .015, .016

  • Rectangular Termination Post & Tail Width  .45 mm [ .017 in ]

  • Termination Post & Tail Length (mm) 3.6, 2.85, 3.18, 2.9, 2.84, 3.1

  • Termination Post & Tail Length (in) .114, .112, .142, .125, .122

  • Rectangular Termination Post & Tail Thickness  .4 mm [ .015 in ]

  • Termination Method to PCB  Through Hole - Solder

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Compatible With Approved Standards Products  UL E28476, LR-86179-1

Dimensions

  • Panel Thickness (Recommended)  1.6 mm [ .06 in ]

  • Row-to-Row Spacing  2.54 mm [ .1 in ]

Configuration Features

  • Number of Positions  100, 20, 68, 48, 96, 50

  • Number of Rows  2, 4

  • PCB Mount Orientation  Right Angle

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Other

  • EU RoHS Compliance  Compliant, Not Compliant

  • EU ELV Compliance  Compliant, Compliant with Exemptions

Reference Number

  • TE Internal Number CAT-022-DPARA127
