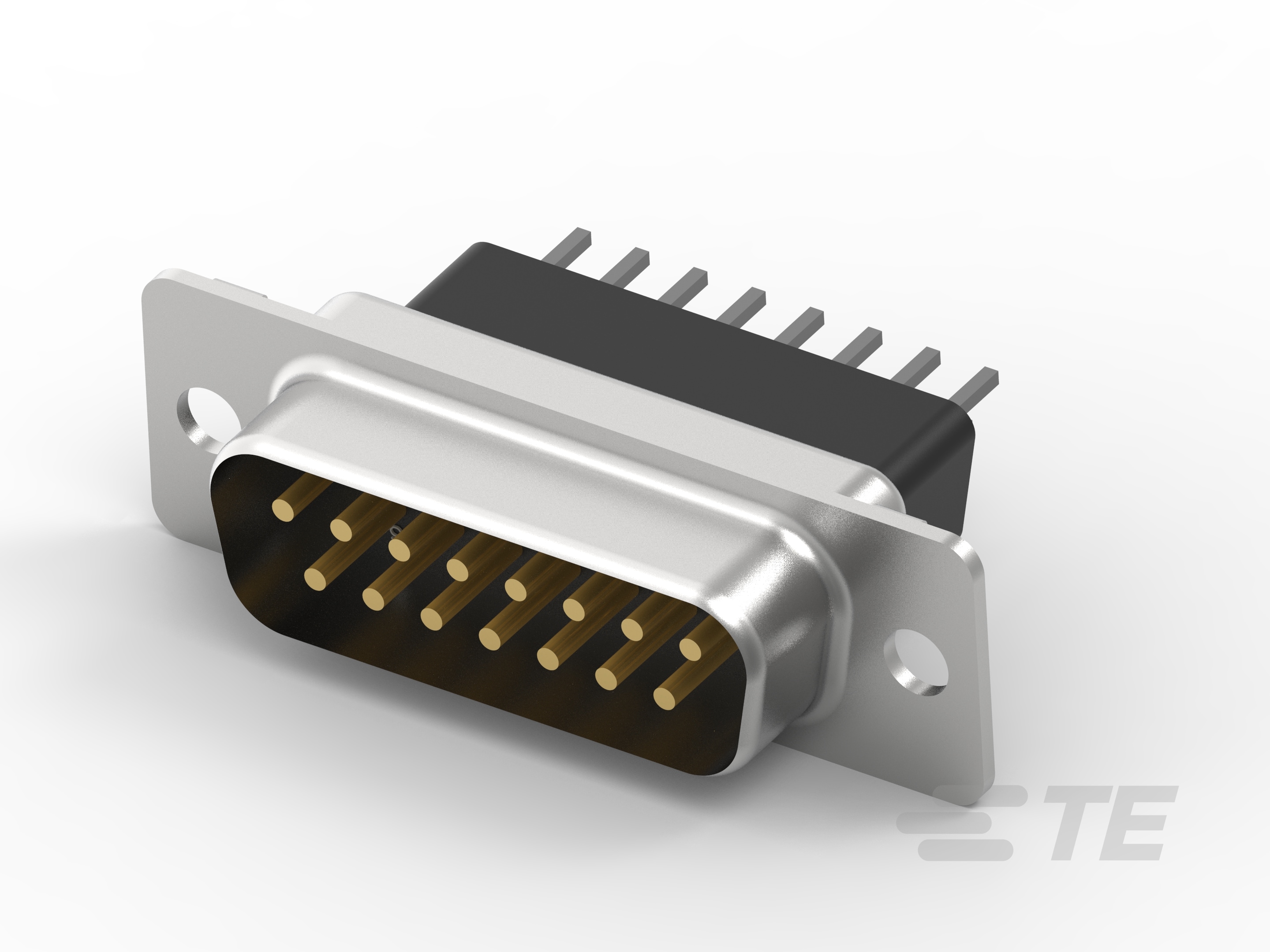

D-Sub Plug Assembly: Standard, Vertical, Shell Size 2, 2.74mm

D-Sub Plug Assembly: Standard, Vertical, Shell Size 2, 2.74mm-CAT-025-DPAVS2274
PCB D-Sub AMPLIMITE plug assembly with a shell size of 2. These parts have a centerline pitch of 2.74mm with vertical PCB mount orientation. Has an operating temperature range of -55 – 105 DEGC.
More Less

Product Features

  • Connector & Housing Type: Plug

  • Number of Positions: 15

  • Number of Rows: 2

  • Connector Shell Size: 2

  • PCB Mount Orientation: Vertical

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector & Housing Type  Plug

  • Connector System  Board-to-Board, Cable-to-Board, Wire-to-Board

  • Connector Shell Size  2

  • Connector & Contact Terminates To  Printed Circuit Board

  • Shell Material Configuration  All Plastic, Front Metal Shell, Full Metal Shell

  • Ground Feature Type  Grounding Indents, Grounding Straps

Configuration Features

  • Number of Positions  15

  • Number of Rows  2

  • PCB Mount Orientation  Vertical

Body Features

  • Primary Product Color  Black

  • Shell Plating Material  Tin, Tin over Copper, Zinc

  • Shield Material  Steel

  • Shield Plating Material  Tin

  • Connector Profile  High, Medium, Standard

  • Insert Material  Brass, Thermoplastic

  • Mating Retention Feature Material  Brass

  • Assembly Process Feature Material  Phosphor Bronze

  • Mating Feature Material  Brass, Zinc

  • Mating Feature Plating Material  Nickel over Copper Flash

Contact Features

  • Contact Base Material  Brass, Copper Alloy, Phosphor Bronze

  • PCB Contact Termination Area Plating Material  Tin, Tin-Lead

  • Contact Underplating Material  Nickel, Palladium Nickel

  • Contact Mating Area Plating Material  Gold, Gold Flash

  • Contact Mating Area Plating Material Thickness (µin) 30

  • Contact Shape & Form  Round, Square

  • Contact Current Rating (Max) (A) 1.5, 6

  • PCB Termination Area Plating Finish  Bright

  • Contact Options  Installed

Termination Features

  • Termination Method to PCB  Through Hole - Press-Fit, Through Hole - Solder

  • Termination Post & Tail Length (mm) 3.18, 3.2, 4.32, 4.78, 5.8

  • Termination Post & Tail Length (in) .125, .126, .17, .188, .228

  • Termination Post & Tail Diameter (mm) .6, .66

  • Termination Post & Tail Diameter (in) .023, .026

  • Rectangular Termination Post & Tail Width (mm) .45, .86

  • Rectangular Termination Post & Tail Width (in) .017, .034

  • Rectangular Termination Post & Tail Thickness (mm) .32, .63

  • Rectangular Termination Post & Tail Thickness (in) .012, .025

  • Square Termination Post & Tail Dimension  .63 mm [ .025 in ]

Mechanical Attachment

  • PCB Mount Alignment  With

  • Mounting Hole Diameter (mm) 3.05, 3.07, 3.1, 5

  • Mounting Hole Diameter (in) .12, .121

  • PCB Mount Retention  With, Without

  • PCB Mount Retention Type  4-40 Retention Insert, 4-40 Retention Screwlock, Action/Compliant Tail, Boardlock, Mounting Hole, Solder Tail

  • Mating Retention  With, Without

  • Mating Retention Type  Female Screwlocks, 4-40 UNC, Female Screwlocks, Fixed, Female Screwlocks, M3, Threaded Insert, 4-40 UNC, Threaded Insert, M3, Threaded Inserts, 4-40 UNC

  • Connector Mounting Type  Board Mount

  • Assembly Process Feature Plating Material  Tin

Housing Features

  • Housing Material  Glass-Filled Nylon, Glass-Filled PBT, Glass-Filled Polyester, Nylon, Nylon GF, PBT GF, PBTP GF, Polyester, Thermoplastic

  • Shell Material  Carbon Steel, Steel

  • Centerline (Pitch) (mm) 2.74, 2.77

  • Centerline (Pitch) (in) .108, .109

Dimensions

  • PCB Thickness (Recommended) (mm) 1.5, 1.57, 1.57 – 2.36, 1.6, 2.36, 2.36 – 3.18, 3.18

  • PCB Thickness (Recommended) (in) .059, .062, .062 – .093, .063, .093, .093 – .125, .125

  • Row-to-Row Spacing (mm) 2.84

  • Row-to-Row Spacing (in) .111, .112

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Shielded  No, Yes

  • Circuit Application  Signal

  • Durability Rating (Cycles) 200

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Compatible With Approved Standards Products  DIN 41652, UL E28476

Packaging Features

  • Packaging Method  Tray, Tube

  • Packaging Quantity  13, 45, 70, 104

Reference Number

  • TE Internal Number CAT-025-DPAVS2274
