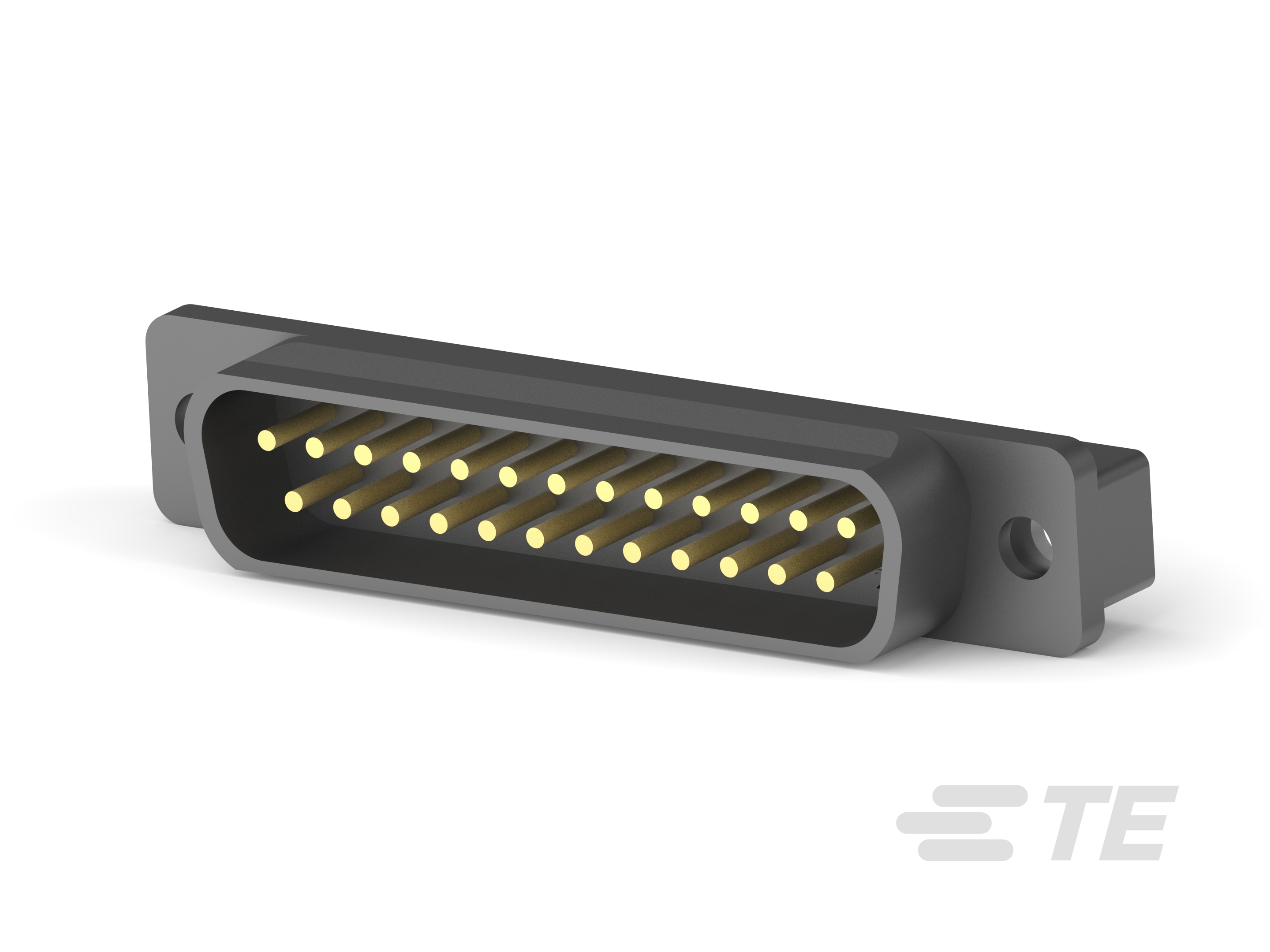

D-Sub Plug Assembly: Vertical, Shell Size 3, 2.74mm

Please review product documents or contact us for the latest agency approval information.

• Packaging Method  Tube, Tray

• Packaging Quantity  60, 30, 10, 13, 78

• Shell Plating Material  Zinc, Tin

• Shield Plating Material  Tin

• Shield Material  Steel

• Assembly Process Feature Material  Brass, Phosphor Bronze

• Mating Retention Feature Material  Brass

• Insert Material  Brass, Polyamide, GV, Thermoplastic

• Mating Feature Material  Brass, Zinc

• Primary Product Color  Black

• Mating Feature Plating Material  Nickel over Copper Flash

• Connector Profile  Standard, High

• PCB Mount Alignment  With

• Mounting Hole Diameter (mm) 3.05, 3.18, 3.07

• Mounting Hole Diameter (in) .12, .121, .125

• Mounting Hole Diameter (in) .12, .121, .125

• Assembly Process Feature Plating Material  Tin over Copper, Tin

• Mounting Hole Diameter (mm) 3.05, 3.18, 3.07

• PCB Mount Retention  Without, With

• PCB Mount Retention Type  4-40 Retention Screwlock, Boardlock, Solder Tail, Action/Compliant Tail, 4-40 Retention Insert, Mounting Hole

• Mating Retention  With, Without

• Mating Retention Type  Threaded Insert, 4-40 UNC, Threaded Inserts, Female Screwlocks, Fixed, Threaded Insert, M3, Insert Boardlocks, Clinch Nut, 4-40 UNC, Female Screwlocks, 4-40 UNC, Female Screwlocks, M3, Threaded Inserts, 4-40 UNC, 4-40 Screwlock

• Connector Mounting Type  Board Mount

• Durability Rating (Cycles) 200

• Shielded  Yes, No

• Circuit Application  Signal

• Termination Method to PCB  Through Hole - Solder, Through Hole - Press-Fit

• Square Termination Post & Tail Dimension  .63 mm [ .025 in ]

• Termination Post & Tail Diameter (mm) .66, .6

• Termination Post & Tail Diameter (in) .026, .023

• Rectangular Termination Post & Tail Thickness (mm) .63, .32

• Rectangular Termination Post & Tail Thickness (in) .012, .025

• Rectangular Termination Post & Tail Width (mm) .45, .86

• Rectangular Termination Post & Tail Width (in) .017, .034

• Termination Post & Tail Length (mm) 4.32, 3.18, 3.2, 5.8, 4.78

• Termination Post & Tail Length (in) .188, .125, .126, .17, .228

• Housing Material  PBTP GF, Polyester, Glass-Filled Nylon, Glass-Filled PBT, Nylon, Glass-Filled Polyester, Nylon GF, Thermoplastic, PBT GF

• Shell Material  Steel, Carbon Steel

• Centerline (Pitch) (mm) 2.74, 2.77

• Centerline (Pitch) (in) .108, .109

• Contact Mating Area Plating Material Thickness (µin) 30

• Contact Base Material  Phosphor Bronze, Copper Alloy, Brass

• PCB Termination Area Plating Finish  Bright

• Contact Options  Installed

• PCB Contact Termination Area Plating Material  Tin, Tin-Lead

• Contact Underplating Material  Palladium Nickel, Copper, Nickel

• Contact Mating Area Plating Material  Gold, Gold Flash

• Contact Shape & Form  Round, Square

• Contact Current Rating (Max) (A) 6, 1.5

• Ground Feature Type  Grounding Indents, Grounding Straps

• Shell Material Configuration  Front Metal Shell, All Plastic, Full Metal Shell

• Connector & Housing Type  Plug

• Connector System  Board-to-Board, Wire-to-Board, Cable-to-Board

• Connector Shell Size  3

• Connector & Contact Terminates To  Printed Circuit Board

• Compatible With Approved Standards Products  UL E28476, DIN 41652, UL E81956

• UL Flammability Rating  UL 94V-0

• PCB Thickness (Recommended) (mm) 1.57, 2.36, 1.5, 1.58 – 2.36, 2.36 – 3.18, 1.57 – 2.36, 1.6

• PCB Thickness (Recommended) (in) .062 – .093, .093, .059, .093 – .125, .063, .062

• Row-to-Row Spacing (mm) 2.84, 1.98

• Row-to-Row Spacing (in) .077, .112, .111

• Number of Positions  44, 25

• Number of Rows  2, 3

• PCB Mount Orientation  Vertical

• Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

• EU RoHS Compliance  Compliant, Compliant with Exemptions, Not Compliant

• EU ELV Compliance  Compliant with Exemptions, Compliant, Not Compliant
