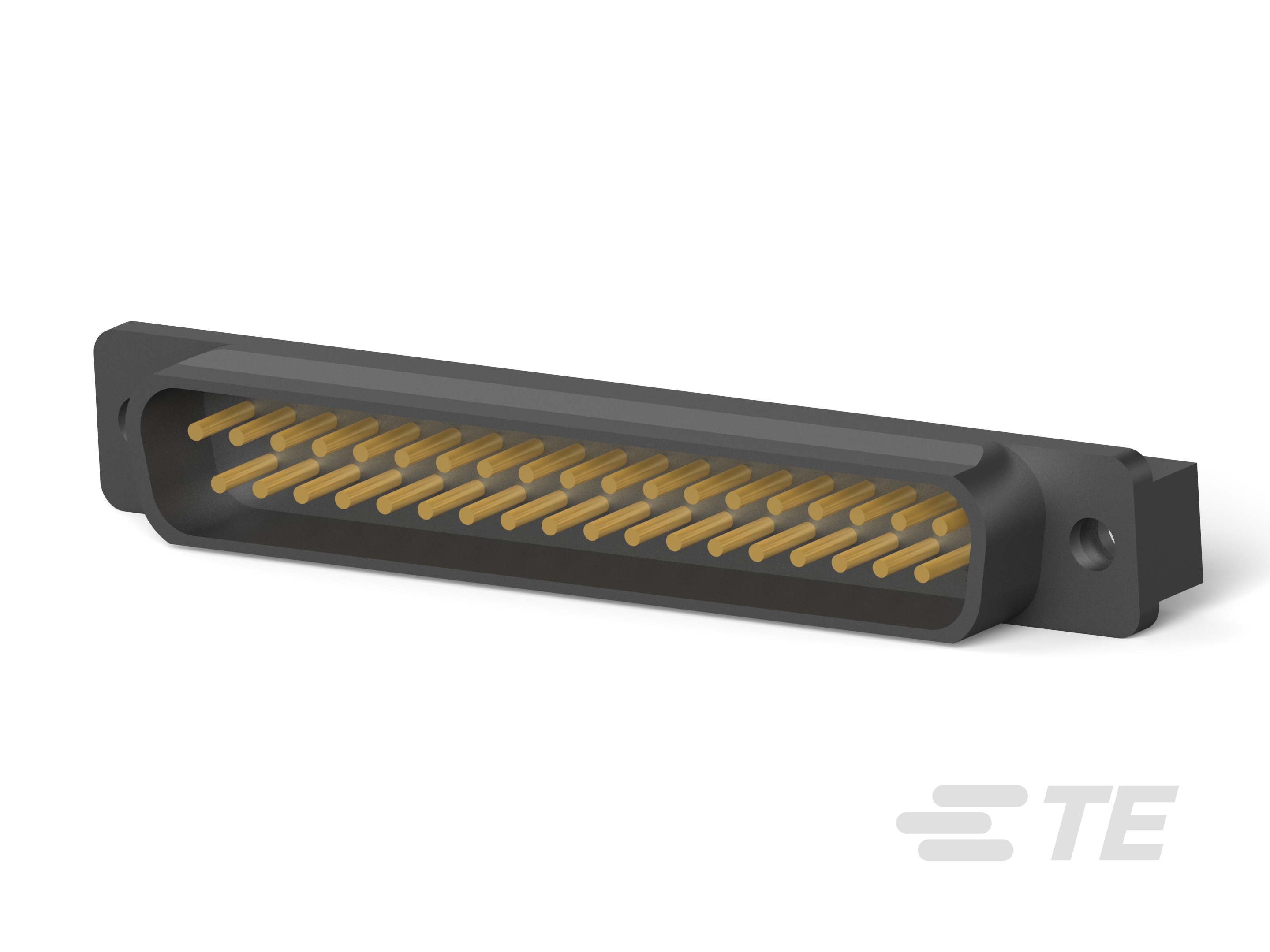

D-Sub Plug Assembly: Vertical, Shell Size 4, 2.74mm

D-Sub Plug Assembly: Vertical, Shell Size 4, 2.74mm-CAT-025-DPAVS4274
PCB D-Sub AMPLIMITE plug assembly with a shell size of 4. These parts have a centerline pitch of 2.74mm with vertical PCB mount orientation and an operating temperature range of -55 – 105 DEGC.
More Less

Product Features

  • Connector & Housing Type : Plug

  • Connector System : Board-to-Board, Wire-to-Board, Cable-to-Board

  • Number of Positions : 37

  • Centerline (Pitch) (mm): 2.74, 2.77

  • Centerline (Pitch) (in): .108, .109

  • Number of Rows : 2

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Tube, Tray

  • Packaging Quantity  25, 52, 7

Body Features

  • Shell Plating Material  Zinc, Tin, Tin over Copper

  • Mating Retention Feature Material  Brass

  • Shield Plating Material  Tin

  • Assembly Process Feature Material  Brass, Phosphor Bronze

  • Shield Material  Steel

  • Insert Material  Brass, Polyamide, GV, Thermoplastic

  • Mating Feature Material  Brass, Zinc

  • Primary Product Color  Black

  • Mating Feature Plating Material  Nickel over Copper Flash

  • Connector Profile  Standard, Medium, High

Mechanical Attachment

  • Mounting Hole Diameter (mm) 3.05, 3.07

  • Mounting Hole Diameter (in) .12, .121

  • Mounting Hole Diameter (in) .12, .121

  • Assembly Process Feature Plating Material  Tin

  • Mounting Hole Diameter (mm) 3.05, 3.07

  • PCB Mount Retention  Without, With

  • PCB Mount Retention Type  4-40 Retention Screwlock, Boardlock, Action/Compliant Tail, Mounting Hole

  • Mating Retention  With, Without

  • Mating Retention Type  Threaded Insert, 4-40 UNC, Female Screwlocks, Fixed, Female Screwlocks, 4-40 UNC, Female Screwlocks, M3, 4-40 Screwlock

  • Connector Mounting Type  Board Mount

Operation/Application

  • Durability Rating (Cycles) 200

  • Shielded  Yes, No

  • Circuit Application  Signal

Housing Features

  • Housing Material  Polyester, Polyester GF, Glass-Filled Polyester, Nylon GF, Thermoplastic, PBT GF

  • Shell Material  Steel, Carbon Steel

  • Centerline (Pitch) (mm) 2.74, 2.77

  • Centerline (Pitch) (in) .108, .109

Termination Features

  • Square Termination Post & Tail Dimension  .63 mm [ .025 in ]

  • Rectangular Termination Post & Tail Thickness (mm) .63, .32

  • Rectangular Termination Post & Tail Thickness (in) .012, .025

  • Termination Post & Tail Diameter (mm) .66, .6

  • Termination Post & Tail Diameter (in) .026, .023

  • Termination Method to PCB  Through Hole - Solder, Through Hole - Press-Fit

  • Rectangular Termination Post & Tail Width (mm) .45, .86

  • Rectangular Termination Post & Tail Width (in) .034, .017

  • Termination Post & Tail Length (mm) 4.32, 3.18, 3.2, 5.8, 4.78

  • Termination Post & Tail Length (in) .188, .125, .126, .17, .228

Contact Features

  • Contact Mating Area Plating Material Thickness (µin) 30

  • Contact Base Material  Phosphor Bronze, Copper Alloy, Brass

  • Contact Options  Installed

  • PCB Contact Termination Area Plating Material  Tin, Tin-Lead

  • Contact Underplating Material  Palladium Nickel, Nickel

  • Contact Mating Area Plating Material  Gold, Gold Flash

  • Contact Shape & Form  Round, Square

  • Contact Current Rating (Max) (A) 6, 1.5

Product Type Features

  • Ground Feature Type  Grounding Indents

  • Shell Material Configuration  Front Metal Shell, All Plastic, Full Metal Shell

  • Connector & Housing Type  Plug

  • Connector System  Board-to-Board, Wire-to-Board, Cable-to-Board

  • Connector Shell Size  4

  • Connector & Contact Terminates To  Printed Circuit Board

Industry Standards

  • Compatible With Approved Standards Products  UL E28476, DIN 41652, UL E81956

  • UL Flammability Rating  UL 94V-0

Dimensions

  • PCB Thickness (Recommended) (mm) 1.57, 3.18, 2.36, 2.36 – 3.18, 1.57 – 2.36, 1.6

  • PCB Thickness (Recommended) (in) .062 – .093, .093, .093 – .125, .063, .062, .125

  • Row-to-Row Spacing (mm) 2.84

  • Row-to-Row Spacing (in) .112, .111

Configuration Features

  • Number of Positions  37

  • Number of Rows  2

  • PCB Mount Orientation  Vertical

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Other

  • EU RoHS Compliance  Compliant, Compliant with Exemptions, Not Compliant

  • EU ELV Compliance  Compliant with Exemptions, Compliant, Not Compliant

Reference Number

  • TE Internal Number CAT-025-DPAVS4274
