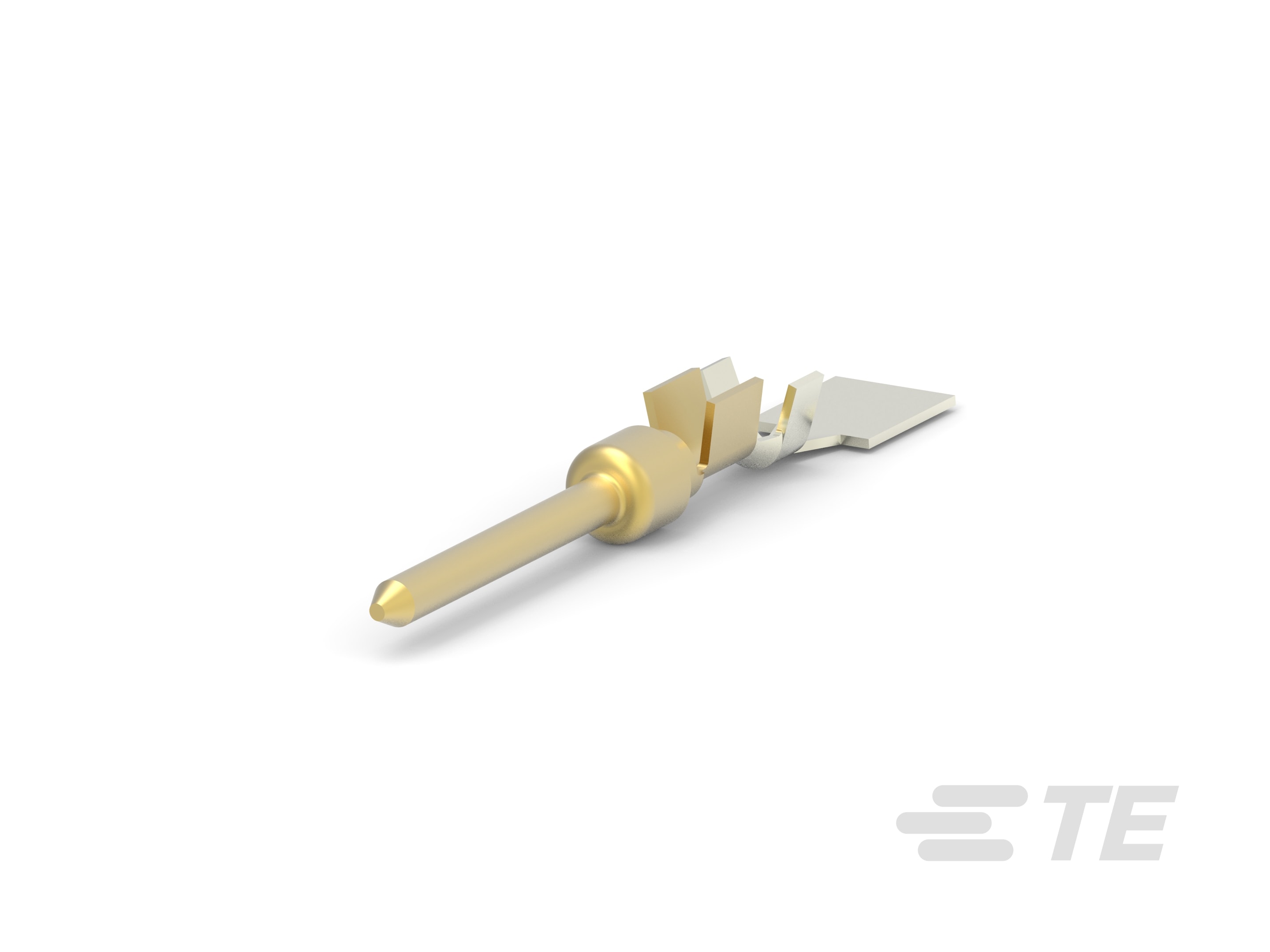

D-Sub Connector Contacts: Pin, Brass, Signal, Size 20

D-Sub Connector Contacts: Pin, Brass, Signal, Size 20-CAT-035-DCCPB20
D-Sub pin snap-in connector contact made of brass material, having a contact size of 20 terminates to wire and cable. Available in wire size range of 32 – 18 AWG and used for signal circuit applications.
More Less

Product Features

  • Contact Type : Pin

  • Contact Mating Area Plating Material : Gold Flash, Gold

  • Contact Retention Type Within Housing : Snap-In

  • Contact Size : Size 20

  • Wire Size (AWG): 28 – 24, 24 – 20, 22 – 18, 32 – 28, 26 – 22

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Strip/Reel, Box, Loose Piece, Reel, Strip, Small Reel

  • Packaging Quantity  12000, 100, 10000, 1000, 500, 12500

Termination Features

  • Termination Post & Tail Diameter (mm) 2.16

  • Termination Post & Tail Length (in) .39, .391

  • Termination Post & Tail Diameter (in) .085

  • Termination Method to Wire & Cable  Crimp

  • Product Terminates To  Wire & Cable

Mechanical Attachment

  • Wire Insulation Support  Without, With

  • Contact Retention Type Within Housing  Snap-In

Contact Features

  • Mating Pin Diameter (mm) 1.02

  • Contact Mating Area Plating Material Thickness (µm) .8, .76

  • Contact Mating Area Plating Material Thickness (µin) 50, 30, 100, 1

  • Mating Pin Diameter  1.02 mm [ .04 in ]

  • Contact Color Bands  Blue, Red, Yellow, Green

  • PCB Contact Termination Area Plating Material  Gold Flash, Gold, Tin

  • Contact Underplating Material  Nickel

  • Contact Type  Pin

  • Contact Mating Area Plating Material  Gold Flash, Gold

  • Contact Size  Size 20

  • Contact Base Material  Brass

  • Contact Current Rating (Max) (A) 3.1, 1.2, 2

Identification Marking

  • Contact Color Code  Black, Red, Green, Yellow, None, Blue

Dimensions

  • Compatible Insulation Diameter Range (mm) .76 – 1.02, 1.01 – 1.27, 1.27 – 1.52, .5 – 1.02

  • Compatible Insulation Diameter Range (in) .04 – .05, .02 – .04, .05 – .06, .03 – .04

  • Compatible Insulation Diameter Range (in) .04 – .05, .02 – .04, .05 – .06, .03 – .04

  • Wire Size (AWG) 28 – 24, 24 – 20, 22 – 18, 32 – 28, 26 – 22

  • Wire Size (mm²) .032 – .09, .4 – .8, .08 – .22, .2 – .6, .15 – .4, .2 – .56, .08 – .2

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Circuit Application  Signal

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-035-DCCPB20
