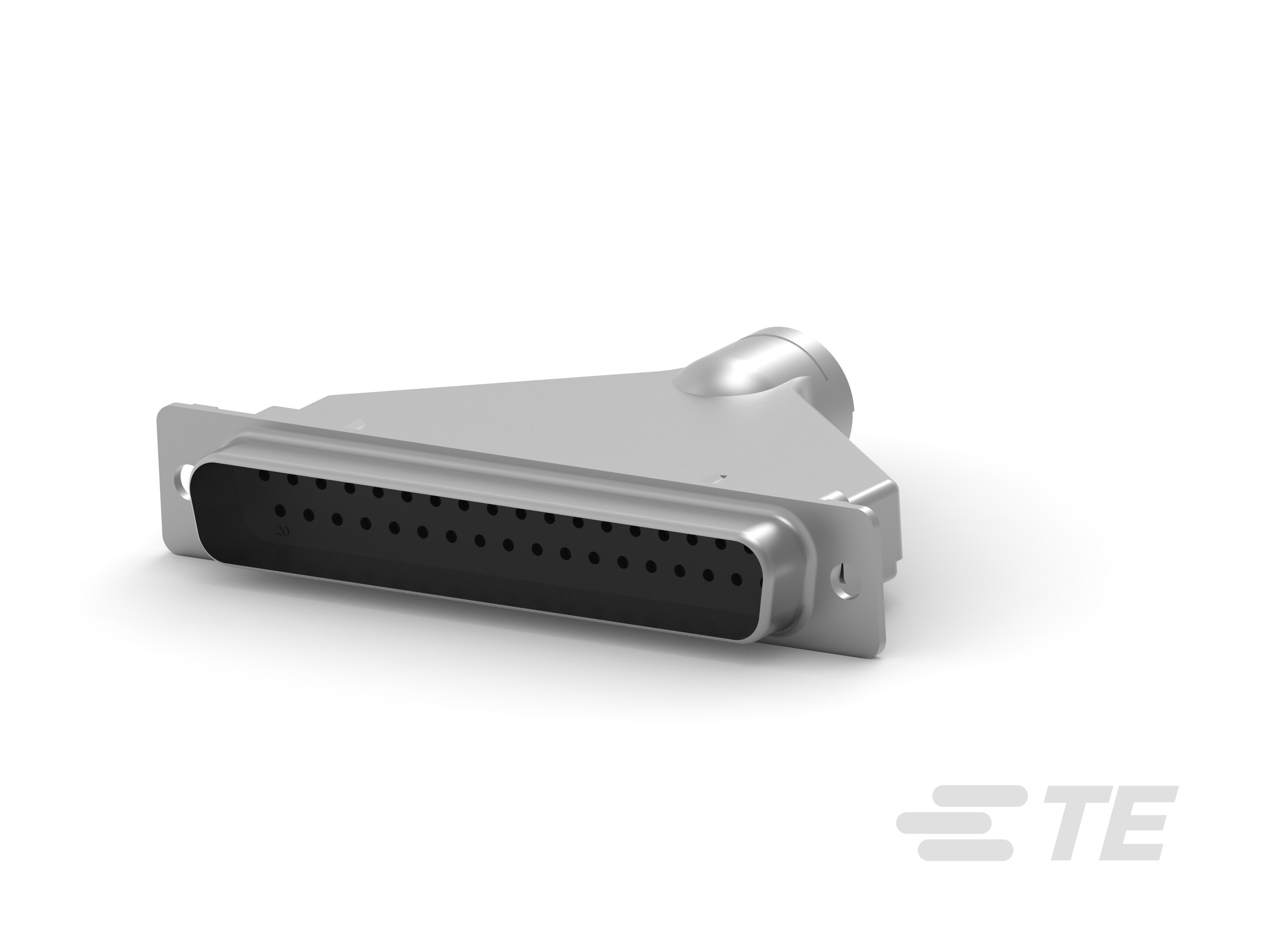

D-Sub Crimp: Plug, Signal, 37 Posn, Pin Size 20, Shell Size 4

D-Sub Crimp: Plug, Signal, 37 Posn, Pin Size 20, Shell Size 4-CAT-035-DCPPS204
D-Sub crimp plug connectors with shell size 4 accepts pin contacts of size 20, intended for cable to cable application and available in 37 positions. Used for signal circuit application and has an operating temperature of -55 – 105 DEGC.
More Less

Product Features

  • Connector & Housing Type : Plug

  • Connector System : Cable-to-Cable

  • Number of Positions : 37

  • Contact Size : Size 20

  • Connector Shell Size : 4

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Kit, Carton, Package, Box

  • Packaging Quantity  1, 300, 250

Product Type Features

  • Shell Material Configuration  Full Metal Shell

  • Ground Feature Type  Grounding Indents

  • Connector & Contact Terminates To  Wire & Cable

  • Connector & Housing Type  Plug

  • Connector System  Cable-to-Cable

  • Connector Shell Size  4

  • Sealable  No

Operation/Application

  • Circuit Application  Signal

  • Shielded  Yes

Dimensions

  • Compatible Insulation Diameter Range (mm) 8.59 – 14.28, 4.19 – 11.56

Body Features

  • Shell Plating Material  Zinc, Tin, Tin over Copper

  • Insert Material  Thermoplastic, PBT GF, Glass-Filled Nylon/Polyester

  • Mating Retention Feature Material  Zinc Alloy

  • Shield Plating Material  Tin

  • Primary Product Color  Black

  • Shield Material  Steel

Housing Features

  • Housing Material  Nylon GF

  • Shell Material  Steel

  • Centerline (Pitch) (mm) 2.74, 2.79, 2.77, 2.28, 2.03

  • Centerline (Pitch) (in) .11, .09, .108, .109, .08

Industry Standards

  • UL Flammability Rating  UL 94V-0

Termination Features

  • Termination Method to Wire & Cable  Crimp

Contact Features

  • Contact Options  Order Separately

  • Contact Size  Size 20

Configuration Features

  • Number of Positions  37

Mechanical Attachment

  • Mating Retention  With

  • Mating Retention Type  Mounting Holes, Clinch Nut, 4-40 UNC, Jackscrew

  • Connector Mounting Type  Panel Mount

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-035-DCPPS204
