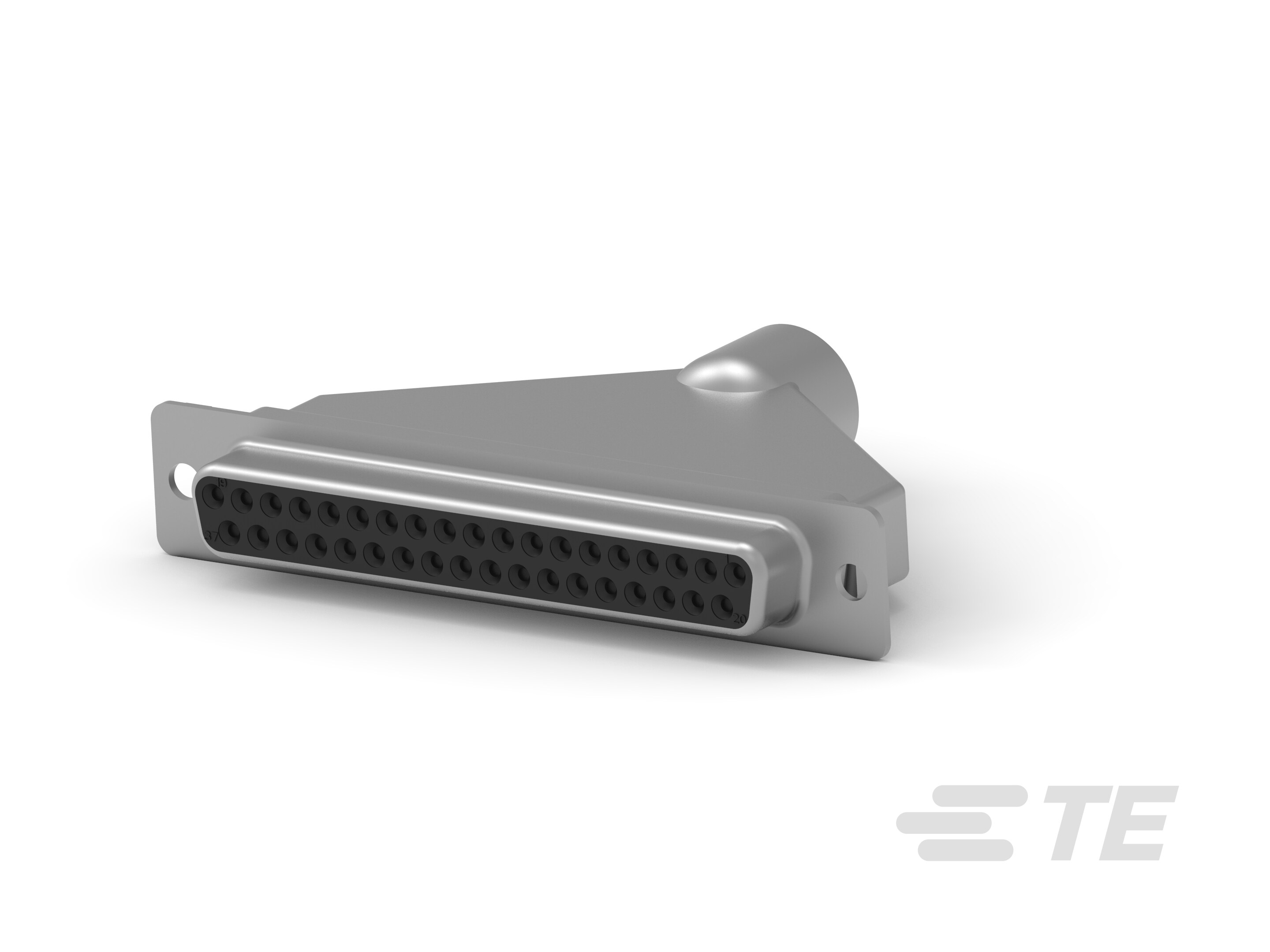

D-Sub Crimp Recpt Signal 37 Posn, Socket Size 20, Shell Size 4

D-Sub Crimp Recpt Signal 37 Posn, Socket Size 20, Shell Size 4-CAT-035-DCRSS204
D-Sub crimp receptacle connectors with shell size 4 accepts socket contacts of size 20, intended for cable to cable application and available in 37 positions. Used for signal circuit application and has an operating temperature of -55 – 105 DEGC.
More Less

Product Features

  • Packaging Method : Box, Carton, Bulk Kit, Kit, Package

  • Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

  • Primary Product Color : Black

  • Termination Method to Wire & Cable : Crimp

  • Insert Material : Thermoplastic, Nylon, Glass-Filled PBT/Nylon

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector System  Cable-to-Cable

  • Sealable  No

  • Connector & Housing Type  Receptacle

  • Connector & Contact Terminates To  Wire & Cable

  • Connector Shell Size  4

  • Shell Material Configuration  Full Metal Shell

Configuration Features

  • Number of Positions  37

Body Features

  • Primary Product Color  Black

  • Insert Material  Thermoplastic, Nylon, Glass-Filled PBT/Nylon

  • Shell Plating Material  Tin, Zinc

  • Shield Material  Steel

  • Mating Retention Feature Material  Zinc Alloy

  • Shield Plating Material  Tin

Contact Features

  • Contact Options  Order Separately

  • Contact Size  Size 20

Termination Features

  • Termination Method to Wire & Cable  Crimp

Mechanical Attachment

  • Mating Retention Type  Jackscrew, Mounting Holes, Clinch Nut, 4-40 UNC

  • Mating Retention  With

Housing Features

  • Housing Material  Nylon GF

  • Centerline (Pitch) (mm) 2.74, 2.76, 2.79

  • Centerline (Pitch) (in) .108, .109, .11

  • Shell Material  Steel

Dimensions

  • Compatible Insulation Diameter Range (mm) 4.19 – 11.56, 5.51 – 11.05

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Shielded  Yes

  • Circuit Application  Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Method  Box, Carton, Bulk Kit, Kit, Package

  • Packaging Quantity  1, 300

Reference Number

  • TE Internal Number CAT-035-DCRSS204
