Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

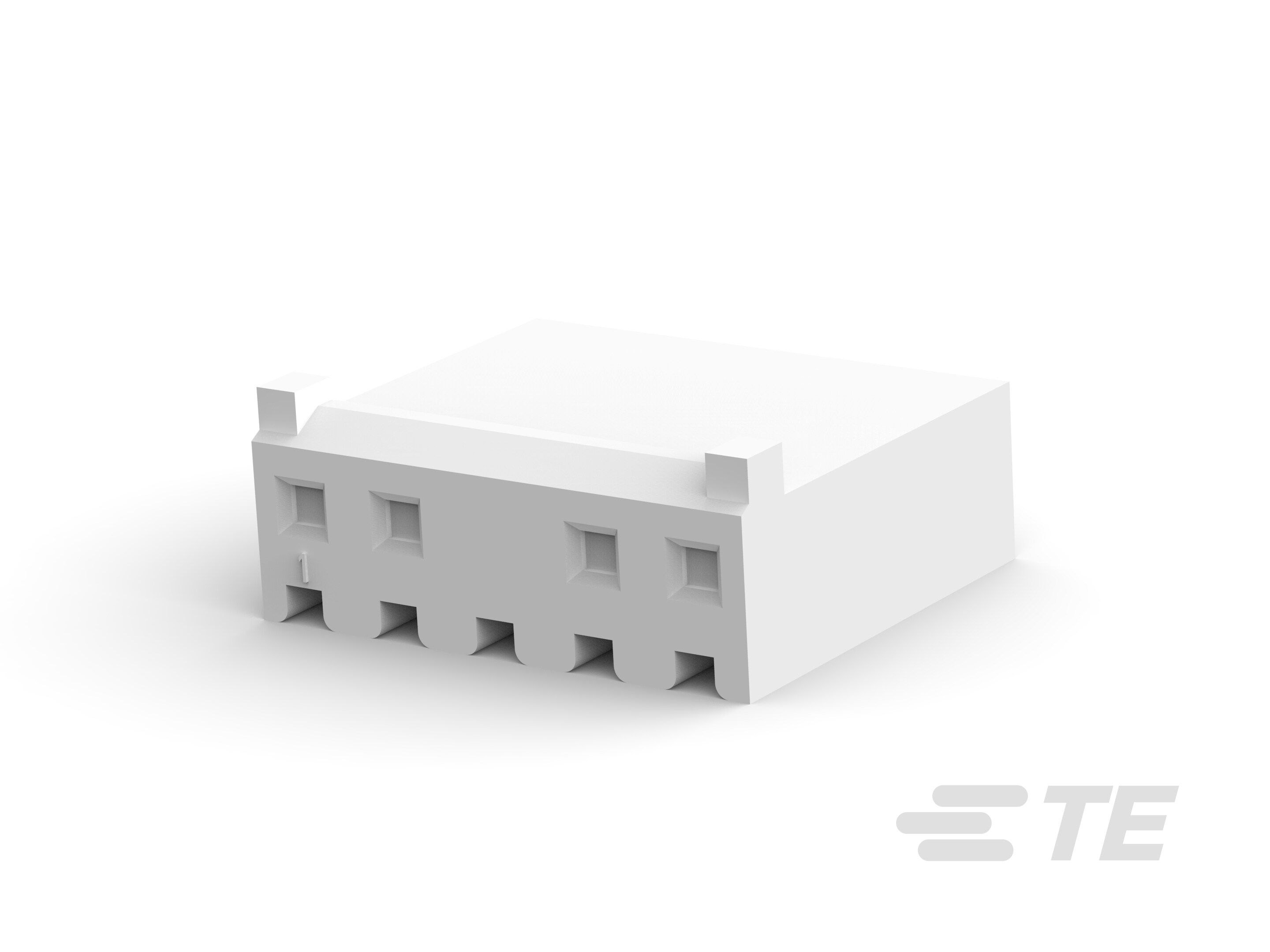

  • Connector Product Type  Housing

  • Connector & Housing Type  Receptacle

  • Connector System  Wire-to-Board

  • Sealable  No

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Number of Positions  1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24

  • Number of Rows  1

Electrical Characteristics

  • Operating Voltage (VAC) 250

Body Features

  • Primary Product Color  Natural

Contact Features

  • Contact Type  Socket

  • Contact Retention Within Housing  Without

  • Contact Current Rating (Max) (A) 6.5

Termination Features

  • Termination Method to Wire & Cable  Crimp

Mechanical Attachment

  • Panel Mount Feature  Without

  • Strain Relief  Without

  • Mating Retention  Without

  • Connector Mounting Type  Cable Mount (Free-Hanging)

Housing Features

  • Housing Material  Nylon GF

  • Centerline (Pitch)  3.96 mm [ .156 in ]

Dimensions

  • Connector Length (in) .152, .308, .465, .621, .777, .933, 1.09, 1.246, 1.558, 1.715, 1.871, 2.027, 2.183, 2.34, 2.496, 2.652, 2.808, 2.965, 3.121, 3.277, 3.433, 3.59, 3.746

  • Connector Height (mm) .13, 6.35

  • Wire Size (AWG) 30 – 18

  • Connector Length (mm) 55.45

  • Wire Size (mm²) .0509 – .823

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Circuit Application  Power & Signal

Industry Standards

  • Compatible With Agency/Standards Products  CSA, UL

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Method  Bag & Box, Package

  • Packaging Quantity  1, 500, 1000

Reference Number

  • TE Internal Number CAT-103156-WBHSN
