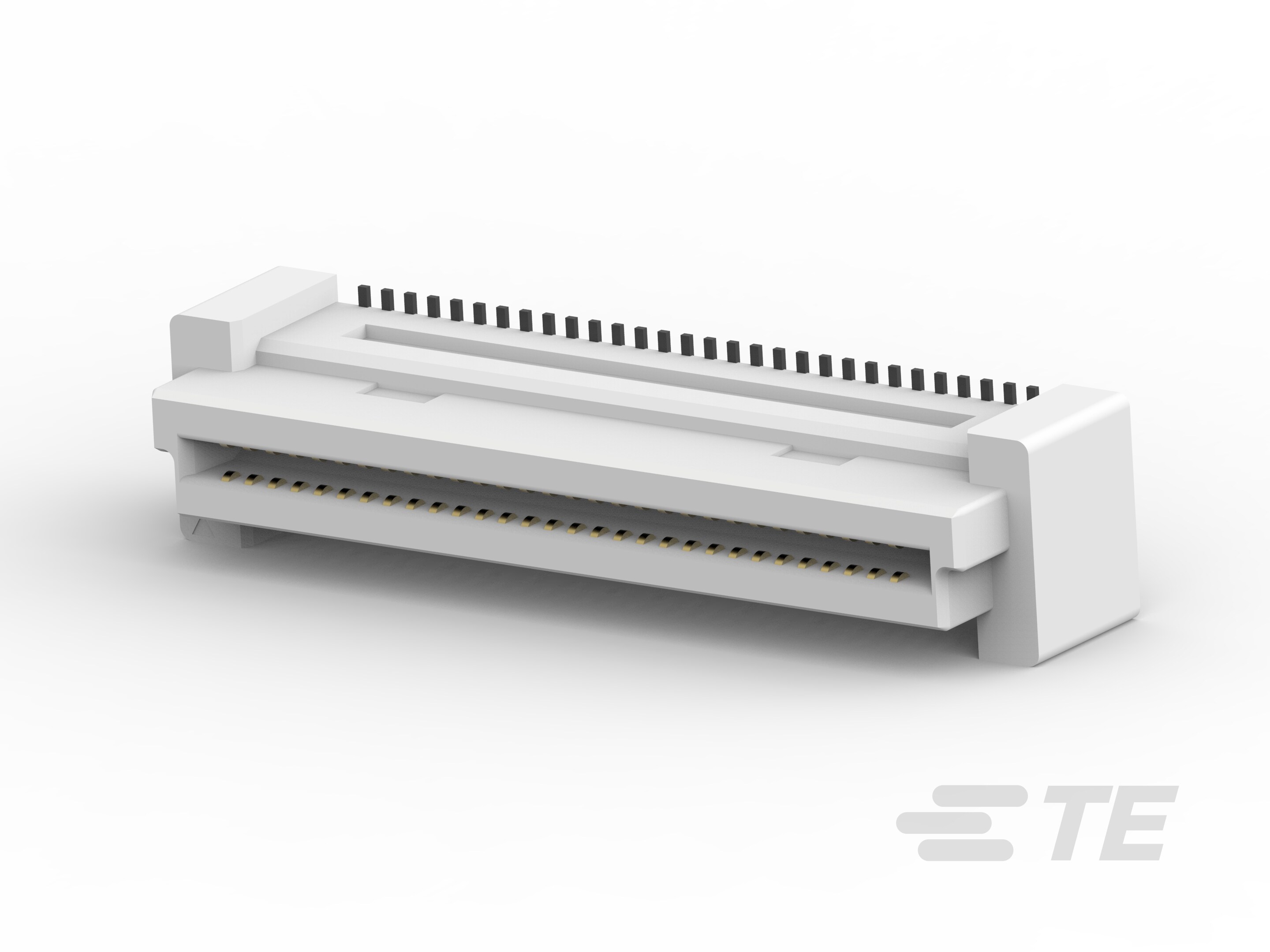

Free Height Receptacle Conn: Board-Board, Vertical, 60, 0.8mm

Please review product documents or contact us for the latest agency approval information.

• PCB Connector Type  PCB Mount Receptacle

• Connector System  Board-to-Board

• Sealable  No

• Connector & Contact Terminates To  Printed Circuit Board

• Connector Product Type  Connector Assembly

• Board-to-Board Configuration  Parallel

• Stackable  Yes

• PCB Mount Orientation  Vertical

• Number of Positions  60

• Dielectric Withstanding Voltage (Max) (VAC) 500

• Insulation Resistance (MΩ) 2

• Operating Voltage (VAC) 100

• Assembly Process Feature Material  Steel

• Primary Product Color  Natural, White

• PCB Contact Termination Area Plating Material Thickness  2 µm [ 78.74 µin ]

• PCB Contact Termination Area Plating Material Finish  Matte

• Mating Tab Thickness (mm) .2, .25

• Mating Tab Thickness (in) .008, .01

• Contact Base Material  Copper, Copper Alloy

• Contact Mating Area Plating Material Thickness (µm) .2, .76

• Contact Mating Area Plating Material Thickness (µin) 8, 15, 30

• PCB Contact Termination Area Plating Material  Tin

• Contact Underplating Material  Nickel

• Contact Layout  Inline

• Mating Tab Width (mm) .4, .5, .8

• Mating Tab Width (in) .016, .02, .031

• Contact Mating Area Plating Material Finish  Matte

• Contact Shape & Form  Square

• Contact Mating Area Plating Material  Gold (Au)

• Contact Type  Receptacle, Socket

• Contact Current Rating (Max) (A) .5, .8

• Rectangular Termination Post & Tail Width  .3 mm [ .012 in ]

• Rectangular Termination Post & Tail Thickness  .2 mm [ .008 in ]

• Termination Method to PCB  Surface Mount

• Mounting Alignment Feature Length (mm) .5, .7

• Mounting Alignment Feature Length (in) .02, .028

• PCB Mount Retention Type  Solder Peg

• PCB Mount Alignment Type  Housing Peg, Locating Boss, Positioning Bosses

• Mating Alignment Type  Polarization, Polarized

• PCB Mount Retention  With, Without

• PCB Mount Alignment  With

• Connector Mounting Type  Board Mount

• Mating Alignment  With

• Housing Material  High Temperature Thermoplastic, LCP, LCP (Liquid Crystal Polymer), Matte

• Mating Entry Location  Top

• Centerline (Pitch)  .8 mm [ .031 in ]

• Connector Length  29.8 mm [ 1.17 in ]

• Connector Length (in) 1.17

• Stack Height (mm) 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20

• Stack Height (in) .197, .236, .276, .315, .354, .394, .433, .472, .512, .551, .591, .63, .669, .709, .748, .787

• Connector Height (mm) 3.75, 5, 9, 13, 17

• Connector Height (in) .147, .197, .354, .512, .669

• Connector Height (in) .147, .197, .354, .512, .669

• Connector Width  6 mm [ .23 in ]

• Housing Temperature Rating  High

• Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

• Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

• Assembly Process Feature  None, Pick and Place Cover

• Circuit Application  Signal

• UL Flammability Rating  UL 94V-0

• Packaging Quantity  16, 100, 200, 450, 500, 1000

• Packaging Reel Diameter (in) .5, .7

• Packaging Method  Box, Tape & Reel, Tube
