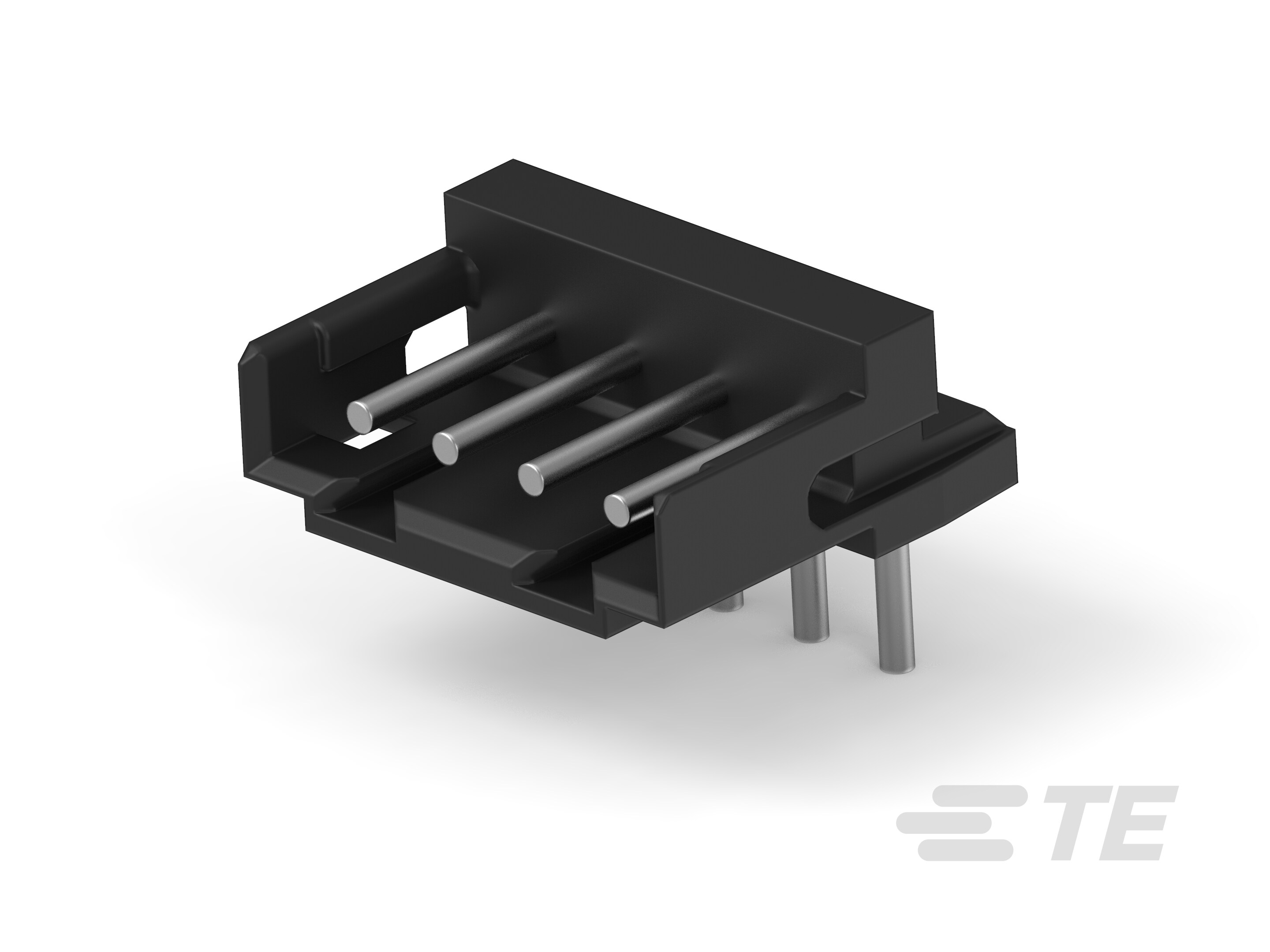

CT 2mm Header Assembly: Right Angle

AMP Common Termination 2mm Post Header Assembly Right Angle (Horizontal) Mount Orientation.

Product Features

PCB Connector Type : PCB Mount Header
PCB Mount Orientation : Horizontal, Right Angle
Connector System : Wire-to-Board
Number of Positions : 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Number of Rows : 1

Available from

Product	TE Part #	Documents	PCB Mount Orientation	Number of Positions	Centerline (Pitch)	Contact Mating Area Plating Material	Contact Mating Area Plating Material Finish	Contact Mating Area Plating Material Thickness	Primary Product Color	Mating Retention	PCB Mount Retention	Contact Current Rating (Max)	Circuit Application	Housing Material	Packaging Method	Operating Temperature Range
CT P/HDR ASSY H 4P W/KINK TUBE	8-292261-4	Product Drawing	Right Angle	4	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Box, Tube	-40 – 221 °C, -40 – 105 °C
CT P/HDR ASSY H 2P W/ KINK TUB	292167-2	Product Drawing	Right Angle	2	2 mm	Tin (Sn)	-	-	Natural	-	With	4 A	Power & Signal	-	Box, Tube	-40 – 105 °C
CT HDR ASSY H 13P BLUE	3-292253-3	Product Drawing 3D PDF	Right Angle	13	2 mm	Tin (Sn)	-	-	Blue	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 2P BLACK	6-292253-2	Product Drawing 3D PDF	Right Angle	2	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 7P BLUE	2-292253-7	Product Drawing 3D PDF	Right Angle	7	2 mm	Tin (Sn)	-	-	Blue	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT POST HDR ASSY 5P H W/O KINK	6-292143-5	Product Drawing 3D PDF	Right Angle	5	2 mm	Tin (Sn)	-	-	Black	-	Without	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 11P BLUE	3-292253-1	Product Drawing 3D PDF	Right Angle	11	2 mm	Tin (Sn)	-	-	Blue	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 5P BLUE	2-292253-5	Product Drawing 3D PDF	Right Angle	5	2 mm	Tin (Sn)	-	-	Blue	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT P/HDR ASSY H 10P W/KINK TUB	9-292261-0	Product Drawing	Right Angle	10	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Box, Tube	-40 – 221 °C, -40 – 105 °C
CT HDR ASSY H 10P BLACK	7-292253-0	Product Drawing 3D PDF	Right Angle	10	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 6P BLACK	6-292253-6	Product Drawing 3D PDF	Right Angle	6	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 10P BLUE	3-292253-0	Product Drawing 3D PDF	Right Angle	10	2 mm	Tin (Sn)	-	-	Blue	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT P/HDR ASSY H 8P W/KINK TUBE	8-292261-8	Product Drawing	Right Angle	8	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Box, Tube	-40 – 221 °C, -40 – 105 °C
CT HDR ASSY H 8P BLACK	6-292253-8	Product Drawing 3D PDF	Right Angle	8	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 15P BLUE	3-292253-5	Product Drawing 3D PDF	Right Angle	15	2 mm	Tin (Sn)	-	-	Blue	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 15P BLACK	7-292253-5	Product Drawing 3D PDF	Right Angle	15	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 13P BLACK	7-292253-3	Product Drawing 3D PDF	Right Angle	13	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 8P YELLOW	4-292253-8	Product Drawing 3D PDF	Right Angle	8	2 mm	Tin (Sn)	-	-	Yellow	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 8P BLUE	2-292253-8	Product Drawing 3D PDF	Right Angle	8	2 mm	Tin (Sn)	-	-	Blue	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT P/HDR ASSY H 2P W/KINK TUBE	8-292261-2	Product Drawing	Right Angle	2	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Box, Tube	-40 – 221 °C, -40 – 105 °C
CT HDR ASSY H 12P YELLOW	5-292253-2	Product Drawing 3D PDF	Right Angle	12	2 mm	Tin (Sn)	-	-	Yellow	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 9P YELLOW	4-292253-9	Product Drawing 3D PDF	Right Angle	9	2 mm	Tin (Sn)	-	-	Yellow	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 7P YELLOW	4-292253-7	Product Drawing 3D PDF	Right Angle	7	2 mm	Tin (Sn)	-	-	Yellow	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 5P YELLOW	4-292253-5	Product Drawing 3D PDF	Right Angle	5	2 mm	Tin (Sn)	-	-	Yellow	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 4P YELLOW	4-292253-4	Product Drawing 3D PDF	Right Angle	4	2 mm	Tin (Sn)	-	-	Yellow	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 3P BLACK	6-292253-3	Product Drawing 3D PDF	Right Angle	3	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 14P YELLOW	5-292253-4	Product Drawing 3D PDF	Right Angle	14	2 mm	Tin (Sn)	-	-	Yellow	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT P/HDR ASSY H 12P W/KINK TUB	9-292261-2	Product Drawing	Right Angle	12	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Box, Tube	-40 – 221 °C, -40 – 105 °C
CT HDR ASSY H 4P BLACK	6-292253-4	Product Drawing 3D PDF	Horizontal	4	2 mm	-	-	-	Black	-	With	3 A	Power & Signal	-	Bag	-40 – 105 °C
CT P/HDR ASSY H 15P W/KINK TUB	9-292261-5	Product Drawing	Right Angle	15	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Box, Tube	-40 – 221 °C, -40 – 105 °C
CT HDR ASSY H 11P YELLOW	5-292253-1	Product Drawing 3D PDF	Right Angle	11	2 mm	Tin (Sn)	-	-	Yellow	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT P/HDR ASSY H 12P W/ KINK TU	1-292167-2	Product Drawing	Right Angle	12	2 mm	Tin (Sn)	-	-	Natural	-	With	3 A	Power & Signal	-	Tube	-40 – 105 °C
CT HDR ASSY H 14P BLACK	7-292253-4	Product Drawing 3D PDF	Right Angle	14	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 11P BLACK	7-292253-1	Product Drawing 3D PDF	Right Angle	11	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 15P YELLOW	5-292253-5	Product Drawing 3D PDF	Right Angle	15	2 mm	Tin (Sn)	-	-	Yellow	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 13P YELLOW	5-292253-3	Product Drawing 3D PDF	Right Angle	13	2 mm	Tin (Sn)	-	-	Yellow	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 10P YELLOW	5-292253-0	Product Drawing 3D PDF	Right Angle	10	2 mm	Tin (Sn)	-	-	Yellow	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT P/HDR ASSY H 11P W/KINK TUB	9-292261-1	Product Drawing	Right Angle	11	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Box, Tube	-40 – 221 °C, -40 – 105 °C
CT HDR ASSY H 3P YELLOW	4-292253-3	Product Drawing 3D PDF	Right Angle	3	2 mm	Tin (Sn)	-	-	Yellow	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 14P BLUE	3-292253-4	Product Drawing 3D PDF	Right Angle	14	2 mm	Tin (Sn)	-	-	Blue	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 12P BLUE	3-292253-2	Product Drawing 3D PDF	Right Angle	12	2 mm	Tin (Sn)	-	-	Blue	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 7P BLACK	6-292253-7	Product Drawing 3D PDF	Right Angle	7	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT P/HDR ASSY H 5P W/KINK TUBE	8-292261-5	Product Drawing	Right Angle	5	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Box, Tube	-40 – 221 °C, -40 – 105 °C
CT HDR ASSY H 9P BLACK	6-292253-9	Product Drawing 3D PDF	Right Angle	9	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 12P BLACK	7-292253-2	Product Drawing 3D PDF	Right Angle	12	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT P/HDR ASSY H 13P W/KINK TUB	9-292261-3	Product Drawing	Right Angle	13	2 mm	Tin (Sn)	-	-	Black	-	With	4 A	Power & Signal	-	Box, Tube	-40 – 221 °C, -40 – 105 °C
CT HDR ASSY H 9P BLUE	2-292253-9	Product Drawing 3D PDF	Right Angle	9	2 mm	Tin (Sn)	-	-	Blue	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 6P YELLOW	4-292253-6	Product Drawing 3D PDF	Right Angle	6	2 mm	Tin (Sn)	-	-	Yellow	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 3P BLUE	2-292253-3	Product Drawing 3D PDF	Right Angle	3	2 mm	Tin (Sn)	-	-	Blue	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C
CT HDR ASSY H 6P BLUE	2-292253-6	Product Drawing 3D PDF	Right Angle	6	2 mm	Tin (Sn)	-	-	Blue	-	With	4 A	Power & Signal	-	Bag, Box	-40 – 105 °C

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

PCB Connector Type PCB Mount Header
Connector System Wire-to-Board
Header Type Partially Shrouded
Sealable No
Connector & Contact Terminates To Printed Circuit Board
Connector Product Type Connector Assembly

Configuration Features

Connector Contact Load Condition Fully Loaded
PCB Mount Orientation Horizontal, Right Angle
Number of Positions 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Number of Rows 1

Electrical Characteristics

Operating Voltage (VDC) 125
Operating Voltage (VAC) 125

Body Features

Primary Product Color Black, Blue, Natural, Yellow

Contact Features

Contact Underplating Material Nickel
Contact Layout Inline
Contact Mating Area Length (mm) 4.2, 4.5
Contact Mating Area Length (in) .165, .177
PCB Contact Termination Area Plating Material Thickness (µm) .2, 1, 1 – 2
PCB Contact Termination Area Plating Material Thickness (µin) 7.874, 39.37, 39.37 – 78.73
Contact Mating Area Plating Material Finish Bright, Matte
Contact Shape & Form Round, Rounded
Contact Base Material Brass
Contact Mating Area Plating Material Thickness (µm) .2, 1, 1 – 2
Contact Mating Area Plating Material Thickness (µin) 7.87, 39.37, 39.37 – 78.74, 39.37 – 78.73
PCB Contact Termination Area Plating Material Gold, Tin
Mating Pin Diameter .6 mm [ .024 in ]
Contact Mating Area Plating Material Gold (Au), Tin (Sn)
Contact Type Pin
Contact Current Rating (Max) (A) 3, 4

Termination Features

Termination Post & Tail Length (mm) 2.5, 3.2
Termination Post & Tail Length (in) .098, .126
Termination Post & Tail Diameter .6 mm [ .024 in ]
Termination Method to PCB Through Hole - Solder

Mechanical Attachment

PCB Mount Retention Type Kinked, Kinked Legs
Mating Retention With, Without
Panel Mount Feature With
Mating Alignment Type Polarization
Mating Retention Type Detent Window, Polarized Lock
PCB Mount Retention With, Without
PCB Mount Alignment Without
Connector Mounting Type Board Mount
Mating Alignment With

Housing Features

Housing Material 66 Nylon, Glass-Filled, PBT (UL94 V-0), Nylon, Nylon 6/6, Nylon 66, PBT GF
Centerline (Pitch) (mm) 2
Centerline (Pitch) (in) .078, .079

Dimensions

PCB Thickness (Recommended) .8 mm [ .031 – .063 in ]
Connector Length (mm) 5.8, 7.8, 9.8, 11.8, 13.8, 15.8, 17.8, 19.8, 21.8, 23.8, 25.8, 27.8, 29.8, 31.8
Connector Length (in) .228, .307, .385, .386, .465, .543, .622, .701, .78, .858, .937, 1.01, 1.016, 1.095, 1.173, 1.252
Connector Width (mm) 4, 5.8, 8.8
Connector Width (in) .157, .228, .346
Connector Height (mm) 4, 8.8
Connector Height (in) .157, .346

Usage Conditions

Operating Temperature Range (°C) -40 – 221, -30 – 105, -40 – 105
Operating Temperature Range (°F) -40 – 105, -22 – 221, -40 – 221

Operation/Application

Assembly Process Feature Pick and Place Cover
Circuit Application Power & Signal, Signal

Industry Standards

Compatible With Approved Standards Products CSA LR7189, UL E28476
Compatible With Agency/Standards Products CSA, UL
UL Flammability Rating UL 94V-0

Packaging Features

Packaging Quantity 15, 20, 25, 30, 40, 45, 60, 80, 200, 500, 1000
Packaging Method Bag, Box, Tube

Reference Number

TE Internal Number CAT-3980407-RHDRRA

Related Materials

No documentation available.
