AC Contactors: 3PDT

AC Contactors: 3PDT-CAT-3PDT-AC-CONT

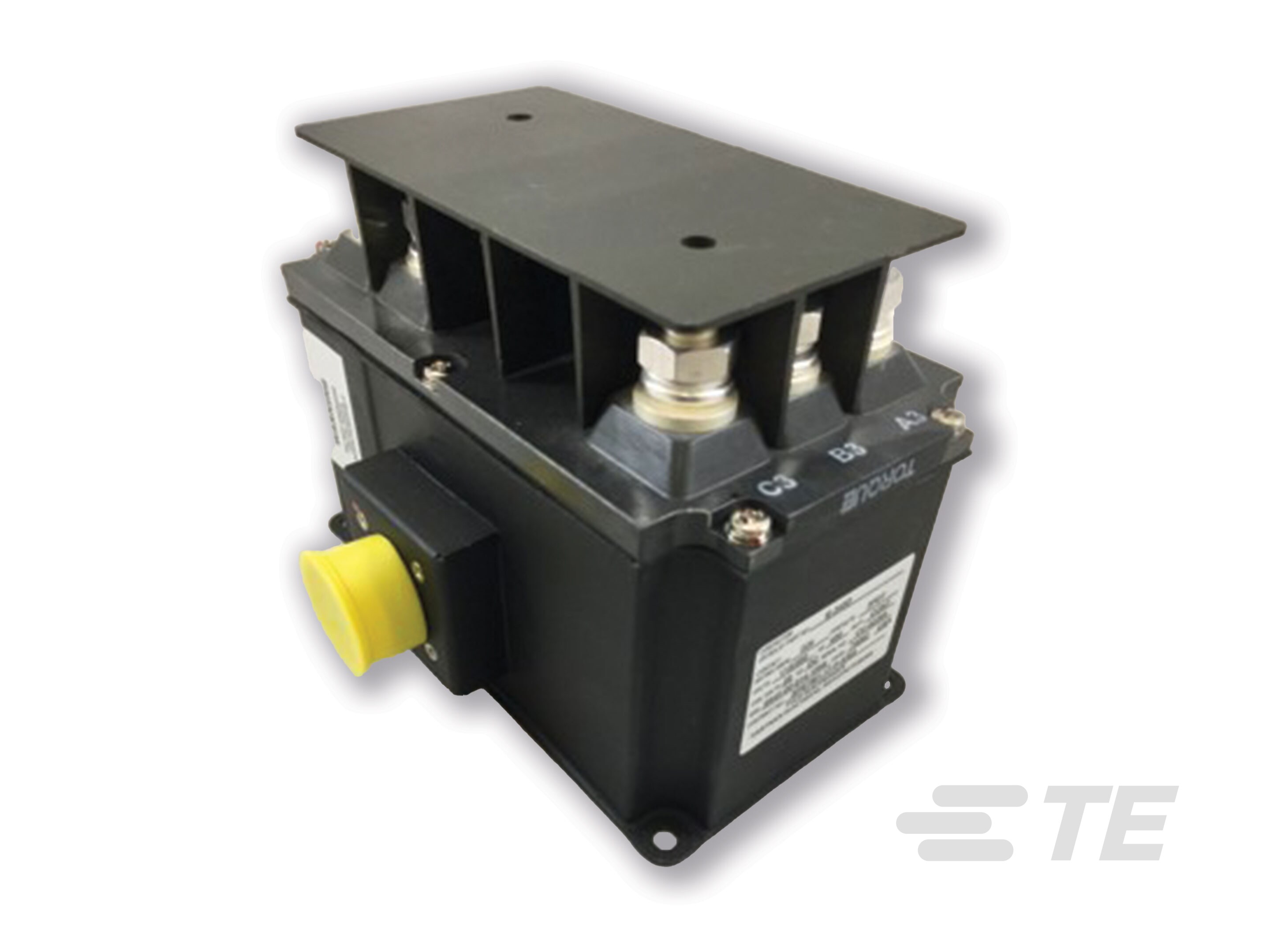

TE's Hartman intelligent power protection AC contactors are gasket sealed with 3PDT switch of 115/200 VAC
More Less

Product Features

  • Relay & Contactor Type : General Purpose Contactor

  • Current Type : DC, AC

  • Contact Arrangement : 3PDT- Centre Off, 3PDT- Centre Off DB, 3PDT-NO, 3PDT, 3PDT-DB-CO, 3 Form C 3PDT-NC

  • Contact Current Rating (A): 60, 70, 120, 50, 225, 250, 30

  • Coil Voltage Rating (VAC): 115

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Termination Features

  • Auxiliary Termination & Connection Type  8-32 UNC-2A, 8-32 UNC-2A Stud, 8-32 UNF-2A, Wire - Connector, 6-32 UNC-2A Stud

  • Main Termination & Connection Type  3/8-24 UNF-2A Stud, 1/4-28 UNF-2A Stud, 10-32 UNF-2A Stud

  • Coil Termination & Connection Type  6-32 UNC-2A Stud, 8-32 UNF-2A, Connector, 8-32 UNC-2A, 8-32 UNC-2A Stud

Configuration Features

  • Contact Number of Poles  3

  • Contact Arrangement  3PDT- Centre Off, 3PDT- Centre Off DB, 3PDT-NO, 3PDT, 3PDT-DB-CO, 3 Form C 3PDT-NC

Product Type Features

  • Relay & Contactor Type  General Purpose Contactor

Operation/Application

  • Current Type  DC, AC

Electrical Characteristics

  • Contact Current Rating (A) 60, 70, 120, 50, 225, 250, 30

  • Coil Voltage Rating (VAC) 115

  • Coil Voltage Rating (VDC) 28, 30

Body Features

  • Enclosure Type  Environmentally Sealed

Mechanical Attachment

  • Product Mount Type  Chassis Mount

Other

  • EU RoHS Compliance  Not Compliant

  • EU ELV Compliance  Not Compliant

Reference Number

  • TE Internal Number CAT-3PDT-AC-CONT
