Hard Metric Male Connector: Traditional Backplane, Mezzanine, 2mm

Hard Metric Male Connector: Traditional Backplane, Mezzanine, 2mm-CAT-472-Z12

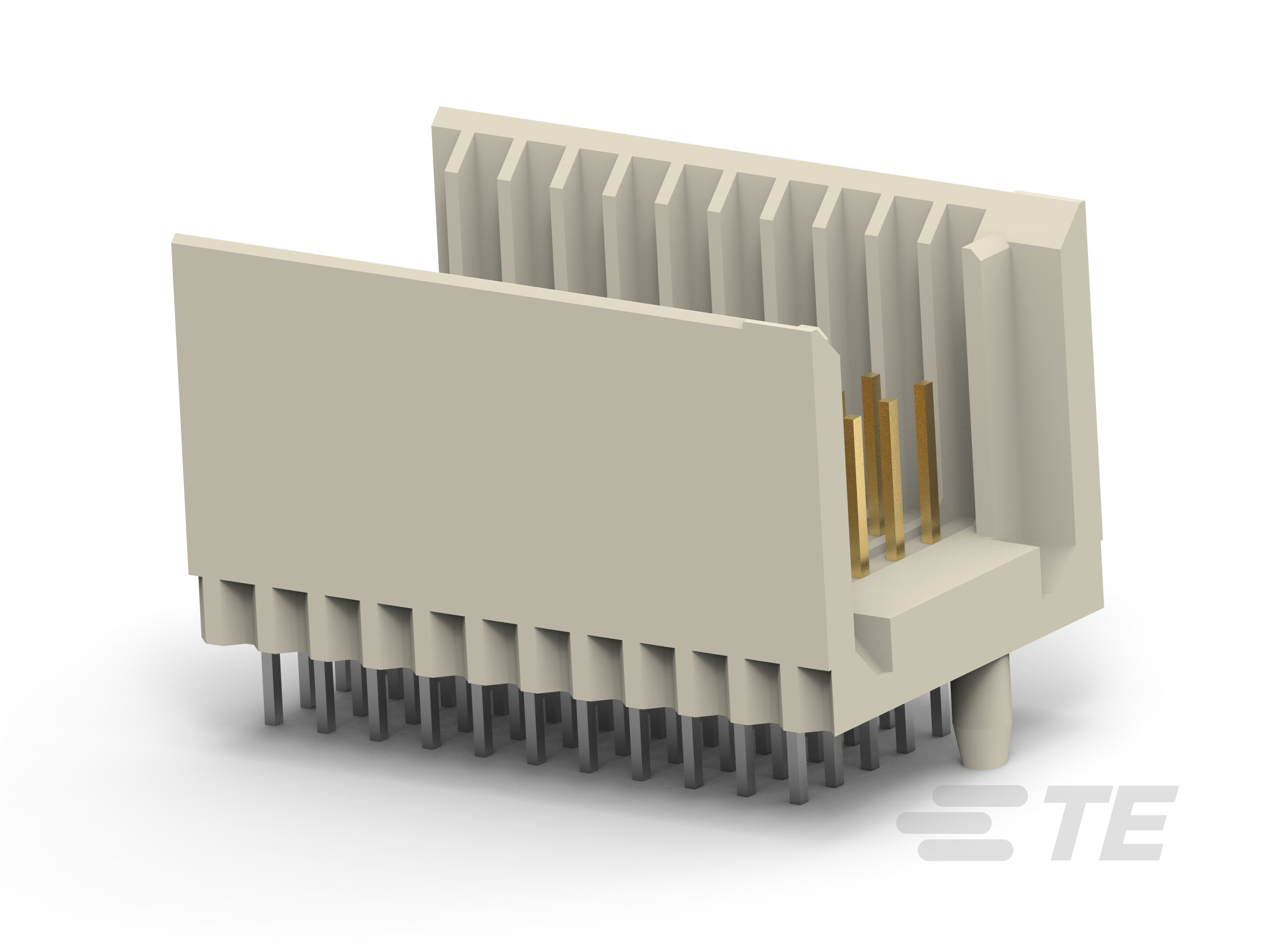

Z-PACK hard metric backplane male PCB mount header, having a centerline pitch of 2mm with vertical PCB mount orientation. Available in mezzanine and traditional backplane architecture and has an data rate of ≤1 Gbps.
More Less

Product Features

  • PCB Connector Assembly Type : PCB Mount Header

  • Data Rate (Gb/s): 1, ≤1

  • Number of Columns : 16, 8, 12, 5, 19, 22, 10, 25, 7, 6, 11

  • Number of Rows : 6, 5, 11, 4, 25, 22, 8, 10, 12, 19, 7

  • Backplane Architecture : Mezzanine, Traditional Backplane

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Operation/Application

  • Shielded  Yes, No

  • Circuit Application  Signal, Power & Signal

Contact Features

  • Contact Type  Pin

  • Contact Mating Area Length (mm) 6.75, 9.7, 10, 3.3, 8.25, 11.2, 5.25, 13.45, 8.2

  • CompactPCI Designation  P1/P4, None, P4, P2/P5, P1, P3, P5

  • Contact Base Material  Phosphor Bronze, Copper Alloy

  • PCB Contact Termination Area Plating Material  Tin, Tin-Lead

  • Contact Underplating Material  Nickel

  • Feedthrough Post Length (mm) 13, 14.5, 3.7, 16, 5.2

  • Contact Mating Area Plating Material  Gold, Nickel, Gold Flash over Palladium Nickel, Tin, Tin-Lead

  • Contact Mating Area Plating Material Thickness (µm) .08, .38, .076, 1.27, .76, .5, .05, .8

  • Contact Mating Area Plating Material Thickness (µin) 2, 30, 31.5, 3, 50, 15, 3.15, 31.49, 20

  • Contact Current Rating (Max) (A) .7, 1.5

Mechanical Attachment

  • Connector Mounting Type  Board Mount

  • Front Mating Level  (Rows A Thru E) Level 2, Level 2, (Rows A Thru D) Levels 1,2, (Rows F and Z) Level 3, (Row E) Levels 1,2,3, Level 1

  • Mating Alignment Type  Multi-Purpose Center, Guide Lugs, Polarization, Guide Hole, Polarizing Peg

Termination Features

  • Termination Method to PCB  Through Hole - Press-Fit

Housing Features

  • Housing Material  Polyester - GF, Glass-Filled Polyester, Thermoplastic, PBT GF

  • Centerline (Pitch) (mm) 1.5, 2

  • Centerline (Pitch) (in) .078, .079, .059, .07

Signal Characteristics

  • Crosstalk Version  Reduced, Standard

  • Data Rate (Gb/s) 1, ≤1

Configuration Features

  • Mating & Unmating Configuration  Make First / Break Last, Sequencing

  • Rows Loaded  E, Fully Loaded, G, Z, D, B, C, A, F, A, B, C, D, E (All Positions), I, H

  • Number of Signal Positions  200, 84, 175, 125, 40, 55, 154, 133, 110, 176, 95, 88, 174

  • Number of Columns  16, 8, 12, 5, 19, 22, 10, 25, 7, 6, 11

  • Number of Rows  6, 5, 11, 4, 25, 22, 8, 10, 12, 19, 7

  • Backplane Architecture  Mezzanine, Traditional Backplane

  • Number of Positions  100, 154, 55, 49, 88, 30, 77, 146, 35, 169, 144, 176, 56, 133, 128, 72, 20, 110, 175, 40, 42, 132, 200, 244, 250, 95, 125, 220, 28

  • PCB Mount Orientation  Vertical

Product Type Features

  • Connector System  Board-to-Board

  • Ground Feature Type  Ground Return Shielding, Grounding Contact

  • Backplane Interface Type  2mm HM

  • Connector & Contact Terminates To  Printed Circuit Board

  • PCB Connector Assembly Type  PCB Mount Header

  • Sealable  No

Packaging Features

  • Packaging Quantity  10, 43, 22, 13, 11, 21, 20, 1, 65, 27

  • Packaging Method  Box, Box & Tube, Tray, Box & Carton, Package, Tube

Dimensions

  • Backplane Module Length (mm) 7.88, 23.9, 49.88, 44, 37.88, 49.9, 11.88, 38, 43.88, 19.9, 13.88, 25, 15.88, 50, 24.9, 21.89, 20.3

Industry Standards

  • UL Flammability Rating  UL 94V-0

Body Features

  • Primary Product Color  Black, Natural, Gray

Usage Conditions

  • Operating Temperature Range (°C) -65 – 105, -55 – 125

  • Operating Temperature Range (°F) -85 – 221, -67 – 257

  • Operating Temperature Range (°F) -85 – 221, -67 – 257

Other

  • EU RoHS Compliance  Compliant, Not Compliant

  • EU ELV Compliance  Compliant with Exemptions, Compliant, Not Compliant

Reference Number

  • TE Internal Number CAT-472-Z12
