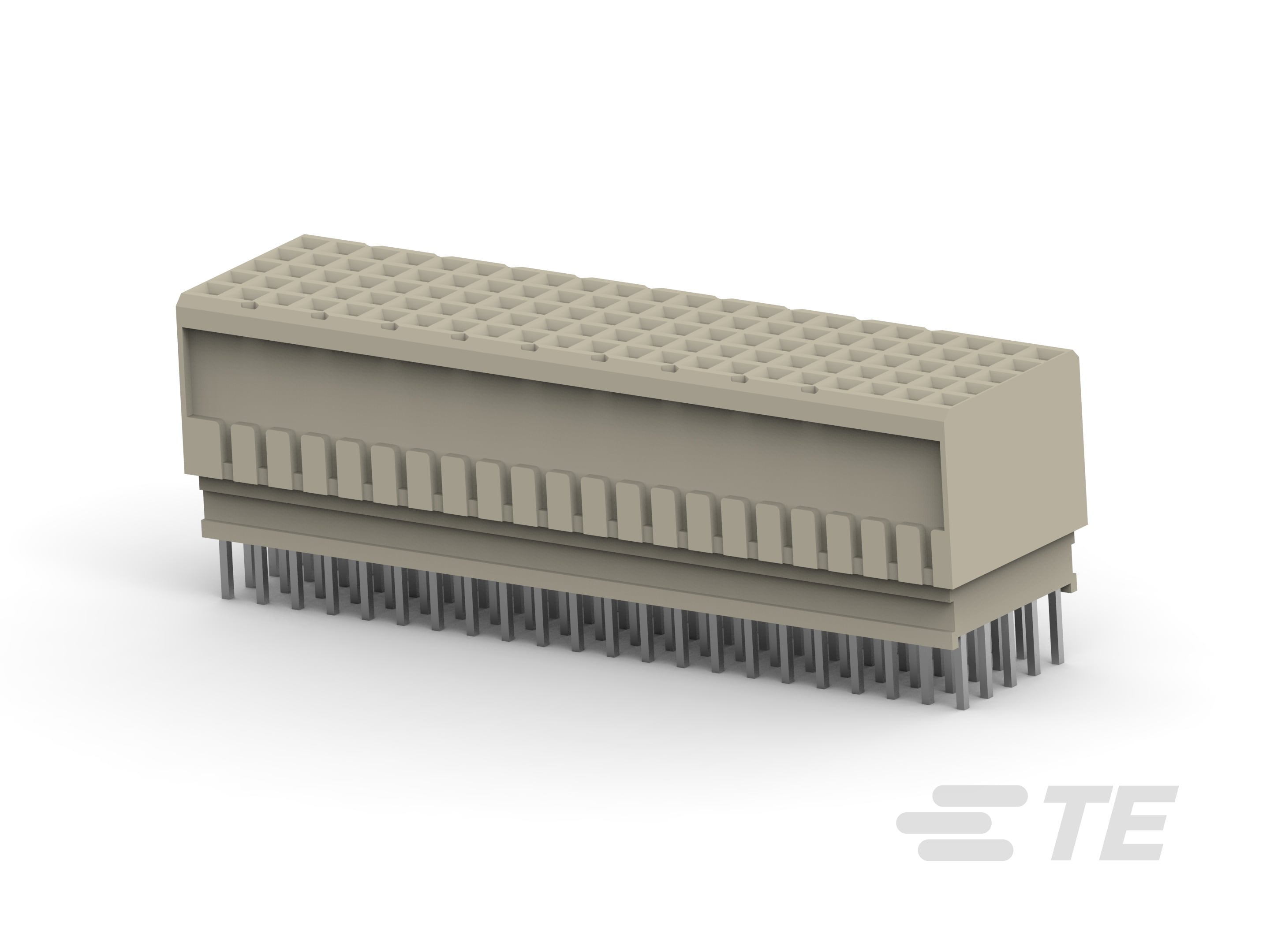

Hard Metric Backplane Receptacle Connector: Mezzanine, 2mm

Hard Metric Backplane Receptacle Connector: Mezzanine, 2mm-CAT-472-Z125535
Z-PACK hard metric backplane receptacle connector, having a centerline pitch of 2mm with vertical or right angle PCB mount orientation. Available in mezzanine backplane architecture, has a data rate of ≤1 Gbps and an operating temperature range of -55 – 125 DEGC.
More Less

Product Features

  • PCB Connector Assembly Type : PCB Mount Receptacle

  • Data Rate (Gb/s): 1, ≤1

  • Number of Columns : 8, 12, 19, 22, 25, 6, 15, 11

  • Number of Rows : 5, 4, 8, 12

  • Backplane Architecture : Mezzanine, Traditional Backplane, Midplane

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Operation/Application

  • Shielded  Yes, No

  • Circuit Application  Signal, Power & Signal

Contact Features

  • Contact Type  Socket

  • Contact Mating Area Length (mm) 3.3, 3.33

  • CompactPCI Designation  None, J1/J4

  • Contact Base Material  Phosphor Bronze

  • PCB Contact Termination Area Plating Material  Tin, Tin-Lead

  • Contact Underplating Material  Nickel

  • Feedthrough Post Length (mm) 3.34, 3.7, 3.3

  • Contact Mating Area Plating Material  Performance Based, Gold, Nickel

  • Contact Mating Area Plating Material Thickness (µm) 1.27, .76, .5

  • Contact Mating Area Plating Material Thickness (µin) 30, 50, 20, 2 – 5

  • Contact Current Rating (Max) (A) .7, 1.5, 1

Mechanical Attachment

  • Connector Mounting Type  Board Mount

  • Front Mating Level  Level 1

  • Mating Alignment Type  Multi-Purpose Center, Polarization

Termination Features

  • Termination Method to PCB  Through Hole - Press-Fit

Housing Features

  • Housing Material  Polyester - GF, Glass-Filled Polyester, Thermoplastic

  • Centerline (Pitch) (mm) 1.98, 2

  • Centerline (Pitch) (in) .078, .079, .07

Signal Characteristics

  • Crosstalk Version  Reduced, Standard

  • Data Rate (Gb/s) 1, ≤1

Configuration Features

  • Mating & Unmating Configuration  Make First / Break Last

  • Rows Loaded  Fully Loaded, G, D, B, C, A, F, A, B, C, D, E (All Positions), E, H

  • Number of Signal Positions  200, 110, 176, 95, 88

  • Number of Columns  8, 12, 19, 22, 25, 6, 15, 11

  • Number of Rows  5, 4, 8, 12

  • Backplane Architecture  Mezzanine, Traditional Backplane, Midplane

  • Number of Positions  55, 88, 144, 176, 60, 72, 110, 40, 24, 200, 95, 125

  • PCB Mount Orientation  Vertical, Right Angle

Product Type Features

  • Connector System  Board-to-Board

  • Ground Feature Type  Ground Return Shielding, Grounding Contact

  • Backplane Interface Type  2mm HM

  • Connector & Contact Terminates To  Printed Circuit Board

  • PCB Connector Assembly Type  PCB Mount Receptacle

  • Sealable  Yes, No

Packaging Features

  • Packaging Quantity  10, 22, 11, 20, 27

  • Packaging Method  Tray, Tube

Dimensions

  • Backplane Module Length (mm) 23.9, 44, 49.9, 48, 38, 19.9, 25, 50

Industry Standards

  • UL Flammability Rating  UL 94V-0

Body Features

  • Primary Product Color  Natural, Gray

Usage Conditions

  • Operating Temperature Range (°C) -65 – 105, -55 – 125

  • Operating Temperature Range (°F) -85 – 221, -67 – 257

Other

  • EU RoHS Compliance  Compliant, Not Compliant

  • EU ELV Compliance  Compliant with Exemptions, Compliant

Reference Number

  • TE Internal Number CAT-472-Z125535
