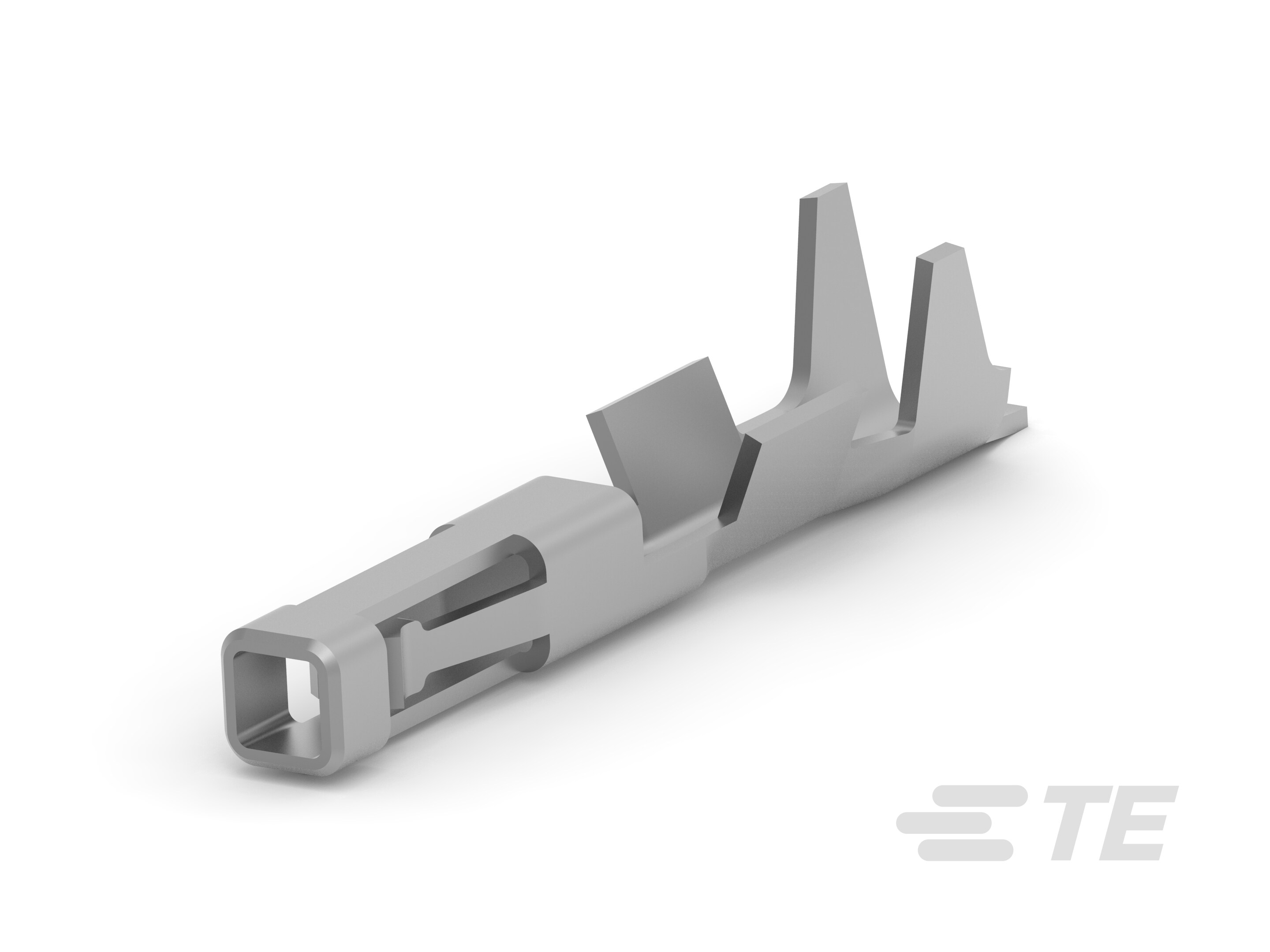

Sealed Connector: Terminals, Signal Double Lock, 2.5 mm

Sealed Connector: Terminals, Signal Double Lock, 2.5 mm-CAT-526SDL-SEALTM
2.5mm Sealed Connector: Terminals, Signal Double Lock Connectors.
More Less

Product Features

  • Contact Type : Receptacle, Tab

  • Contact Mating Area Plating Material : Tin (Sn)

  • Wire Contact Termination Area Plating Material : Pre-Tin

  • Operating Voltage (VAC): 250

  • Contact Retention Within Housing : Without

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Configuration Features

  • Compatible With Wire & Cable Type  Discrete Wire

Electrical Characteristics

  • Operating Voltage (VAC) 250

Contact Features

  • Contact Type  Receptacle, Tab

  • Contact Mating Area Plating Material  Tin (Sn)

  • Wire Contact Termination Area Plating Material  Pre-Tin

  • Contact Retention Within Housing  Without

  • Contact Base Material  Brass, Phosphor Bronze

  • Contact Current Rating (Max) (A) 2.5, 3

Termination Features

  • Termination Method to Wire & Cable  Crimp

  • Product Terminates To  Wire & Cable

Dimensions

  • Compatible Insulation Diameter Range (mm) 1.3 – 1.6

  • Wire Size (AWG) 26 – 22

Usage Conditions

  • Operating Temperature Range  -30 – 105 °C [ -22 – 221 °F ]

Operation/Application

  • Circuit Application  Signal

Reference Number

  • TE Internal Number CAT-526SDL-SEALTM
