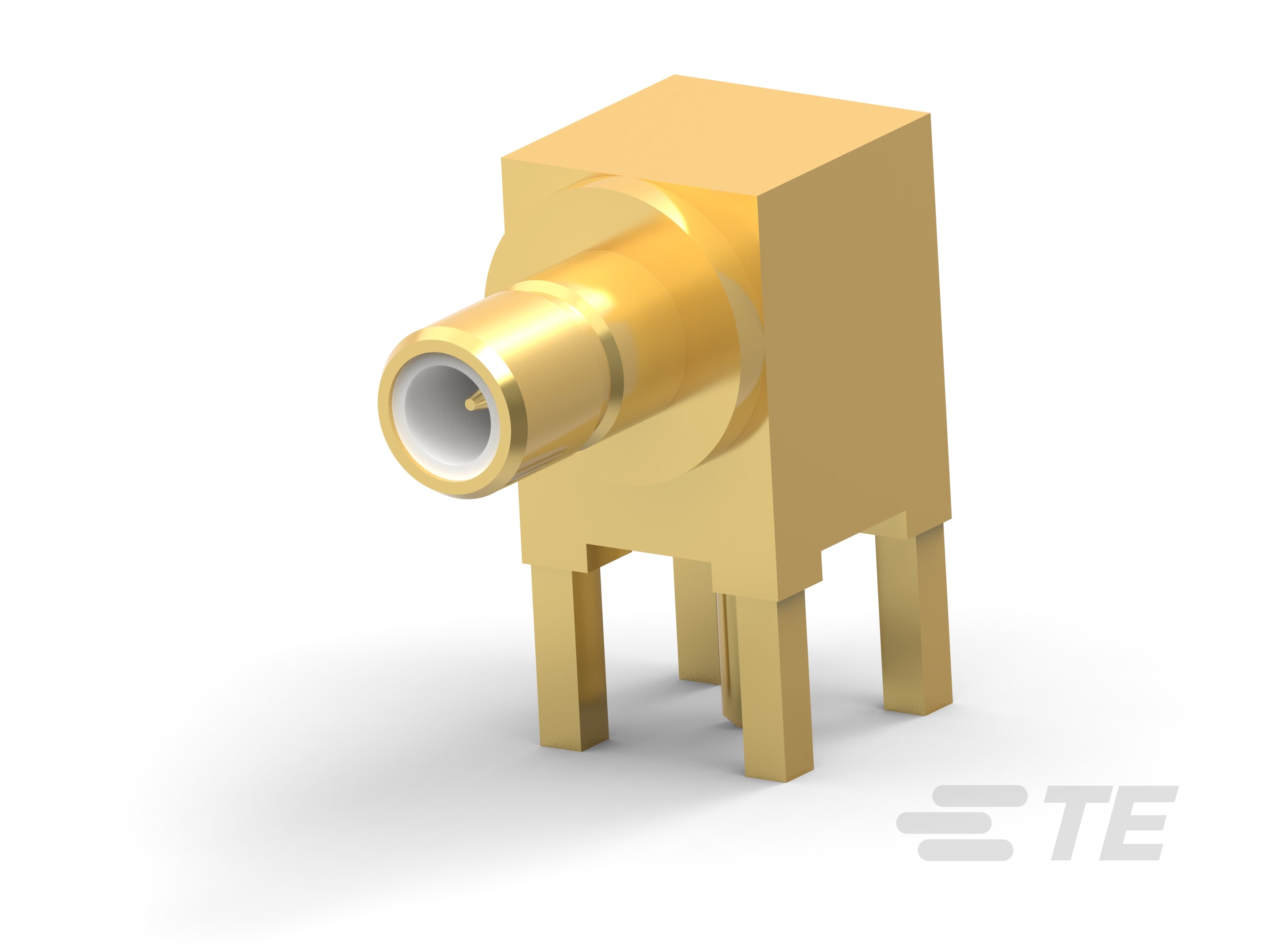

SMB Connector: Jack, Right-Angle Mount, Mated Outer Dia. 4.75mm

Please review product documents or contact us for the latest agency approval information.

• Connector Shape  Rectangular, Circular

• Connector Product Type  Connector Assembly

• RF Interface  SMB

• RF Connector Style  Jack

• Connector System  Cable-to-Board

• Sealable  No

• Connector & Contact Terminates To  Printed Circuit Board

• Termination Method to PCB  Through Hole - Solder

• Termination Post & Tail Length (mm) 3.94, 4.45, 2.79

• Termination Post & Tail Length (in) .175, .155, .109

• Grade  Mil-Type, Consumer, Commercial

• Lockwasher Material  Phosphor Bronze

• Additional Features  Board Standoff, Solderless, Pin Protection

• Dielectric Material  PTFE, Fluoropolymer, Polypropylene, TFE

• EU RoHS Compliance  Compliant with Exemptions, Not Compliant

• EU ELV Compliance  Compliant, Not Compliant, Compliant with Exemptions

• PCB Mount Orientation  Right Angle

• Number of Positions  1

• Number of Coaxial Contacts  1

• Body Underplating Material  Nickel

• Body Material  Zinc Alloy, Brass

• Body Plating Material  Gold, Nickel, Tin, Gold Flash, Electroless Nickel

• Profile Height from PCB (mm) 8.71, 9.06, 8.51, 6.99, 9.78, 7.67, 7.04

• Profile Height from PCB (in) .335, .277, .302, .343, .356, .275, .385

• RF Connector Mated Outer Diameter (Approximate)  4.75 mm [ .187 in ]

• RF Connector Center Contact Underplating Material  Nickel

• RF Connector Center Contact Plating Thickness (µin) 65, 30, 50

• RF Connector Center Contact Plating Material  Gold

• RF Connector Center Contact Material  Brass, Beryllium Copper

• Impedance (Ω) 50, 75

• RF Connector Coupling Mechanism  Push-On, Snap-Fit, Snap-On, Quick Connect/Disconnect

• Connector Mounting Type  Board Mount, Panel Mount

• RF Contact Captivation Method  Mechanical

• Detent  Without, With

• Operating Frequency (GHz) 4

• Operating Temperature Range  -65 – 165 °C [ -85 – 329 °F ]

• Packaging Method  Box, Package, Bag, Carton
