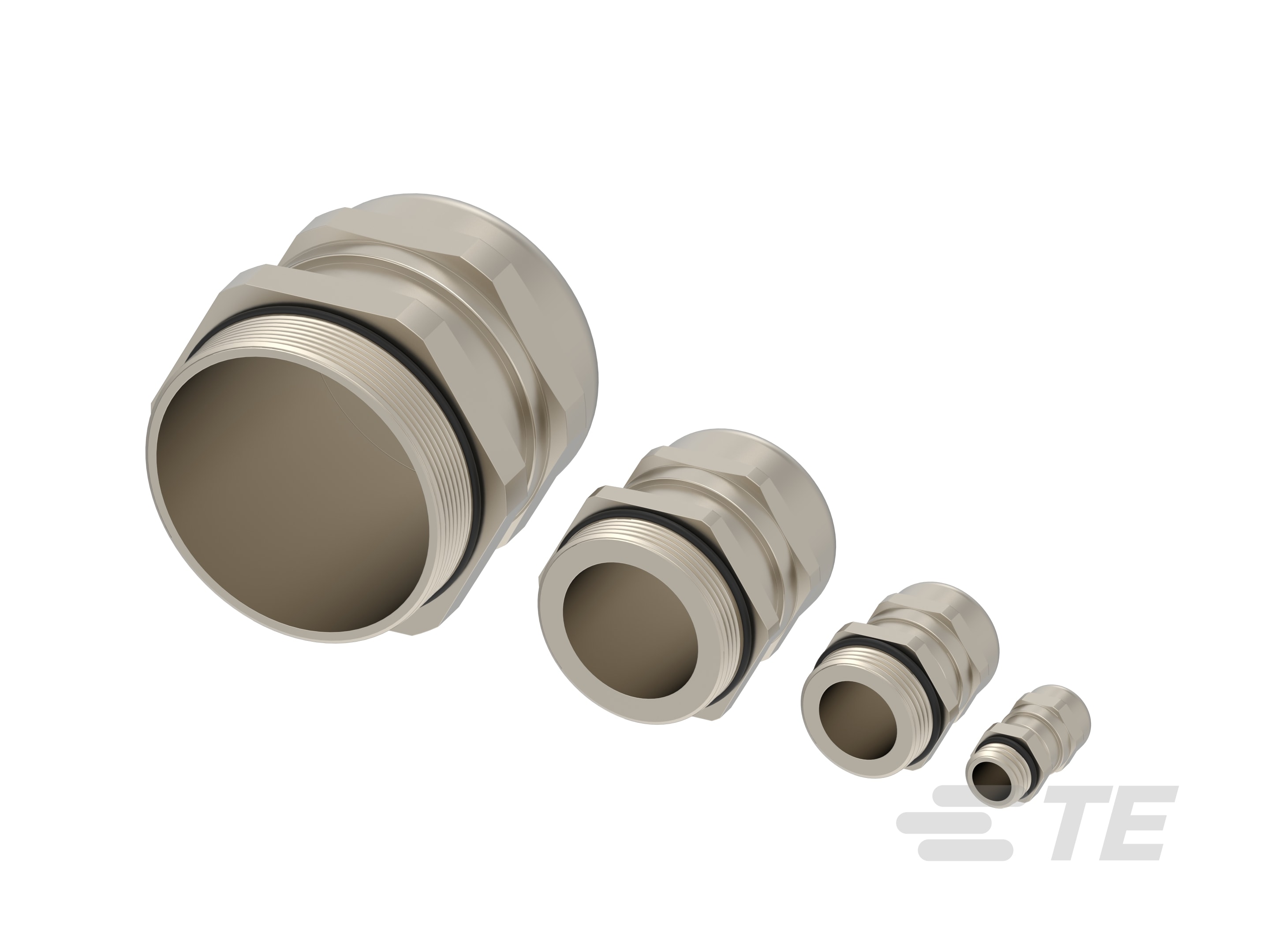

EMC Cable Gland (EMC2)

Nickel plated brass EMC cable glands with internal grounding mechanism to provide earth continuity for shielded cable. EMC2, IP 68. Compliance: ROHS, CE & cUL

More Less

Digital Datasheet|

Product Features

Cable Gland Product Type : Cable Gland
Cable Gland & Accessory Style : Standard EMC
Primary Product Material : Brass
Clamping Diameter Range (mm): 5 – 10, 6 – 12, 30 – 38, 3 – 6.5, 13 – 18, 22 – 32, 4 – 8, 10 – 14, 34 – 44, 18 – 25
Primary Product Plating Material : Nickel

Available from

Product	TE Part #	Documents	Clamping Diameter Range	Outer Thread Size	Thread Length
EM-EMC2-PG7-MET-B	1SNG613026R0000	Product Drawing 3D PDF	3 – 6.5 mm	PG 7	10 mm
EM-EMC2-PG48-MET-B	1SNG613044R0000	Product Drawing 3D PDF	34 – 44 mm	PG48	18 mm
EM-EMC2-PG9-MET-A	1SNG613027R0000	Product Drawing 3D PDF	4 – 8 mm	PG 9	6 mm
EM-EMC2-PG11-MET-A	1SNG613029R0000	Product Drawing 3D PDF	5 – 10 mm	PG11	6 mm
EM-EMC2-PG7-MET-A	1SNG613025R0000	Product Drawing 3D PDF	3 – 6.5 mm	PG 7	6 mm
EM-EMC2-PG36-MET-B	1SNG613040R0000	Product Drawing 3D PDF	22 – 32 mm	PG36	14 mm
EM-EMC2-M32-MET-A	1SNG613011R0000	3D PDF	13 – 18 mm	M32 x 1.5	9 mm
EM-EMC2-M63-MET-A	1SNG613019R0000	3D PDF	34 – 44 mm	M63 x 1.5	14 mm
EM-EMC2-PG135-MET-A	1SNG613031R0000	Product Drawing 3D PDF	6 – 12 mm	PG135	6.5 mm
EM-EMC2-M50-MET-A	1SNG613017R0000	3D PDF	22 – 32 mm	M50 x 1.5	9 mm
EM-EMC2-M50-MET-B	1SNG613018R0000	3D PDF	22 – 32 mm	M50 x 1.5	15 mm
EM-EMC2-M63-MET-B	1SNG613020R0000	Product Drawing 3D PDF	34 – 44 mm	M63 x 1.5	18 mm
EM-EMC2-PG16-MET-A	1SNG613033R0000	Product Drawing 3D PDF	10 – 14 mm	PG16	6.5 mm
EM-EMC2-PG29-MET-A	1SNG613037R0000	Product Drawing 3D PDF	18 – 25 mm	PG29	8 mm
EM-EMC2-PG21-MET-A	1SNG613035R0000	Product Drawing 3D PDF	13 – 18 mm	PG21	7.2 mm
EM-EMC2-PG42-MET-B	1SNG613042R0000	Product Drawing 3D PDF	30 – 38 mm	PG42	16 mm
EM-EMC2-M40-MET-A	1SNG613014R0000	3D PDF	18 – 25 mm	M40 x 1.5	9 mm
EM-EMC2-PG29-MET-B	1SNG613038R0000	Product Drawing 3D PDF	18 – 25 mm	PG29	12 mm
EM-EMC2-PG21-MET-B	1SNG613036R0000	Product Drawing 3D PDF	13 – 18 mm	PG21	12 mm
EM-EMC2-M32-MET-B	1SNG613012R0000	3D PDF	13 – 18 mm	M32 x 1.5	15 mm
EM-EMC2-PG48-MET-A	1SNG613043R0000	Product Drawing 3D PDF	34 – 44 mm	PG48	14 mm
EM-EMC2-M12-MET-B Buy on te.com	1SNG613002R0000	Product Drawing 3D PDF	3 – 6.5 mm	M12 x 1.5	12 mm
EM-EMC2-PG16-MET-B	1SNG613034R0000	Product Drawing 3D PDF	10 – 14 mm	PG16	10 mm
EM-EMC2-PG42-MET-A	1SNG613041R0000	Product Drawing 3D PDF	30 – 38 mm	PG42	12 mm
EM-EMC2-PG36-MET-A	1SNG613039R0000	Product Drawing 3D PDF	22 – 32 mm	PG36	9 mm
EM-EMC2-M40-MET-B	1SNG613015R0000	3D PDF	18 – 25 mm	M40 x 1.5	15 mm
EM-EMC2-M25-MET-B	1SNG613009R0000	Product Drawing 3D PDF	10 – 14 mm	M25 x 1.5	12 mm
EM-EMC2-M25-MET-A	1SNG613008R0000	Product Drawing 3D PDF	10 – 14 mm	M25 x 1.5	8 mm
EM-EMC2-PG9-MET-B Buy on te.com	1SNG613028R0000	Product Drawing 3D PDF	4 – 8 mm	PG 9	10 mm
EM-EMC2-PG135-MET-B Buy on te.com	1SNG613032R0000	Product Drawing 3D PDF	6 – 12 mm	PG135	10 mm
EM-EMC2-M20-MET-B Buy on te.com	1SNG613007R0000	Product Drawing 3D PDF	6 – 12 mm	M20 x 1.5	12 mm
EM-EMC2-M16-MET-C Buy on te.com	1SNG613005R0000	Product Drawing 3D PDF	5 – 10 mm	M16 x 1.5	6.5 mm
EM-EMC2-M40-MET-C	1SNG613016R0000	3D PDF	22 – 32 mm	M40 x 1.5	9 mm
EM-EMC2-NPT12-MET-A	1SNG613022R0000	Product Drawing 3D PDF	6 – 12 mm	NPT 1/2"	13 mm
EM-EMC2-PG11-MET-B	1SNG613030R0000	Product Drawing 3D PDF	5 – 10 mm	PG11	10 mm
EM-EMC2-M12-MET-A	1SNG613001R0000	Product Drawing 3D PDF	3 – 6.5 mm	M12 x 1.5	6 mm
EM-EMC2-M16-MET-B Buy on te.com	1SNG613004R0000	Product Drawing 3D PDF	4 – 8 mm	M16 x 1.5	12 mm
EM-EMC2-M20-MET-A	1SNG613006R0000	Product Drawing 3D PDF	6 – 12 mm	M20 x 1.5	8 mm
EM-EMC2-M25-MET-C	1SNG613010R0000	Product Drawing 3D PDF	13 – 18 mm	M25 x 1.5	8 mm
EM-EMC2-M32-MET-C	1SNG613013R0000	3D PDF	18 – 25 mm	M32 x 1.5	9 mm
EM-EMC2-NPT38-MET-A	1SNG613021R0000	Product Drawing 3D PDF	5 – 10 mm	NPT 3/8"	11.5 mm
EM-EMC2-NPT1-MET-A	1SNG613024R0000	Product Drawing 3D PDF	18 – 25 mm	NPT 1"	13 mm
EM-EMC2-M16-MET-A	1SNG613003R0000	Product Drawing 3D PDF	4 – 8 mm	M16 x 1.5	7 mm
EM-EMC2-NPT34-MET-A	1SNG613023R0000	Product Drawing 3D PDF	13 – 18 mm	NPT 3/4"	13 mm

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Cable Gland Product Type Cable Gland
Cable Gland & Accessory Style Standard EMC
Sealable Yes

Body Features

Primary Product Material Brass
Primary Product Plating Material Nickel

Dimensions

Clamping Diameter Range (mm) 5 – 10, 6 – 12, 30 – 38, 3 – 6.5, 13 – 18, 22 – 32, 4 – 8, 10 – 14, 34 – 44, 18 – 25
Outer Thread Size M12 x 1.5, M16 x 1.5, M20 x 1.5, M25 x 1.5, M32 x 1.5, M40 x 1.5, M50 x 1.5, M63 x 1.5, NPT 1/2", NPT 1", NPT 3/4", NPT 3/8", PG11, PG135, PG16, PG21, PG29, PG36, PG42, PG48, PG 7, PG 9
Thread Length (mm) 6, 6.5, 7, 7.2, 8, 9, 10, 11.5, 12, 13, 14, 15, 16, 18

Usage Conditions

Operating Temperature Range -20 – 100 °C [ -4 – 212 °F ]

Industry Standards

UL Flammability Rating UL 94V-2
IP Rating IP68

Packaging Features

Packaging Method Bag

Reference Number

TE Internal Number CAT-AB0-E21613
