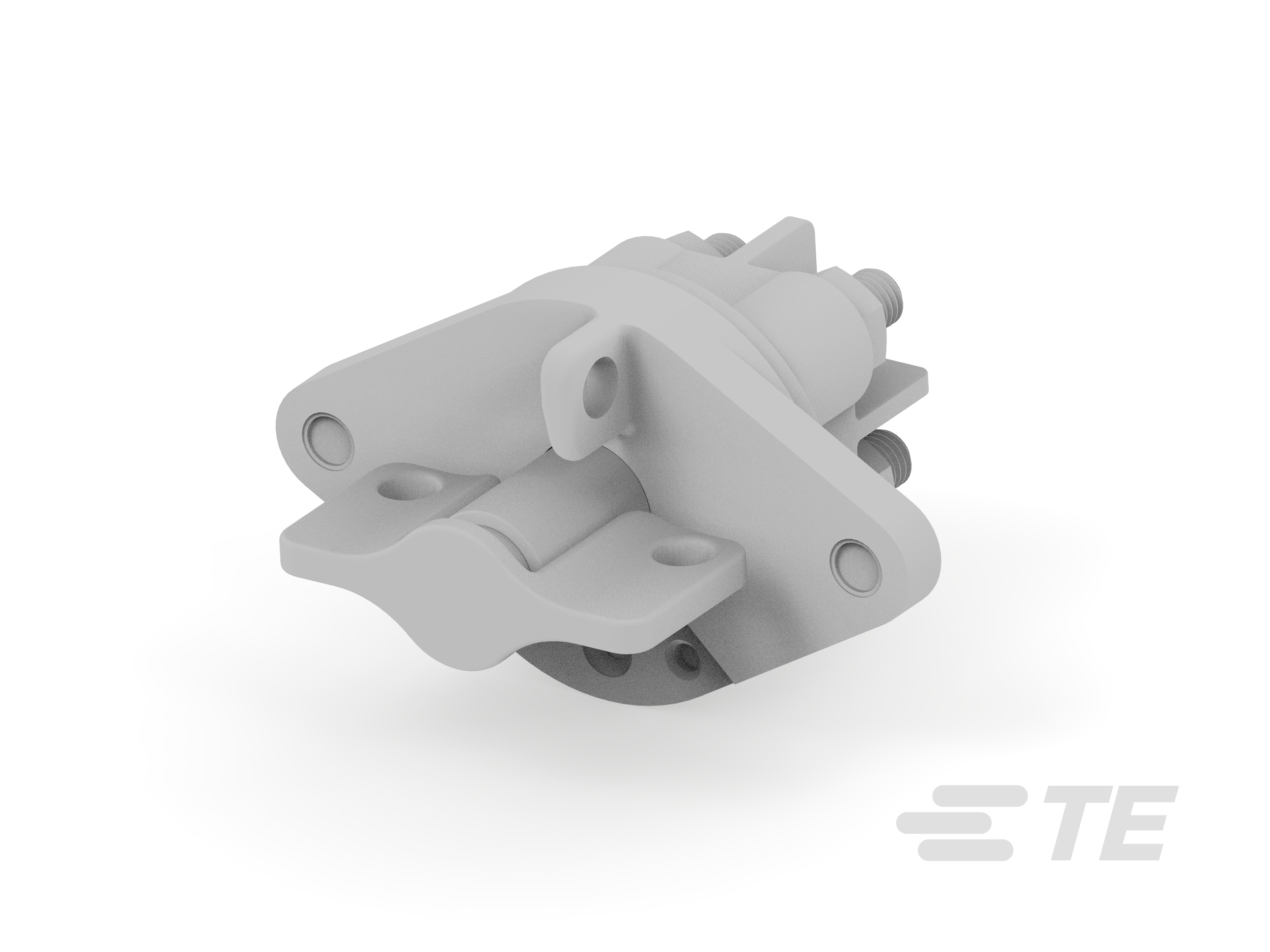

Battery Disconnector, 200A, 2 Pole

Battery Disconnector, 200A, 2 Pole-CAT-AL4-SBD352002
Series 35 200A battery disconnector with two poles, a lever-style activator, and rotary-style switch. Sealing meets the IP67 and IP6K9K standards.
More Less

Product Features

  • Switch Main Contact Current Rating (A): 200, 300, 250

  • Operating Voltage (VDC): 32

  • Number of Poles : 2

  • Termination Thread Size : M8, M10

  • Number of Auxiliary Contacts : 0

Available from

LADD Inc
Overview

KISSLING Battery Disconnector

Series 35 / 200A

Our manually operated battery disconnector up to 200 amps meets the most demanding requirements in all vehicle applications. The nominal current ratings refer to continuous DC current at up to 100% duty cycle and the switches are built to switch under full load. All series 35 battery disconnectors are sealed with a technology that meets the IP67 and IP6K9K (steam preassure cleaning) standards and the switches are designed to operate at temperatures between -40°C and +85°C.

Key Features

  • Sealed housing conforms to IP6K9K
  • Robust design
  • 6G shock and 4G vibration resistant
  • Main contact current rated for continuous current and 100% duty cycle
  • Battery disconnection under load in case of an emergency
  • Variable or scalable mounting options
  • Safety in the vehicle service by so called “LOCK” options (only two pole)
Features

Please review product documents or contact us for the latest agency approval information.

Dimensions

  • Screw Hole Diameter (mm) 7.2, 6.5, 8.5

  • Screw Hole Diameter (in) .256, .283, .335

  • Centerline Between Flange Screw Holes (mm) 62, 120, 100

  • Centerline Between Flange Screw Holes (in) 4.724, 2.44, 3.937

Product Type Features

  • Sealed Device  Yes

Usage Conditions

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

Electrical Characteristics

  • Operating Voltage (VAC) 20

  • Switch Main Contact Current Rating (A) 200, 300, 250

  • Operating Voltage (VDC) 32

Configuration Features

  • Number of Poles  2

  • Number of Auxiliary Contacts  0

  • Switch Keying Option  Not Removable, Removable With Chain, Removable Without Chain

Mechanical Attachment

  • Termination Thread Size  M8, M10

  • Switch Mounting Option  Angled Bracket, Center Mount, Long Flange

  • Operating Handle Type  Lever, Pointer Key, T-Handle, Double Wing, 45° Turn Off

Body Features

  • Operating Handle Color  Black, Red, Yellow

Other

  • EU RoHS Compliance  Not Compliant, Compliant with Exemptions

  • EU ELV Compliance  Compliant, Compliant with Exemptions

Reference Number

  • TE Internal Number CAT-AL4-SBD352002
