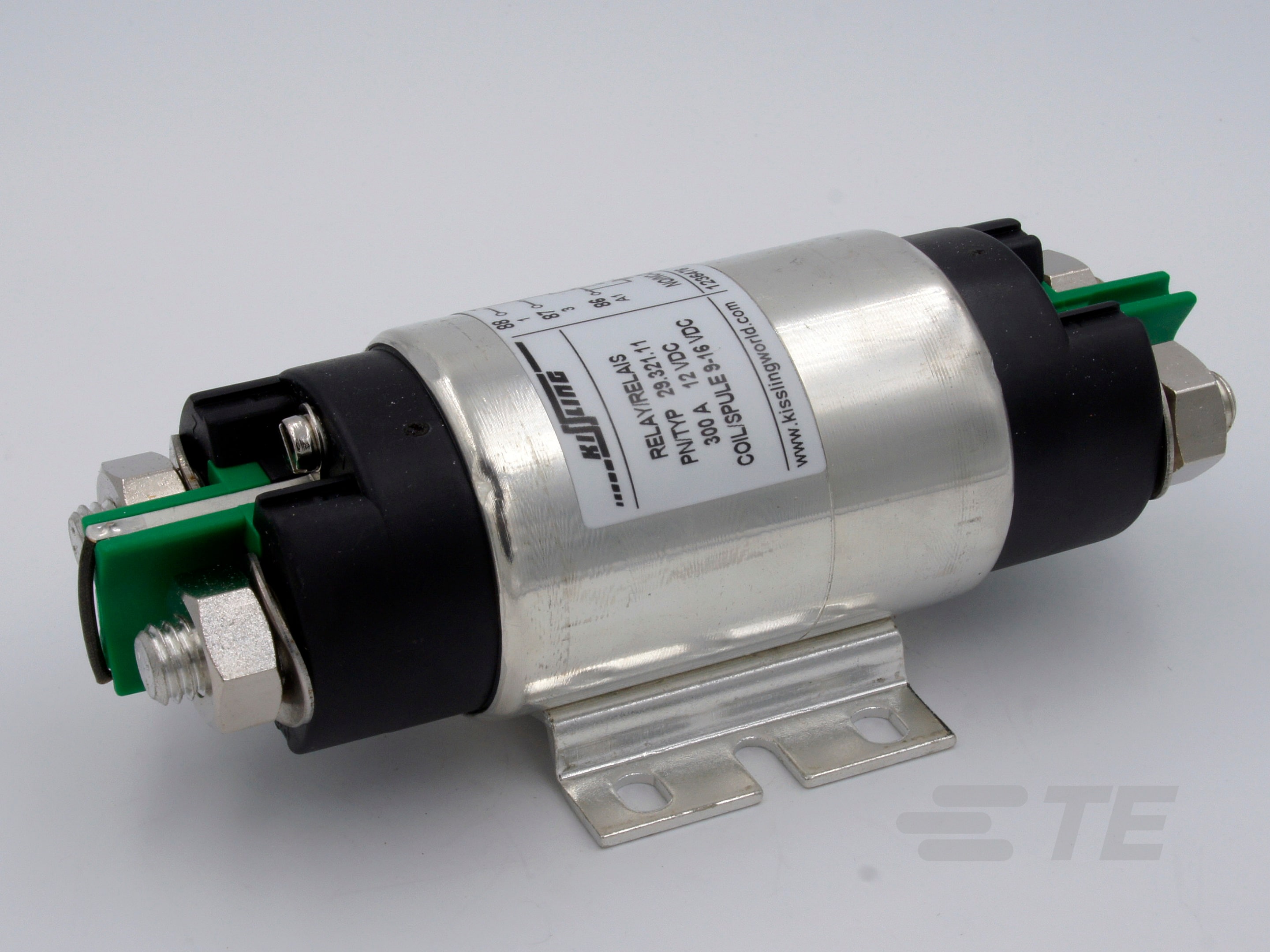

Power Relay, 300A, Standard, Monostable, DC

Power Relay, 300A, Standard, Monostable, DC-CAT-AL6-KSPR29300
The Series 29 300A monostable relay features a single coil and 6G shock and 4G vibration resistance. Sealed housing conforms to IP67 and IP6K9K standards.
More Less

Product Features

  • Relay & Contactor Type : General Purpose Power Relay

  • Current Type : DC

  • Coil Magnetic System : Monostable

  • Contact Arrangement : 1 Form C SPDT-CO, 1 Form A SPST-NO, 2 Form A DPST-NO, 1 Form X SPST-NO-DM, 1A (NO) + 1B (NC)

  • Contact Current Rating (A): 300

Available from

LADD Inc
Overview

KISSLING Single Pole Power Relays

Series 29 / 300A

The economical 29 series single coil relays with 300 amps are developed using our competence and expertise gathered over decades of manufacturing to meet even the most demanding operating requirements. This single coil system relay features high shock and vibration resistance predominantly from its careful design and an optimized magnetic circuit. The sealing technology used in these relays meets both the IP67 and IP6K9K (Steam pressure cleaning) protection standard. This relay series is well suited for various applications in severe conditions.

Key Features

  • Sealed housing conforms to IP6K9K
  • Robust design
  • Minimized coil current
  • Variety of configuration options
  • 6G shock and 4G vibration resistant
  • Main contact current rated for continuous current and 100% duty cycle
  • Efficient coil and magnetic circuit design with switching properties and holding current requirements
Features

Please review product documents or contact us for the latest agency approval information.

Electrical Characteristics

  • Contact Switching Load (Min)  1A @ 12V

  • Coil Resistance (Ω) 62, 36, 15

  • Contact Current Rating (A) 300

  • Coil Voltage Rating (VDC) 32, 16, 18, 9, 24, 28

  • Contact Voltage Rating (VDC) 24, 28, 12

  • Coil Power Rating DC (W) 10

Packaging Features

  • Packaging Method  Carton

Contact Features

  • Contact Material  Ag Alloy, Silver Alloy

Other

  • Contact Current Class (A) 300

  • EU RoHS Compliance  Compliant with Exemptions

  • EU ELV Compliance  Compliant with Exemptions

Dimensions

  • Product Height (mm) 106, 108, 55.65, 76.5, 55.5

  • Product Height (in) 4.25, 3.01, 2.18, 2.19, 4.17

  • Product Length (mm) 101, 120, 143, 100, 78, 134.5, 115

  • Product Length (in) 5.62, 3.97, 4.52, 3.07, 5.29, 3.93, 4.72

  • Product Width (mm) 94, 84, 55, 60, 62

  • Product Width (in) 2.36, 2.16, 3.7, 3.3, 2.44

Mechanical Attachment

  • Product Mounting Feature Type  Mounting Brackets, Flange with Mounting Holes

  • Product Mount Type  Panel Mount, Chassis Mount

Configuration Features

  • Coil Special Features  Coil Suppression Diode, None

  • Contact Number of Poles  2, 1

  • Contact Arrangement  1 Form C SPDT-CO, 1 Form A SPST-NO, 2 Form A DPST-NO, 1 Form X SPST-NO-DM, 1A (NO) + 1B (NC)

Product Type Features

  • Relay & Contactor Type  General Purpose Power Relay

Operation/Application

  • Current Type  DC

  • Coil Magnetic System  Monostable

Reference Number

  • TE Internal Number CAT-AL6-KSPR29300
