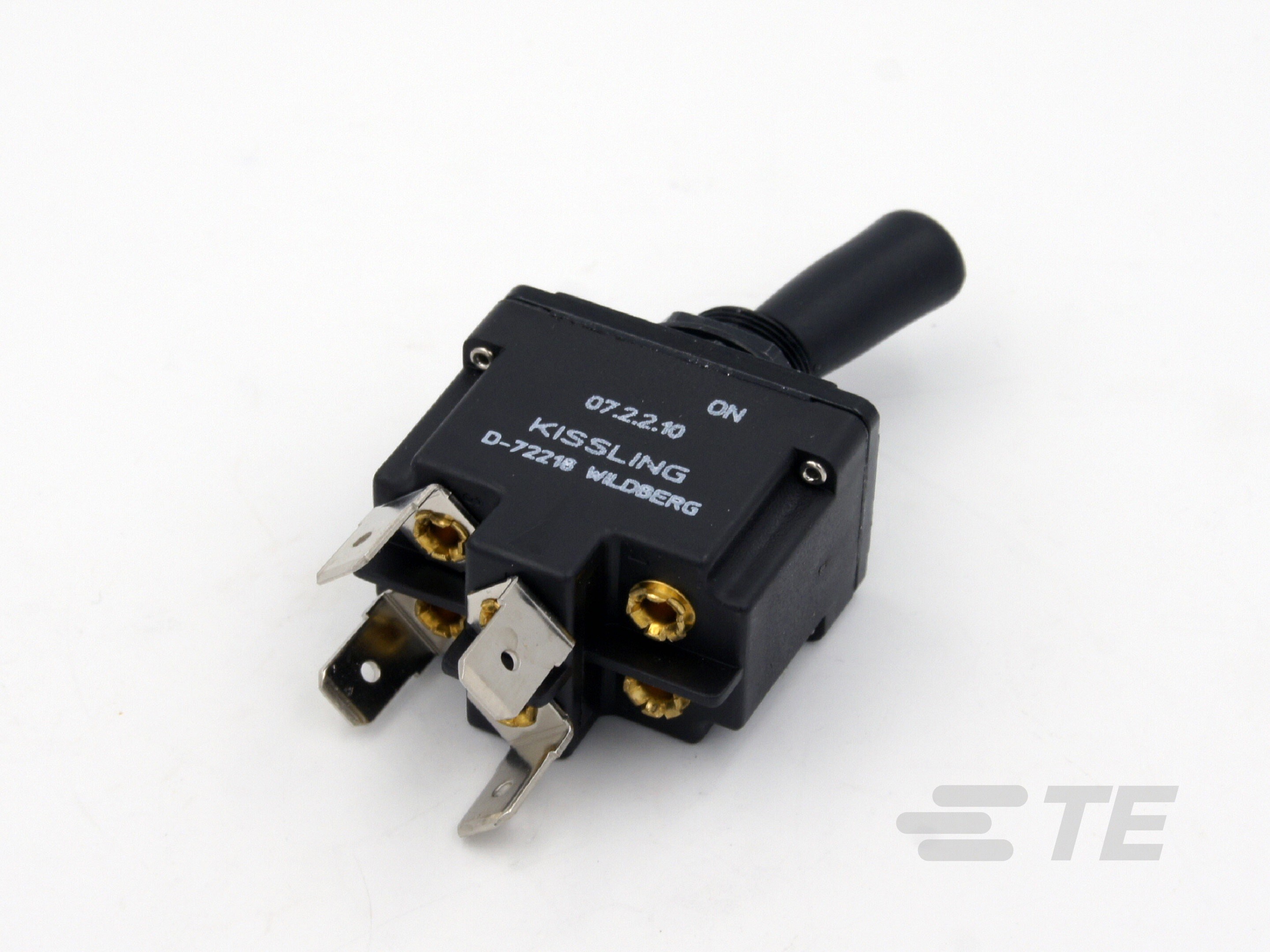

Toggle Switch 2-Pole, Sealed, Lever, Toggle

Toggle Switch 2-Pole, Sealed, Lever, Toggle-CAT-AL8-KSTS072
The Series 07 Toggle Switch with two-pole switching features a lever-style toggle. The housing of the series is made of thermoplastic and meets IP65/IP6K5 standards.
More Less

Product Features

  • Contact Current Rating (A): 20, 15, 10

  • Configuration (Pole-Throw) : Double Pole - Single Throw, Double Pole - Double Throw

  • Operating Function : On (On), On On (On), (On) Off (On), On On, (On) On (On), On On On, Off On, On Off On, (On) Off

  • Number of Positions : 2, 3

  • Operating Voltage (VDC): 28

Available from

LADD Inc
Overview

KISSLING Toggle Switch

Series 07

The KISSLING toggle switches from TE Connectivity’s product family have been developed under strict guidelines to meet international standards. This series of toggle switches is mainly used as robust, industrial and durable control switches in commercial vehicles. The housing of the Series 07 is made of thermoplastic and meets IP65/IP6K5 protection class standards. All these switches are sealed themselves and we offer additional sealing rings for improved mounting solutions and optional bellows for the handles. Our broad selection of toggles includes many options for switching configuration, termination type, load carrying capabilities and locking combinations.

Key Features

  • High quality silver alloy or gold plated contacts
  • Sealing technology meets IP65/IP6K5
  • 2- and 3-position switch actions
  • Variety of available switching styles
  • Locking options for individual needs
  • High quality silver alloy or gold plated contacts
  • Sealing technology meets IP65/IP6K5
  • 2- and 3-position switch actions
  • Variety of available switching styles
  • Locking options for individual needs
  • High quality silver alloy or gold plated contacts
  • Sealing technology meets IP65/IP6K5
  • 2- and 3-position switch actions
  • Variety of available switching styles
  • Locking options for individual needs
    • Features

    Please review product documents or contact us for the latest agency approval information.

    Industry Standards

    • IP Rating  IP6K5

    Body Features

    • Actuator Finish  Thermoplastic

    • Sealing Method  Strippable Transparent Protective Seal

    • Product Orientation  Vertical, Horizontal

    • Bushing Style  Threaded

    • Bushing Thread Size  M12 x .75

    Product Type Features

    • Switch Connection Type  Quick Connect Terminal, DIN Connector

    • Sealed Device  Yes

    • Toggle Style  Round, Lever

    • Switch Type  Toggle Switch

    Operation/Application

    • Center Toggle Position  None, 0, 0, 1-2, 5-6

    • Keyway Toggle Actuation Position  1-2, 4-5, 1-2 (Momentary), 4-5, 0

    • Opposite Keyway Toggle Position  2-3, 5-7, 2-3 (Momentary), 5-7

    Electrical Characteristics

    • Contact Current Rating (A) 20, 15, 10

    • Operating Voltage (VDC) 28

    • Operating Voltage (VAC) 115

    Configuration Features

    • Configuration (Pole-Throw)  Double Pole - Single Throw, Double Pole - Double Throw

    • Operating Function  On (On), On On (On), (On) Off (On), On On, (On) On (On), On On On, Off On, On Off On, (On) Off

    • Number of Positions  2, 3

    Mechanical Attachment

    • Product Mount Type  Panel Mount

    Housing Features

    • Process Sealed  Yes

    Contact Features

    • Contact Base Material  Gold, Copper

    • Switch Contact Plating Material  Silver Tin Oxide, Silver Alloy

    Other

    • EU RoHS Compliance  Compliant with Exemptions

    • EU ELV Compliance  Compliant with Exemptions

    Reference Number

    • TE Internal Number CAT-AL8-KSTS072
