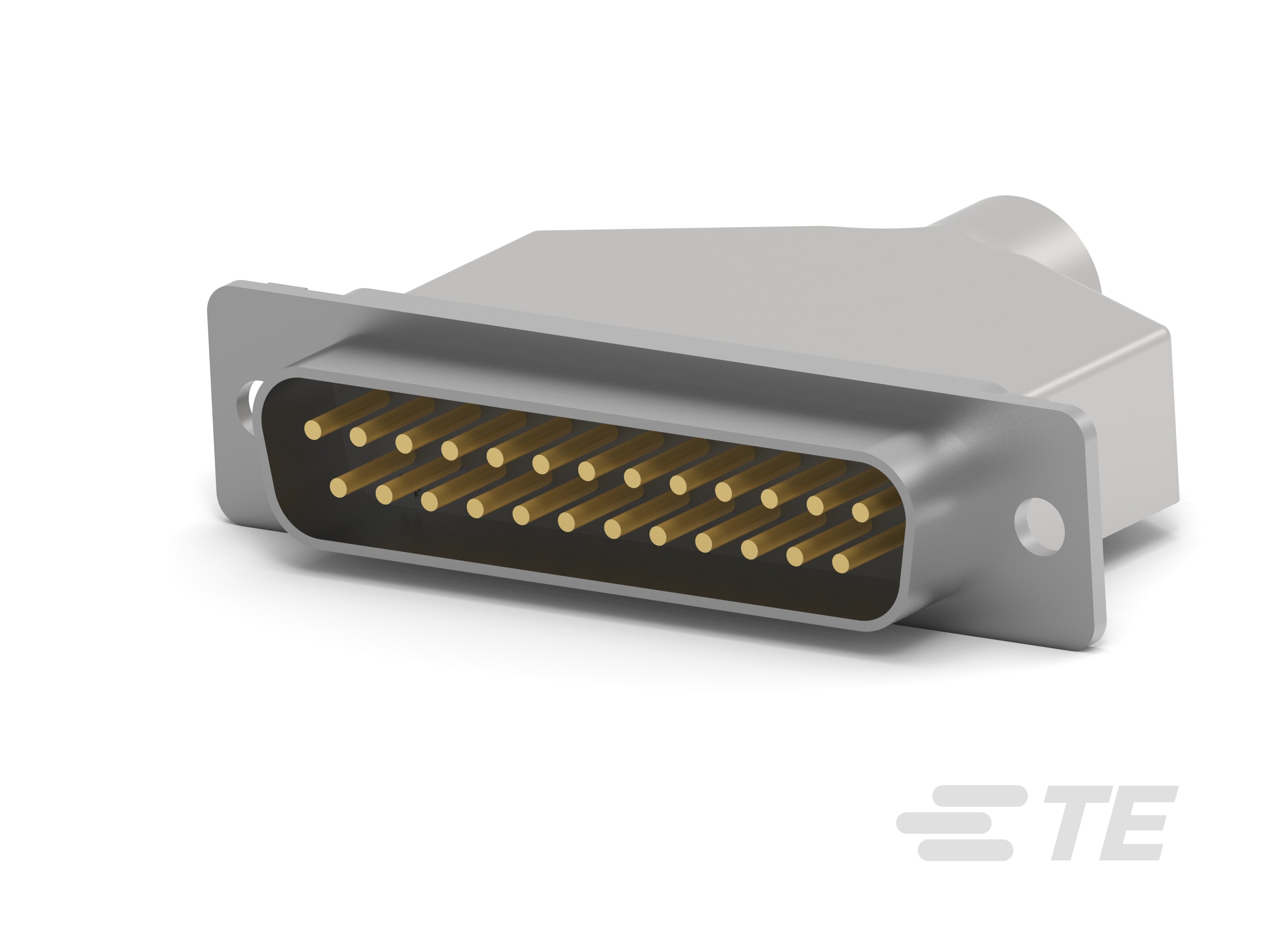

IDC D-Sub: Connector Kit, Plug, Wire to Wire, Signal, 2.77 mm

IDC D-Sub: Connector Kit, Plug, Wire to Wire, Signal, 2.77 mm-CAT-AM7-248H4
IDC D-sub plug connector kit, intended for wire to wire applications with Insulation Displacement Crimp (IDC) mass termination. Has a centerline pitch of 2.77 mm and used for signal circuit application.
More Less

Product Features

  • Connector & Housing Type : Plug

  • Solid Wire Size (AWG): 30 – 26, 26 – 22

  • Solid Wire Size (mm²): .05 – .13, .13 – .32

  • Shielded : Yes

  • Connector System : Cable-to-Cable

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Package

  • Packaging Quantity  1

Product Type Features

  • Shell Material Configuration  Front Metal Shell, All Plastic, Full Metal Shell

  • Ground Feature Type  Grounding Indents

  • Connector & Housing Type  Plug

  • Connector System  Cable-to-Cable

  • Connector Product Type  Connector Kit

  • Connector Shell Size  1, 2, 4, 3

  • Connector & Contact Terminates To  Wire & Cable

Body Features

  • Mating Retention Feature Material  Zinc Alloy

  • Cover Material  Polypropylene

  • Shell Plating Material  Tin, Tin over Copper

  • Insert Material  Thermoplastic

  • Strain Relief Material  Stainless Steel

  • Shield Plating Material  Tin

  • Cable Exit Angle  180°, 120°

  • Primary Product Color  Black

  • Shield Material  Steel

Contact Features

  • Wire Contact Termination Area Plating Material  Tin

  • Contact Type  Pin

  • Contact Mating Area Plating Material Thickness  .76 µm [ 30 µin ]

  • Contact Options  Installed

  • Contact Base Material  Brass, Phosphor Bronze

  • Contact Underplating Material  Nickel

  • Contact Mating Area Plating Material  Gold, Gold Flash

  • Contact Size  Size 20

  • Contact Current Rating (Max) (A) 2.4, 5, 1.5

Dimensions

  • Accepts Cable Insulation Diameter Range (mm) 6.48 – 11.94, 8.59 – 14.28, 4.83 – 9.53, 5.51 – 11.05, 4.7 – 8.13, 4.19 – 11.56, 4.57 – 11.68

  • Accepts Cable Insulation Diameter Range (in) .18 – .46, .338 – .562, .217 – .435, .165 – .455, .19 – .375, .185 – .32, .255 – .47

  • Compatible Insulation Diameter Range  1.52 mm [ .06 in ]

  • Accepts Cable Diameter (Max) (mm) 11.56, 9.53, 14.27, 11.05

  • Accepts Cable Diameter (Max) (in) .435, .562, .375, .455

  • Solid Wire Size (AWG) 30 – 26, 26 – 22

  • Solid Wire Size (mm²) .05 – .13, .13 – .32

  • Wire Size (mm²) .05 – .15, .15 – .4

  • Wire Size (AWG) 30 – 26, 26 – 22

Operation/Application

  • Circuit Application  Signal

  • Shielded  Yes

Mechanical Attachment

  • Wire Insulation Support  With

  • Mating Retention Type  Jackscrew, Mounting Holes

  • Thread Size  4-40 UNC 2B, 4-40

  • Mating Retention  With

  • Connector Mounting Type  Cable Mount (Free-Hanging)

Housing Features

  • Housing Material  Polyester GF, Nylon GF

  • Shell Material  Steel

  • Centerline (Pitch) (mm) 2.77, 1.38

  • Centerline (Pitch) (in) .054, .109

Industry Standards

  • UL Flammability Rating  UL 94V-0

Termination Features

  • Termination Method to Wire & Cable  Insulation Displacement (IDC)

Configuration Features

  • Number of Positions  15, 37, 25, 9

  • Number of Rows  2

  • Compatible With Wire & Cable Type  Round Jacketed Cable, Discrete Wire

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Other

  • EU RoHS Compliance  Compliant, Compliant with Exemptions

  • EU ELV Compliance  Compliant, Compliant with Exemptions

Reference Number

  • TE Internal Number CAT-AM7-248H4
