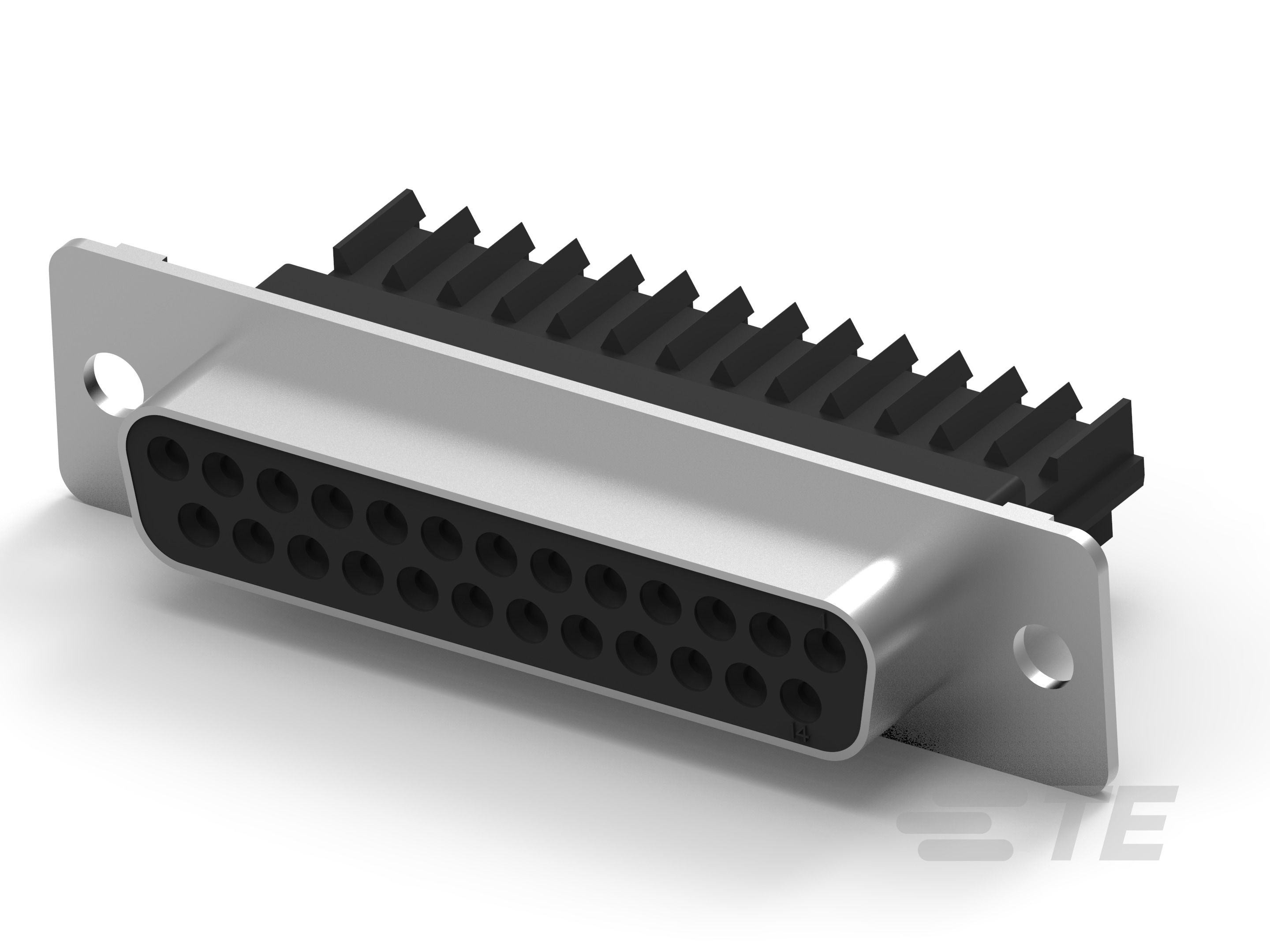

IDC D-Sub: Receptacle Assembly, Wire to Wire, Signal, 2.77 mm

IDC D-Sub: Receptacle Assembly, Wire to Wire, Signal, 2.77 mm-CAT-AM7-248H5
IDC D-sub connector receptacle assembly, intended for wire to wire applications with Insulation Displacement Crimp (IDC) mass termination. Has a centerline pitch of 2.77 mm and used for signal circuit application.
More Less

Product Features

  • Connector & Housing Type : Receptacle

  • Solid Wire Size (AWG): 30 – 26, 22 – 20, 26 – 22

  • Shielded : No

  • Connector System : Wire-to-Wire

  • Number of Positions : 15, 37, 25

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Package

  • Packaging Quantity  56, 84, 112

Product Type Features

  • Shell Material Configuration  All Plastic, Full Metal Shell

  • Connector & Housing Type  Receptacle

  • Connector System  Wire-to-Wire

  • Connector Product Type  Connector Assembly

  • Connector Shell Size  1, 4, 3

  • Connector & Contact Terminates To  Wire & Cable

Operation/Application

  • Circuit Application  Signal

  • Shielded  No

Contact Features

  • Contact Type  Socket

  • Contact Mating Area Plating Material Thickness  .76 µm [ 30 µin ]

  • Contact Mating Area Plating Material Thickness (µin) 30

  • Contact Options  Installed

  • Contact Size  Size 20

  • Contact Current Rating (Max) (A) 2.4, 3, 1.5

Body Features

  • Shell Plating Material  Tin

  • Insert Material  Thermoplastic

  • Cable Exit Angle  180°

Housing Features

  • Housing Material  Thermoplastic

  • Shell Material  Steel

  • Centerline (Pitch) (mm) 2.77, 1.38

  • Centerline (Pitch) (in) .054, .109, .055

Mechanical Attachment

  • Mating Retention Type  Mounting Holes

  • Mating Retention  With

  • Connector Mounting Type  Cable Mount (Free-Hanging), Panel Mount

Industry Standards

  • UL Flammability Rating  UL 94V-0

Termination Features

  • Termination Method to Wire & Cable  Insulation Displacement (IDC)

Dimensions

  • Solid Wire Size (AWG) 30 – 26, 22 – 20, 26 – 22

  • Wire Size (mm²) .05 – .15, .15 – .4, .4 – .6

  • Wire Size (AWG) 22 – 20, 30 – 26, 26 – 22

Configuration Features

  • Number of Positions  15, 37, 25

  • Number of Rows  2

  • Compatible With Wire & Cable Type  Round Jacketed Cable, Discrete Wire

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-AM7-248H5
