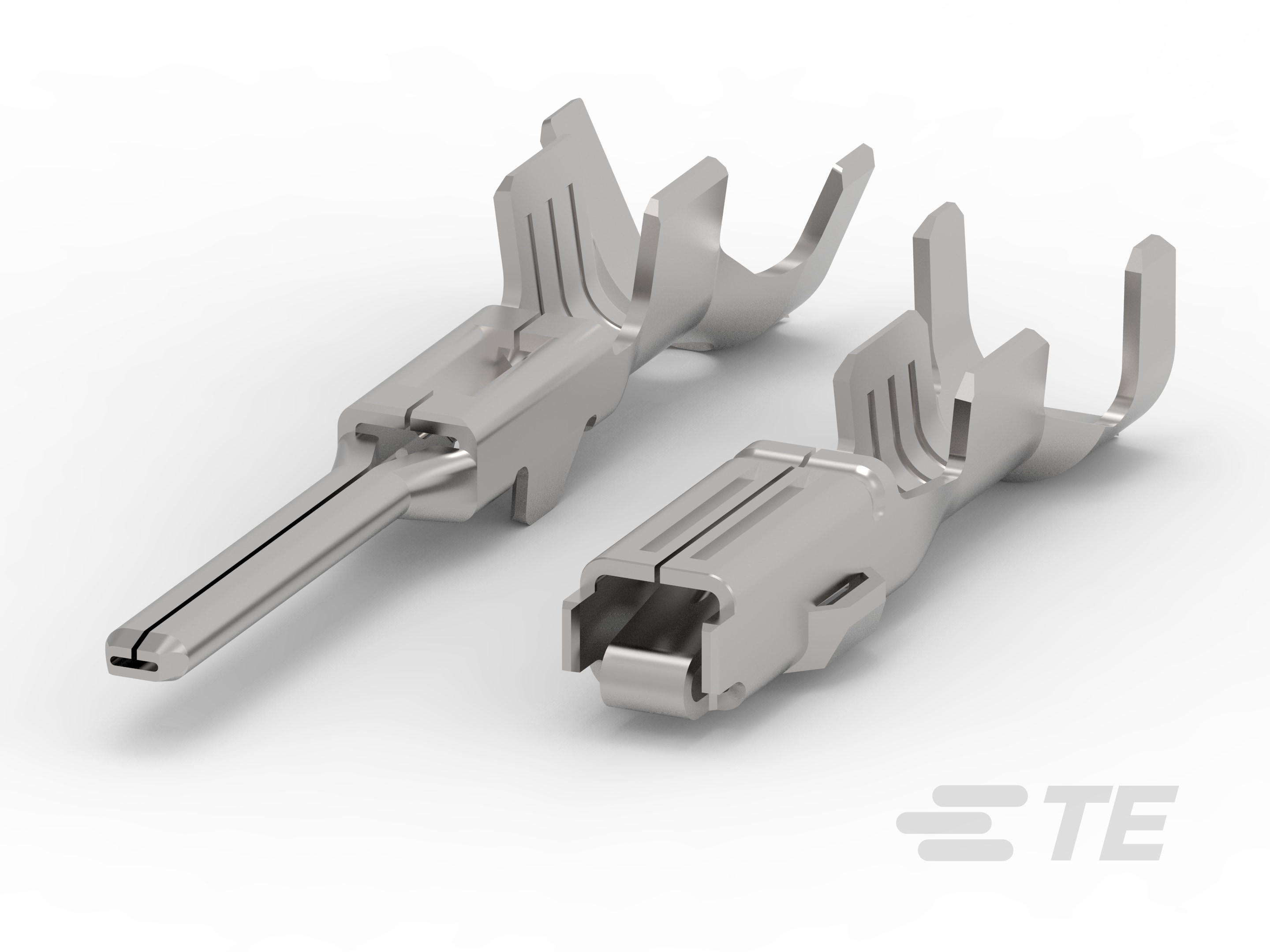

AMP SUPERSEAL 1.5MM, RECEPTACLE AND TAB

Digital Datasheet|

Product Features

Packaging Method : Bag, Reel
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
Termination Method to Wire & Cable : Crimp
Customer Preferred Contact : No
Operating Temperature (Max) (°C): 120, 100, 110, 90, 80, 125, 105, 85
Operating Temperature (Max) (°F): 212, 248, 185, 221, 230, 257, 194, 176

Available from

Product	TE Part #	Documents	Terminal Type	Wire Size	Wire Size	Sealable	Terminal Seal Type	Wire Size Search	Wire Size Search	Primary Locking Feature	Interface Plating	Operating Temperature (Max)	Tab Length	Operating Temperature Range
MINI MIC RCPT CONTACT >1,5-	282466-1	Product Drawing 3D PDF	Receptacle	15 – 13 AWG	1.5 – 2.5 mm²	Yes	Single Wire Seal (SWS)	2 mm², 1.5 mm², 2.5 mm²	14 AWG, 13 AWG, 15 AWG	Locking Lance	Tin (Sn)	125 °C	-	-40 – 125 °C
MINI MIC SRS TAB CONT	282404-1	Product Drawing 3D PDF	Tab	22 – 20 AWG	.35 – .5 mm²	Yes	Single Wire Seal (SWS)	.5 mm², .4 mm², .35 mm²	21 AWG, 20 AWG, 22 AWG	Clean Body	Tin (Sn)	125 °C	22.7 mm	-40 – 125 °C
MINI MIC RCPT CONT.ACT.LP	183035-1	Product Drawing 3D PDF	Receptacle	22 – 20 AWG	.35 – .5 mm²	Yes	Single Wire Seal (SWS)	.5 mm², .35 mm², .4 mm²	22 AWG, 20 AWG, 21 AWG	Clean Body	Tin (Sn)	90 °C, 80 °C, 125 °C, 120 °C, 110 °C, 100 °C, 85 °C, 105 °C	-	-40 – 125 °C
MINI MIC RECPT C	183025-1	Product Drawing 3D PDF	Receptacle	18 – 15 AWG	.75 – 1.5 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², .75 mm², 1 mm², 1.5 mm²	15 AWG, 18 AWG, 17 AWG, 16 AWG	Clean Body	Tin (Sn)	100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 90 °C, 80 °C, 85 °C	-	-40 – 125 °C
MINI MIC TAB CONTACT	282109-1	Product Drawing 3D PDF	Tab	18 – 15 AWG	.75 – 1.5 mm²	Yes	Single Wire Seal (SWS)	1.5 mm², .75 mm², 1 mm², 1.25 mm²	16 AWG, 17 AWG, 15 AWG, 18 AWG	Clean Body	Tin (Sn)	125 °C	22.7 mm	-40 – 125 °C
MINI MIC TAB CONTACT L.P.	183036-1	Product Drawing 3D PDF	Tab	22 – 20 AWG	.35 – .5 mm²	Yes	Single Wire Seal (SWS)	.4 mm², .35 mm², .5 mm²	21 AWG, 20 AWG, 22 AWG	Clean Body	Tin (Sn)	100 °C, 85 °C, 105 °C, 125 °C, 120 °C, 80 °C, 90 °C, 110 °C	-	-40 – 125 °C
MINI MIC TAB CONTACT	282109-3	Product Drawing 3D PDF	Tab	18 – 15 AWG	.75 – 1.5 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², 1 mm², 1.5 mm², .75 mm²	16 AWG, 17 AWG, 18 AWG, 15 AWG	Clean Body	Gold (Au)	125 °C	22.7 mm	-40 – 125 °C
MINI MIC TAB CONTACT	282109-5	Product Drawing 3D PDF	Tab	18 – 15 AWG	.75 – 1.5 mm²	Yes	Single Wire Seal (SWS)	1.5 mm², 1.25 mm², 1 mm², .75 mm²	18 AWG, 16 AWG, 17 AWG, 15 AWG	Clean Body	Tin (Sn)	80 °C, 110 °C, 120 °C, 125 °C, 100 °C, 90 °C, 105 °C, 85 °C	-	-40 – 125 °C
MINI MIC RCPT CONTACT	282110-1	Product Drawing 3D PDF	Receptacle	18 – 15 AWG	.75 – 1.5 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², .75 mm², 1 mm², 1.5 mm²	18 AWG, 15 AWG, 16 AWG, 17 AWG	Locking Lance	Tin (Sn)	125 °C	-	-40 – 125 °C
MINI MIC SRS REC CONT HYBRD	282438-1	Product Drawing 3D PDF	Receptacle	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 19 AWG, 18 AWG, 17 AWG	Clean Body	Tin (Sn)	110 °C, 100 °C, 85 °C, 125 °C, 120 °C, 90 °C, 105 °C, 80 °C	-	-40 – 125 °C
MINI MIC TAB CONTACT >1,5-	282465-1	Product Drawing 3D PDF	Tab	15 – 13 AWG	1.5 – 2.5 mm²	Yes	Single Wire Seal (SWS)	1.5 mm², 2.5 mm², 2 mm²	14 AWG, 15 AWG, 13 AWG	Clean Body	Tin (Sn)	125 °C	22.7 mm	-40 – 125 °C
MINI MIC TAB L.P.	183024-1	Product Drawing 3D PDF	Tab	18 – 15 AWG	.75 – 1.5 mm²	Yes	Single Wire Seal (SWS)	1 mm², 1.25 mm², 1.5 mm², .75 mm²	16 AWG, 18 AWG, 17 AWG, 15 AWG	Clean Body	Tin (Sn)	80 °C, 90 °C, 85 °C, 105 °C, 100 °C, 110 °C, 120 °C, 125 °C	-	-40 – 125 °C
MINI MIC SRS REC CONT	282403-1	Product Drawing 3D PDF	Receptacle	22 – 20 AWG	.35 – .5 mm²	Yes	Single Wire Seal (SWS)	.5 mm², .35 mm², .4 mm²	21 AWG, 20 AWG, 22 AWG	Locking Lance	Tin (Sn)	125 °C	-	-40 – 125 °C
MINI MIC TAB CONT. 0,5-1,0	282440-1	Product Drawing 3D PDF	Tab	20 – 17 AWG	.5 – 1 mm²	No	-	.75 mm², .5 mm², .6 mm², 1 mm²	20 AWG, 17 AWG, 19 AWG, 18 AWG	Clean Body	Tin (Sn)	-	22.7 mm	-
MINI MIC TAB CTC GOLD PLATED V	282404-3	Product Drawing 3D PDF	Tab	22 – 20 AWG	.35 – .5 mm²	Yes	Single Wire Seal (SWS)	.35 mm², .4 mm², .5 mm²	22 AWG, 21 AWG, 20 AWG	Clean Body	Gold (Au)	125 °C	22.7 mm	-40 – 125 °C

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Primary Locking Feature Clean Body, Locking Lance
Sealable Yes, No
Receptacle Style 180°

Body Features

Terminal Seal Type Single Wire Seal (SWS)

Contact Features

Wire Contact Termination Area Plating Material Tin, Gold
Typical Current Rating (A) 6, 11, 14
Terminal Type Tab, Receptacle
Interface Plating Tin (Sn), Gold (Au)
Contact Fabrication Stamped & Formed
Mating Tab Width 1.5 mm [ .059 in ]
Contact Size 1.5mm
Crimp Type F-Crimp
Mating Tab Thickness .8 mm [ .031 in ]

Termination Features

Termination Method to Wire & Cable Crimp
Product Terminates To Wire

Dimensions

Wire Size (mm²) .35 – .5, .5 – 1, .75 – 1.5, 1.5 – 2.5
Compatible Insulation Diameter Range (mm) 1.2 – 2, 1.2 – 1.6, 1.7 – 3.3, 1.7 – 2.4, 2.2 – 2.4
Compatible Insulation Diameter Range (in) .047 – .063, .055 – .067, .055 – .083, .067 – .13, .071 – .13, .075 – .094
Wire Size (AWG) 15 – 13, 18 – 15, 20 – 17, 22 – 20
Wire Size Search (mm²) .35, .4, .5, .6, .75, 1, 1.25, 1.5, 2, 2.5
Tab Length (mm) 22.7
Tab Length (in) .89, .893
Wire Size Search (AWG) 19, 15, 22, 13, 16, 21, 17, 14, 20, 18

Usage Conditions

Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]
Operating Temperature (Max) (°C) 80, 85, 90, 100, 105, 110, 120, 125
Operating Temperature (Max) (°F) 176, 185, 194, 212, 221, 230, 248, 257
Insulation Option Uninsulated

Operation/Application

Compatible With Wire Base Material Copper

Industry Standards

Compatible With Agency/Standards Products LV214

Packaging Features

Packaging Method Bag, Reel
Packaging Quantity 4000, 5000

Other

Customer Preferred Contact No
Terminal Transmits 0 – 24 A (Low Power)

Reference Number

TE Internal Number CAT-AM71-T273
