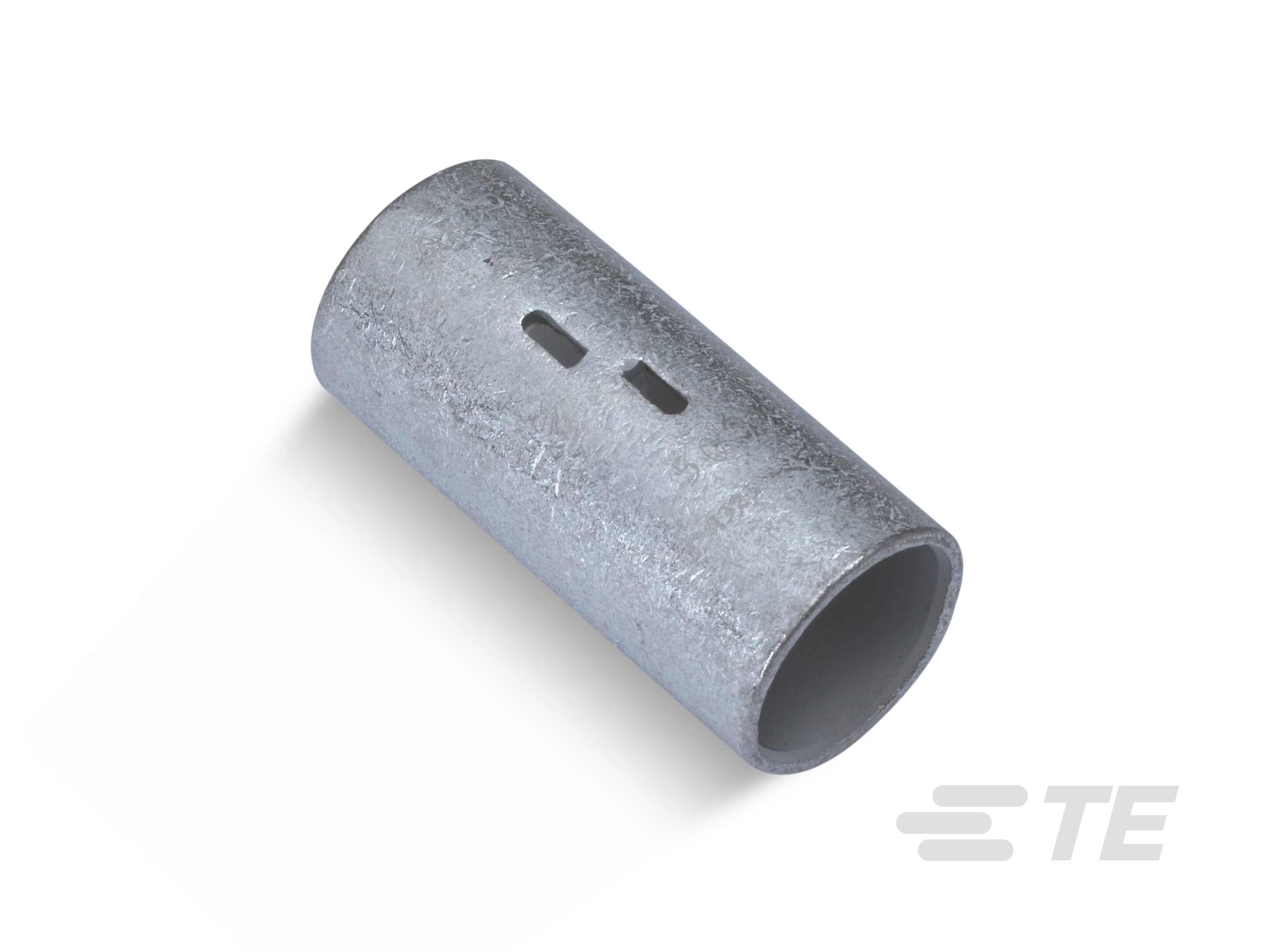

AMPOWER Butt Splice

Please review product documents or contact us for the latest agency approval information.

• Product Weight (g) 17.871, 32.538

• Splice Features  Serrated

• Primary Product Color  Gray

• Terminal Plating Thickness (µin) 150

• Terminal Plating Material  Tin

• Contact Base Material  Copper

• Barrel Type  Closed

• Splice Accessory Type  Splice

• Splice Type  Butt Splice

• Sealable  No

• Compatible With Discrete Wire Type  Stranded

• Outside Diameter (in) .936, .856, 1.316, 1.609, 1.42, 1.204, 1.694, 1.518, 1.08, .802, 1.011, .717

• Wire Size (AWG) 4/0, 2/0, 2, 1/0, 3/0

• Barrel Inside Diameter (mm) 13.28, 29.77, 33.73, 31.8, 21.06, 9.45, 14.88, 17.78, 25.17, 35.56, 22.5, 16.71, 11.89, 19.51, 27.56

• Barrel Inside Diameter (in) 1.252, .886, .991, .586, .372, .829, .468, 1.085, .768, 1.328, .658, 1.4, .523, 1.172, .7

• Wire Size (kcmil) 700, 300, 400, 800, 600, 250, 500, 350

• Wire Size (CMA) 119500 – 150500, 375000 – 450000, 150500 – 190000, 190000 – 231000, 52600 – 83700, 950000 – 1125000, 650000 – 750000, 750000 – 850000, 325000 – 375000, 231000 – 275000, 450000 – 550000, 850000 – 950000, 83700 – 119500, 275000 – 325000, 550000 – 650000

• Product Length (mm) 79.5, 83.06, 91.95, 38.61, 84.07, 31.5, 61.21, 26.67, 75.18, 35.05, 43.69, 55.88, 52.32, 70.87, 49.02, 67.06, 48.01, 72.14, 41.91, 45.47, 66.29

• Product Length (in) 2.79, 2.41, 1.05, 3.13, 1.65, 3.31, 2.64, 1.52, 2.06, 1.72, 2.96, 1.93, 1.89, 1.38, 2.2, 3.27, 3.62, 2.84, 1.24, 2.61, 1.79

• Compatible With Agency/Standards Products  UL

• Compatible With Approved Standards Products  UL E13288

• Splice Configuration  Single to Single

• Compatible With Wire & Cable Type  Discrete Wire

• Termination Method to Wire & Cable  Crimp

• Packaging Quantity  25, 50

• Packaging Method  Box

• Wire Insulation Support  Without

• Insulation Option  Uninsulated

• Compatible With Wire Base Material  Copper

• EU RoHS Compliance  Compliant

• EU ELV Compliance  Compliant
