This product is not currently available. For more information, including distributor inventory, please contact us.

View products below to see detailed pricing

  • Product Listing

This product is not currently available. For more information, including distributor inventory, please contact us.

AMPSEAL Backshells

AMPSEAL Backshells-CAT-AM78-B128
  • AMP
|
  • AMPSEAL

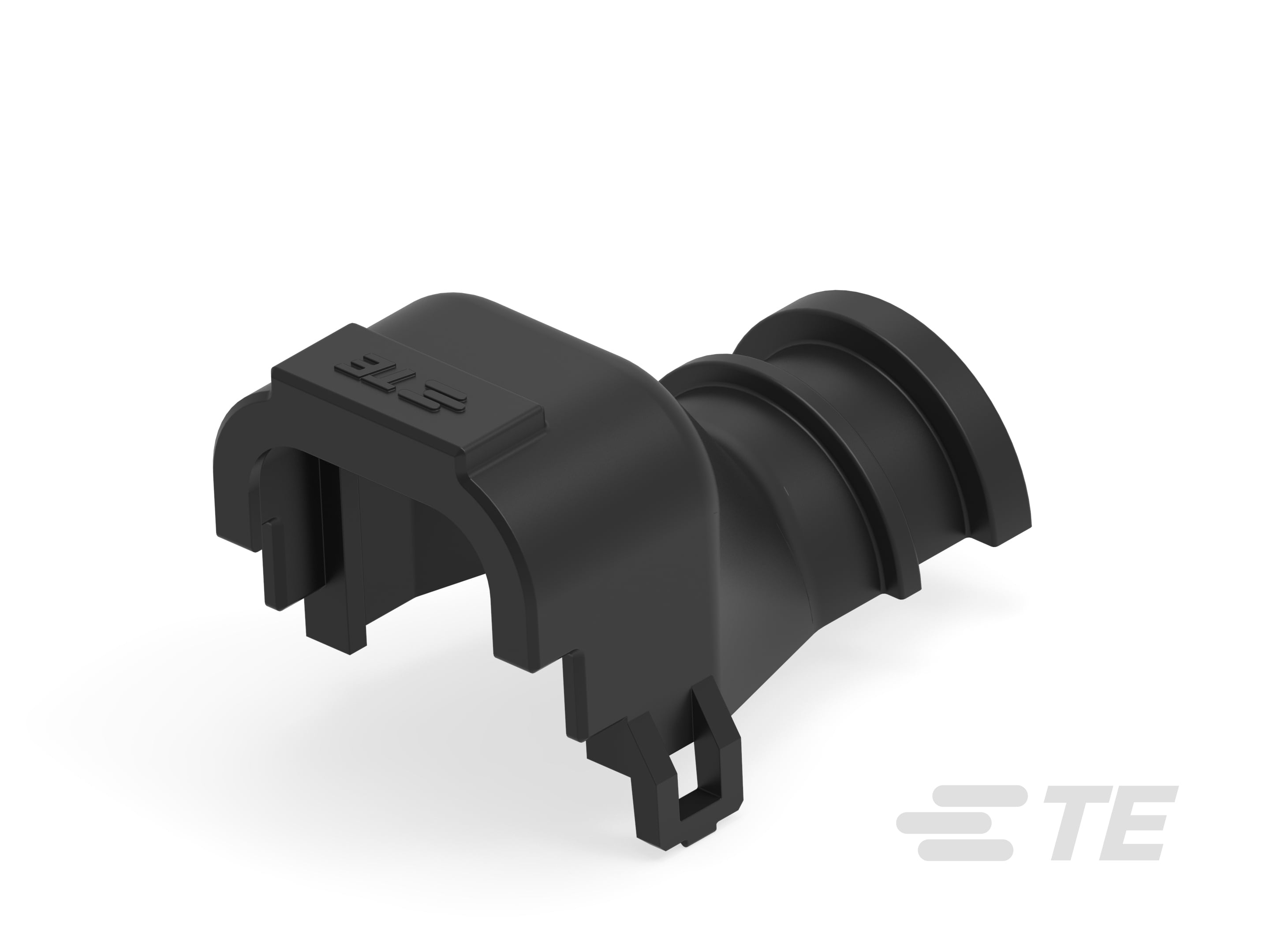

AMPSEAL backshells offer a high level of protection and help reduce wire strain. They are made of heavy-duty thermoplastic and provide enhanced aesthetics for AMPSEAL connector applications. They are available for 8, 14, 23 and 35 position AMPSEAL connectors.
More Less

Product Features

  • Connector Backshell Product Type : Potting Shell/Strain Relief

  • Primary Product Material : PBT GF15

  • Sealable : No

  • Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

  • EU RoHS Compliance : Compliant

Available from

LADD Inc
Overview
AMPSEAL strain relief options require two halves per receptacle housing and easily snap together without the use of tools.

Backshells

AMPSEAL

Our AMPSEAL backshell, deliver reliable connectivity solutions for harsh environment applications. Attached to the back of the connectors, our backshells enhance the environmental protection characteristics of our AMPSEAL series. They seal the termination point between the connector and the cable from environmental factors such as dirt or moisture.

AMPSEAL Series

AMPSEAL Housingse

AMPSEAL Receptacle Housings
AMPSEAL Headerse

AMPSEAL PCB Vertical Headers
AMPSEAL 90 Degree Headers e

AMPSEAL PCB Right Angle Headers
AMPSEAL Contactse

AMPSEAL Crimp Contacts: 1.3 mm

Additional AMPSEAL Products

Commercial & Industrial Vehiclese

Powering the Future of Commercial & Industrial Transportation
Automotive, Truck, Bus & Off-Road Connectorse

Automotive, Truck, Bus, and Off-Road Vehicle Connectors
Data Connectivity

Connected Transportation Solutions
FAQ

Frequently Asked Questions

Q:    What is an AMPSEAL connector?

A:     AMPSEAL connectors provide rugged reliability and environmental sealing. They are available in cable plugs and PCB mount headers that are designed to stand up to high-temperature underhood applications.



Q:    What are the appropriate applications for AMPSEAL connectors?

A:     Truck, bus, off-highway, construction, agriculture, mining, emergency vehicles, forestry, forklift, recreational, marine, motorcycle, power generation



READ MORE FAQS ABOUT AMPSEAL CONNECTORS

Features

Please review product documents or contact us for the latest agency approval information.

Other

  • Serviceable  Yes

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Body Features

  • Cable Exit Angle  180°

  • Primary Product Color  Black

  • Primary Product Material  PBT GF15

Packaging Features

  • Packaging Method  Bag

  • Packaging Quantity  1

Usage Conditions

  • Operating Temperature (Max) (°C) 100, 90, 80, 70, 85, 75, 105

  • Operating Temperature (Max) (°F) 221, 212

  • Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

Industry Standards

  • UL Flammability Rating  UL 94HB

  • IP Rating  IP69

Product Type Features

  • Connector Backshell Product Type  Potting Shell/Strain Relief

  • Sealable  No

Reference Number

  • TE Internal Number CAT-AM78-B128
