AMPSEAL Crimp Contacts: 1.3 mm

AMPSEAL Crimp Contacts: 1.3 mm-CAT-AM78-T273
  • AMP
|
  • AMPSEAL

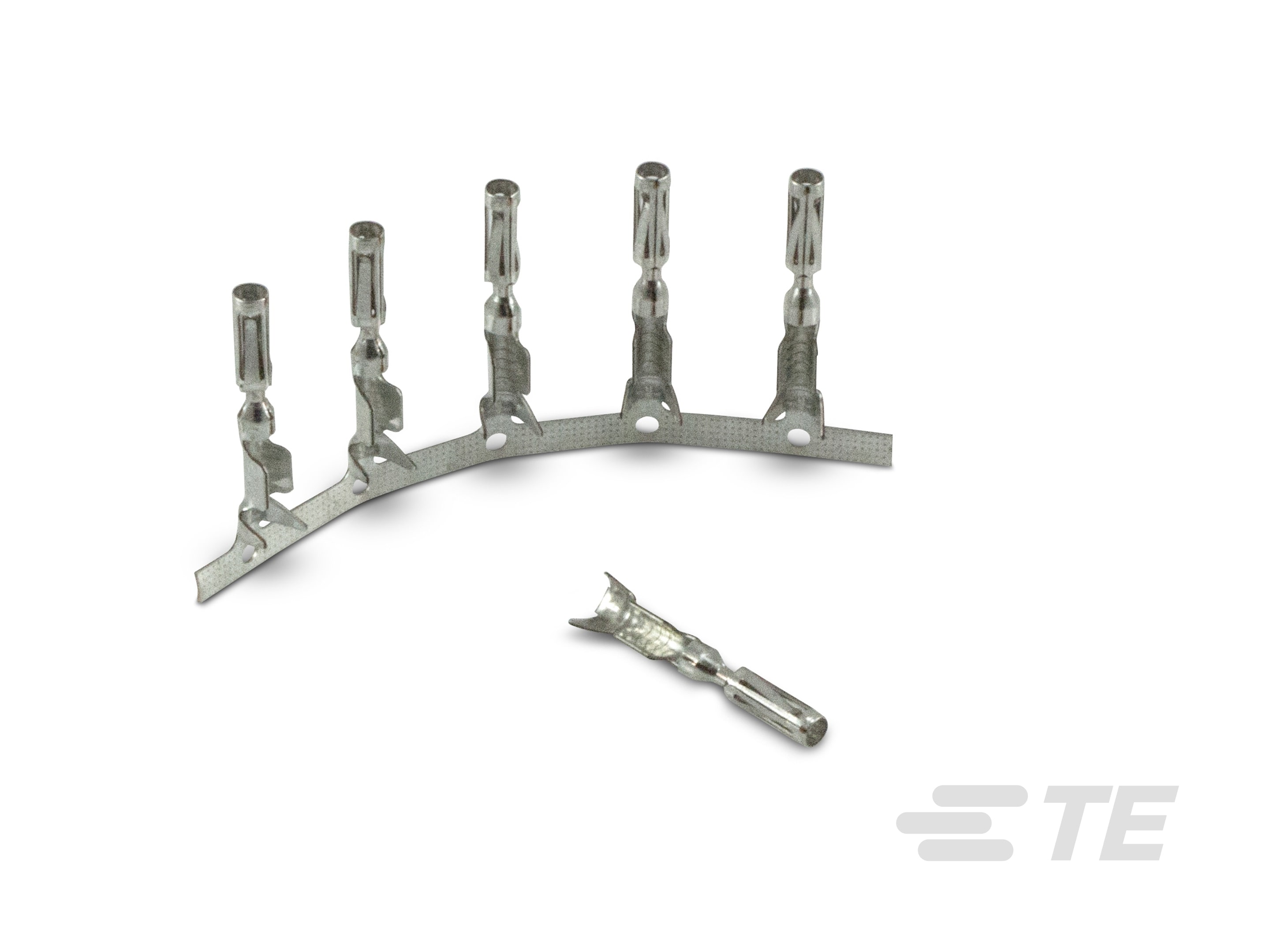

AMPSEAL contacts are 1.3 mm stamped & formed sockets, commonly used for electrical applications for heavy-duty vehicles with our AMPSEAL connector series.
More Less

Product Features

  • Packaging Method : Reel, Package, Bag

  • Operating Temperature Range (°C): -40 – 105, -40 – 125

  • Operating Temperature Range (°F): -40 – 221, -40 – 257

  • Termination Method to Wire & Cable : Crimp

  • Operating Temperature (Max) (°C): 105, 125

  • Operating Temperature (Max) (°F): 221, 257

  • Primary Locking Feature : Integrated in Housing, On the Terminal

Available from

LADD Inc
Overview
AMPSEAL crimp contacts accept 16 to 24 AWG or 1.5 to 0.20 mm² wire.

Socket Crimp Contacts

AMPSEAL

AMPSEAL is a series of contact systems commonly used for electrical applications for industrial, commercial, and off-road vehicles.



The AMPSEAL contacts are made of copper alloy and are available in a tin-plated version for a maximum current of 8 amp and in a gold-plated version for a max current of 17 amps. They are contacts are three beamed, lanceless stamped, and formed which helps prevent the contacts from getting tangled or damaged during assembly.



These crimp contacts are easy to install with a hand-tool crimper and proper crimping can be verified visually and using a measuring tool.

Key Features

  • Stamped & formed style contacts
  • Tin or gold plating for corrosion resistance
  • Current rating up to 17 amps

Material Specifications

  • Contacts are made of copper alloy
  • Tin or gold plating
  1. AMPSEAL (1.3 mm) Contact Crimping Instructions (English)

Learn how to crimp our AMPSEAL (1.3 mm) contacts. Watch this video for step-by-step instructions on crimping the contacts using hand tools.

AMPSEAL Contact Crimping

Performance Specifications

Durability: TE spec 109-27. Mate and unmate specimens for 10 cycles at a maximum rate of 600 cycles per hour. See note



Current Rating: Up to 17 amps gold, up to 8 amps tin, consult TE product document 108-1329.



Contact Retention:TE spec 109-30. Apply an axial load of 115 N to contacts in the axial direction with wedge lock in locked. Contacts shall not dislodge.



Crimp Tensile Strength

Contact Size Tensile Strength
Size 20 80 lbs
Size 18 90 lbs
Size 16 150 lbs



Note: Shall meet visual requirements, show no physical damage and meet requirements of additional tests as specified in the product qualifications and prequalification test sequence in figure 3 of TE product document 108-108-1329.

AMPSEAL Series

AMPSEAL Housingse

AMPSEAL Receptacle Housings
AMPSEAL Headerse

AMPSEAL PCB Vertical Headers
AMPSEAL 90 Degree Headers e

AMPSEAL PCB Right Angle Headers
AMPSEAL Backshellse

AMPSEAL Backshells

Additional AMPSEAL Products

Commercial & Industrial Vehiclese

Powering the Future of Commercial & Industrial Transportation
Automotive, Truck, Bus & Off-Road Connectorse

Automotive, Truck, Bus, and Off-Road Vehicle Connectors

STAMPED AND FORMED



Size Stamped & Formed Contact Part Numbers
 Carrier
Strip Identification
 Wire Size AWG (mm2) Wire Insulation O.D. Range Recommended
Strip Length Inches (mm)
 Min. Contact Retention Max.
Rated Amps at 125 degree Continous
Pin Socket
20 1060-20-01** 1062-20-01** 20-01

16-22

(1.5-.035)

.075-.125

(1.91-3.18)

.150-.200

(3.81-5.08)

20

89

 7.5
20 1060-20-02** 1062-20-02** 20-02

16-22

(1.5-.035)

.051-.085

(1.30-2.16)

.150-.200

(3.81-5.08)

20

89

 7.5
20 N/A

1062-20-03**

(Sleeveless)

 20-03

16-22

(1.5-.035)

.075-.125

(1.91-3.18)

.150-.200

(3.81-5.08)

20

89

 7.5
20 1060-20-06** 1062-20-06** 20-06

14-16

(2.5-1.0)

.075-.125

(1.91-3.18)

.150-.200

(3.81-5.08)

20

89

 7.5
16 1060-
14-01**		 1062-
14-01**		 14-16

14-18

(2.0-.75)

.095-.150

(2.41-3.81)

.150-.200

(3.81-5.08)

25

111

 13
16 1060-
14-10**		 1062-
14-10**		 14-16

14-18

(2.0-.75)

.095-.150

(2.41-3.81)

.150-.200

(3.81-5.08)

25

111

 13
16 1060-
16-01**		 1062-
16-01**		 16-18

14-18

(2.0-.75)

.075-.140

(1.90-3.55)

.150-.200

(3.81-5.08)

25

111

 13
16 1060-
16-06**		 1062-
16-06**		 0.5-1.0

16-20

(1.0-.50)

.055-.100

1.40-2.54)

.150-.200

(3.81-5.08)

25

111

 13
16 1060-
16-09**		 1062-
16-09**		 16-18

14-18

(2.0-.75)

.075-.140

(1.90-3.550

.150-.200

(3.81-5.08)

25

111

 13
16 1060-
16-12**		 1062-
16-12**		 1.0-2.5

12-16

(2.5-1.0)

.075-.140

(1.90-3.55)

.175-.225

(4.45-5.72)

25

111

 13
16 N/A

1062-
16-14**

(Sleeveless)

 14-16

12-16

(2.5-1.0)

.075-.140

(1.90-3.55)

.175-.225

(4.45-5.72)

25

111

 13
12 1060-12-01** 1062-12-01**
 12-14

12-14

(4.0-2.0)

.113-.176

(2.87-4.47)

.225-.275

(5.72-6.99)

30

134

 25
12 1060-12-02** 1062-12-02** 10-12

10■

(6.0-4.0)

.140-.204

(3.56-5.18)

.225-.275

(5.72-6.99)

30

134

 25



** = Plating codes. Consult the factory for custom finish needs.

■ = TXL wire insulation is preferred

LADD Contact Us

Ask our Experts

At TE we strive to exceed our customers’ expectations. If you are unable to find the information you are looking for, please let us know. Submit your questions, comments, or suggestions using this form and our LADD Distribution experts will come back to you.

LADD

Application

LADD Storefront

Get the products you need when you need them with LADD Distribution. Discover what we do to exceed your expectations and deliver solutions for industrial and commercial transportation.

FAQ

Frequently Asked Questions

Q:    What is an AMPSEAL connector?

A:     AMPSEAL connectors provide rugged reliability and environmental sealing. They are available in cable plugs and PCB mount headers that are designed to stand up to high-temperature underhood applications.



Q:    What are the appropriate applications for AMPSEAL connectors?

A:     Truck, bus, off-highway, construction, agriculture, mining, emergency vehicles, forestry, forklift, recreational, marine, motorcycle, power generation.



READ MORE FAQS ABOUT AMPSEAL CONNECTORS

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Primary Locking Feature  Integrated in Housing, On the Terminal

  • Sealable  No

  • Receptacle Style  180°

Body Features

  • Terminal Seal Type  Family Seal

Contact Features

  • Wire Contact Termination Area Plating Material  Tin

  • Typical Current Rating (A) 8, 17

  • Terminal Type  Socket

  • Interface Plating  Nickel (Ni), Tin (Sn), Gold (Au)

  • Mating Pin Diameter  1.3 mm [ .051 in ]

  • Contact Fabrication  Stamped & Formed

  • Contact Size  1.3mm

  • Crimp Type  F-Crimp

Termination Features

  • Termination Method to Wire & Cable  Crimp

  • Product Terminates To  Wire

Dimensions

  • Wire Size (mm²) .204 – .325, .325 – .517, .517 – 1.31

  • Compatible Insulation Diameter Range (mm) 1.4 – 1.8, 1.7 – 2.7

  • Compatible Insulation Diameter Range (in) .055 – .074, .055 – .07, .067 – .106

  • Wire Size (AWG) 20 – 16, 22 – 20, 24 – 22

  • Tab Length  19.1 mm [ .752 in ]

Usage Conditions

  • Operating Temperature Range (°C) -40 – 105, -40 – 125

  • Operating Temperature Range (°F) -40 – 221, -40 – 257

  • Operating Temperature (Max) (°C) 105, 125

  • Operating Temperature (Max) (°F) 221, 257

  • Insulation Option  Uninsulated

Operation/Application

  • Compatible With Wire Base Material  Copper

Packaging Features

  • Packaging Method  Reel, Package, Bag

  • Packaging Quantity  1000, 5000

Other

  • Terminal Transmits  0 – 24 A (Low Power)

Reference Number

  • TE Internal Number CAT-AM78-T273
