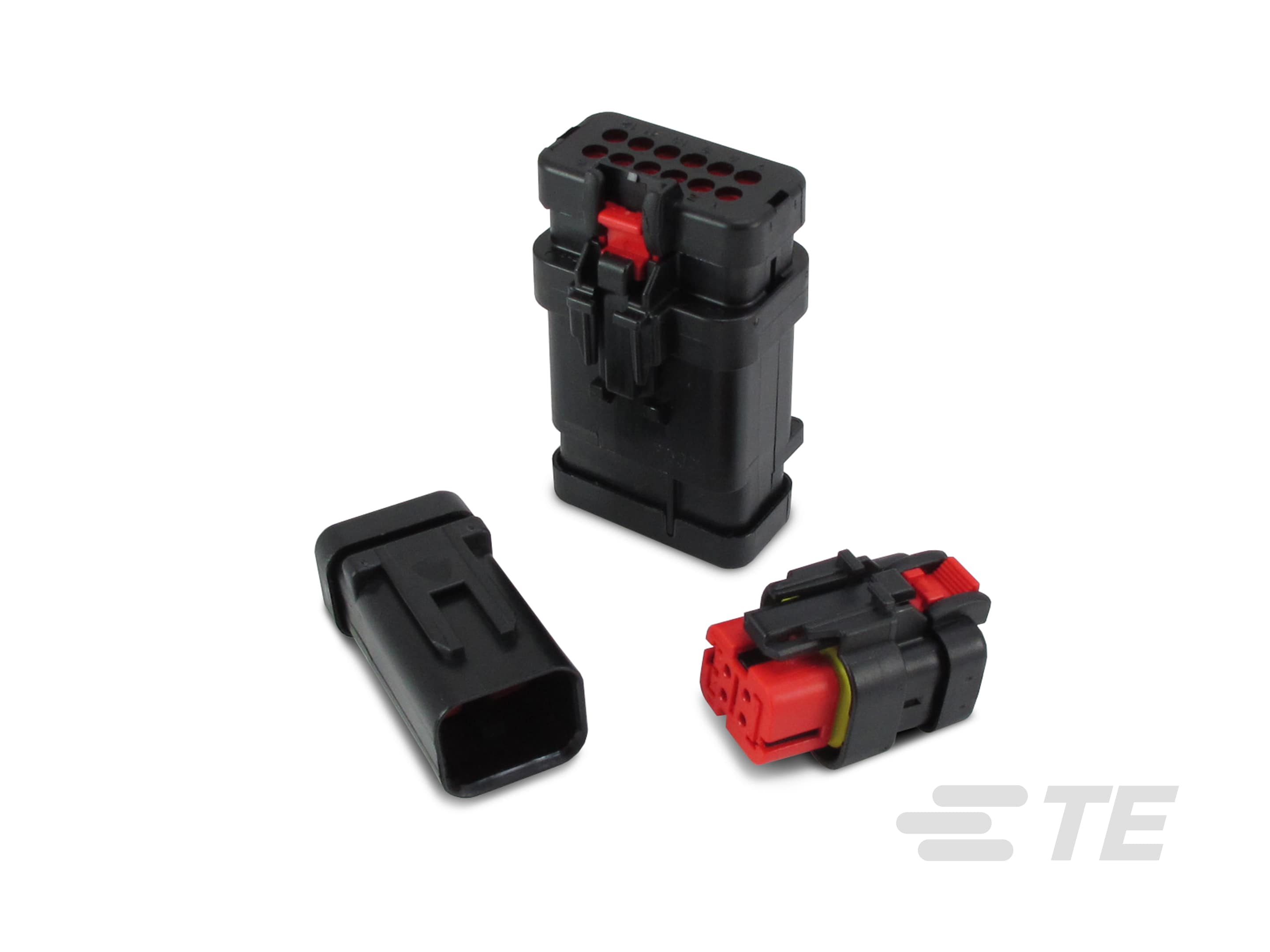

AMPSEAL 16 Housings

AMPSEAL 16

AMPSEAL 16 housings are environmentally sealed wire-to-wire and wire-to-device connectors that accept the Heavy Duty Stamped & Formed (HDSF) size 16 contacts rated up to 13 amps each. They feature an integrated latch for mating and are available in 2, 3, 4, 6, 8, and 12-way arrangements.

More Less

Product Features

Number of Positions : 12, 3, 6, 8, 2, 4
Connector & Housing Type : Housing for Female Terminals, Plug, Cap, Housing for Male Terminals
Mating Pin Diameter (mm): 1.6, 1.55, 1.5, 1.59
Mating Pin Diameter (in): .063, .061, .059, .06, .062
Connector System : Wire-to-Wire, Wire-to-Device
Centerline (Pitch) (mm): 4.5, 5.3, 6
Centerline (Pitch) (in): .236, .177, .209

Available from

Product	TE Part #	Documents	Connector System	Number of Positions	Connector & Housing Type	Centerline (Pitch)	Sealable	Mating Pin Diameter	Number of Rows	Primary Product Color	Contact Current Rating (Max)	Circuit Application	Operating Temperature (Max)	Nominal Voltage Architecture	Connector Position Assurance Capable	Connector & Keying Code	Operating Temperature Range	EU RoHS Compliance	EU ELV Compliance
AS16,PLUG ASSY,ST,02P,E SEAL,CODE B Buy on te.com	776522-2	Product Drawing 3D PDF	Wire-to-Wire	2	Plug	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	Yes	B	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,06P,N SEAL,CODE B Buy on te.com	776434-2	Product Drawing 3D PDF	Wire-to-Wire	6	Cap	4.5 mm	Yes	1.5 mm	2	Black	13 A	Power	125 °C	-	No	B	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,12P,E SEAL,CODE C Buy on te.com	776539-3	Product Drawing 3D PDF	Wire-to-Wire	12	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	C	-40 – 125 °C	Compliant	Compliant
CAP ASSY,3P,BRACKET REVERSE TYPE,ATAC CO	1717673-3	Product Drawing 3D PDF	Wire-to-Wire	3	Cap	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	No	C	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,HT,08P,N SEAL,CODE C	2320917-3	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Male Terminals	4.5 mm	Yes	1.6 mm	2	Gray	-	-	150 °C	-	No	C	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,08P,N SEAL,CODE C	2320924-3	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	4.5 mm	Yes	1.6 mm	2	Gray	-	-	150 °C	-	Yes	C	-40 – 150 °C	Compliant	Compliant
AS16,CAP ASSY,ST,08P,N SEAL,CODE D Buy on te.com	776495-4	Product Drawing 3D PDF	Wire-to-Wire	8	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	D	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,08P,E SEAL,CODE D Buy on te.com	776538-4	Product Drawing 3D PDF	Wire-to-Wire	8	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	D	-40 – 125 °C	Compliant	Compliant
CAP ASSY,8P,BRACKET REVERSE TYPE,ATAC CO	1717676-2	Product Drawing 3D PDF	Wire-to-Wire	8	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	No	B	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,HT,12P,N SEAL,CODE A Buy on te.com	2320918-1	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	4.5 mm	Yes	1.6 mm	2	Gray	-	-	150 °C	-	No	A	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,03P,N SEAL,CODE D	2320921-4	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Female Terminals	4.5 mm	Yes	1.6 mm	1	Gray	-	-	150 °C	-	Yes	D	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,ST,06P,E SEAL,CODE B Buy on te.com	776531-2	Product Drawing 3D PDF	Wire-to-Wire	6	Plug	4.5 mm	Yes	1.5 mm	2	Black	13 A	Power	125 °C	-	Yes	B	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,HT,06P,N SEAL,CODE C	2320916-3	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Wire	6	Housing for Male Terminals	4.5 mm	Yes	1.5 mm	2	Gray	13 A	Power	150 °C	-	No	C	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,08P,E SEAL,CODE C	2320936-3	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Wire	8	Housing for Female Terminals	4.5 mm	Yes	1.59 mm	2	Gray	13 A	Power	150 °C	250 V	Yes	C	-40 – 150 °C	Compliant	Compliant
CAP ASSY,2P,BRACKET REVERSE TY Buy on te.com	1717672-1	Product Drawing 3D PDF	Wire-to-Wire	2	Cap	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	No	A	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,02P,N SEAL,CODE D Buy on te.com	776428-4	Product Drawing 3D PDF	Wire-to-Wire	2	Cap	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	Yes	D	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,HT,04P,E SEAL,CODE D	2320928-4	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	5.3 mm	Yes	1.6 mm	2	Gray	-	-	150 °C	-	No	D	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,06P,E SEAL,CODE A	2320935-1	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Wire	6	Housing for Female Terminals	4.5 mm	Yes	1.5 mm	2	Gray	13 A	Power	150 °C	-	Yes	A	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,06P,N SEAL,CODE A	2320923-1	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Wire	6	Housing for Female Terminals	4.5 mm	Yes	1.5 mm	2	Gray	13 A	Power	150 °C	-	Yes	A	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,08P,E SEAL,CODE A Buy on te.com	2320936-1	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Wire	8	Housing for Female Terminals	4.5 mm	Yes	1.59 mm	2	Gray	13 A	Power	150 °C	250 V	Yes	A	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,ST,02P,N SEAL,CODE D	776427-4	Product Drawing 3D PDF	Wire-to-Wire	2	Plug	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	Yes	D	-40 – 125 °C	Compliant	Compliant
AS16,PLUG ASSY,ST,02P,E SEAL,CODE C	776522-3	Product Drawing 3D PDF	Wire-to-Wire	2	Plug	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	Yes	C	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,04P,E SEAL,CODE A Buy on te.com	776536-1	Product Drawing 3D PDF	Wire-to-Wire	4	Cap	5.3 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	A	-40 – 125 °C	Compliant	Compliant
CAP ASSY,12P,BRACKET REVERSE TYPE,ATAC C Buy on te.com	1717677-1	Product Drawing 3D PDF	Wire-to-Wire	12	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	No	A	-40 – 125 °C	Compliant	Compliant
CAP ASSY,12P,BRACKET REVERSE TYPE,ATAC C	1717934-3	Product Drawing 3D PDF	Wire-to-Wire	12	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	No	C	-40 – 125 °C	Compliant	Compliant
CAP ASSY,12P,BRACKET REVERSE TYPE,ATAC C Buy on te.com	1717934-4	Product Drawing 3D PDF	Wire-to-Wire	12	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	No	D	-40 – 125 °C	Compliant	Compliant
CAP ASSY,6P,BRACKET REVERSE TYPE,ATAC CO	1717975-3	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Male Terminals	4.5 mm	Yes	1.5 mm	2	Black	13 A	Power	125 °C	-	No	C	-40 – 125 °C	Compliant	Compliant
AMPSEAL16,CAP ASSY,2P-A,B/R TYPE,RWDS, Buy on te.com	1871412-1	Product Drawing 3D PDF	Wire-to-Wire	2	Cap	4.5 mm	Yes	1.55 mm	1	Red	13 A	Power	125 °C	250 V	No	A	-40 – 125 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,04P,N SEAL,CODE B	2320922-2	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Female Terminals	5.3 mm	Yes	1.6 mm	2	Gray	-	-	150 °C	-	Yes	B	-40 – 150 °C	Compliant	Compliant
AS16,CAP ASSY,HT,08P,E SEAL,CODE B	2320930-2	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Male Terminals	4.5 mm	Yes	1.6 mm	2	Gray	-	-	150 °C	-	No	B	-40 – 150 °C	Compliant	Compliant
AMP SEAL16 2P CAP ASSY WITH RESIST 120	1939556-4	Product Drawing 3D PDF	Wire-to-Wire	2	Cap	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	No	A	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,03P,N SEAL,CODE B Buy on te.com	776430-2	Product Drawing 3D PDF	Wire-to-Wire	3	Cap	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	Yes	B	-40 – 125 °C	Compliant	Compliant
AS16,PLUG ASSY,ST,08P,N SEAL,CODE B	776494-2	Product Drawing 3D PDF	Wire-to-Wire	8	Plug	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	B	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,08P,N SEAL,CODE A Buy on te.com	776495-1	Product Drawing 3D PDF	Wire-to-Wire	8	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	A	-40 – 125 °C	Compliant	Compliant
SEAL CAP HSG 3P, AMPSEAL16 SEA	2040594-2	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Wire	3	Cap	4.5 mm	Yes	1.5 mm	1	Black	13 A	Power	125 °C	-	No	-	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,04P,E SEAL,CODE D Buy on te.com	776536-4	Product Drawing 3D PDF	Wire-to-Wire	4	Cap	5.3 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	D	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,12P,E SEAL,CODE B Buy on te.com	776539-2	Product Drawing 3D PDF	Wire-to-Wire	12	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	B	-40 – 125 °C	Compliant	Compliant
CAP ASSY,4P,BRACKET REVERSE TY Buy on te.com	1717674-1	Product Drawing 3D PDF	Wire-to-Wire	4	Cap	5.3 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	No	A	-40 – 125 °C	Compliant	Compliant
CAP ASSY,8P,BRACKET REVERSE TYPE,ATAC CO	1717676-3	Product Drawing 3D PDF	Wire-to-Wire	8	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	No	C	-40 – 125 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,12P,N SEAL,CODE D	2320925-4	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	4.5 mm	Yes	1.6 mm	2	Gray	-	-	150 °C	-	Yes	D	-40 – 150 °C	Compliant	Compliant
AS16,CAP ASSY,HT,12P,E SEAL,CODE C	2320931-3	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	4.5 mm	Yes	1.6 mm	2	Gray	-	-	150 °C	-	No	C	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,02P,E SEAL,CODE D	2320932-4	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4.5 mm	Yes	1.6 mm	1	Gray	-	-	150 °C	-	Yes	D	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,ST,04P,N SEAL,CODE D	776487-4	Product Drawing 3D PDF	Wire-to-Wire	4	Plug	5.3 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	D	-40 – 125 °C	Compliant	Compliant
AS16,PLUG ASSY,ST,04P,E SEAL,CODE B Buy on te.com	776524-2	Product Drawing 3D PDF	Wire-to-Wire	4	Plug	5.3 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	B	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,06P,E SEAL,CODE B Buy on te.com	776537-2	Product Drawing 3D PDF	Wire-to-Wire	6	Cap	4.5 mm	Yes	1.5 mm	2	Black	13 A	Power	125 °C	-	No	B	-40 – 125 °C	Compliant	Compliant
AMP SEAL16 2P CAP ASSY WITH RESIST 150	1939556-5	Product Drawing 3D PDF	Wire-to-Wire	2	Cap	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	No	A	-40 – 125 °C	Compliant	Compliant
AMP SEAL16 2P CAP ASSY WITH RESIST 1K	1939604-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	4.5 mm	Yes	1.6 mm	1	Black	13 A	Power	-	-	No	-	-	Compliant	Compliant
AS16,PLUG ASSY,ST,06P,E SEAL,CODE A	776531-1	Product Drawing 3D PDF	Wire-to-Wire	6	Plug	4.5 mm	Yes	1.5 mm	2	Black	13 A	Power	125 °C	-	Yes	A	-40 – 125 °C	Compliant	Compliant
CAP ASSY,4P,BRACKET REVERSE TYPE,ATAC CO	1717674-2	Product Drawing 3D PDF	Wire-to-Wire	4	Cap	5.3 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	No	B	-40 – 125 °C	Compliant	Compliant
CAP ASSY,8P,BRACKET REVERSE TYPE,ATAC CO	1717676-4	Product Drawing 3D PDF	Wire-to-Wire	8	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	No	D	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,HT,04P,N SEAL,CODE B	2320915-2	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	5.3 mm	Yes	1.6 mm	2	Gray	-	-	150 °C	-	No	B	-40 – 150 °C	Compliant	Compliant
AMPSEAL16,CAP ASSY,3P-A,B/R TYPE,RWDS,	1871413-1	Product Drawing 3D PDF	Wire-to-Wire	3	Cap	4.5 mm	Yes	1.55 mm	1	Red	13 A	Power	125 °C	250 V	No	A	-40 – 125 °C	Compliant	Compliant
AS16,PLUG ASSY,ST,12P,N SEAL,CODE D Buy on te.com	776437-4	Product Drawing 3D PDF	Wire-to-Wire	12	Plug	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	D	-40 – 125 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,02P,N SEAL,CODE D	2320920-4	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4.5 mm	Yes	1.6 mm	1	Gray	-	-	150 °C	-	Yes	D	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,ST,06P,E SEAL,CODE C Buy on te.com	776531-3	Product Drawing 3D PDF	Wire-to-Wire	6	Plug	4.5 mm	Yes	1.5 mm	2	Black	13 A	Power	125 °C	-	Yes	C	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,HT,06P,E SEAL,CODE B	2320929-2	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Wire	6	Housing for Male Terminals	4.5 mm	Yes	1.5 mm	2	Gray	13 A	Power	150 °C	-	No	B	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,ST,02P,N SEAL,CODE C Buy on te.com	776427-3	Product Drawing 3D PDF	Wire-to-Wire	2	Plug	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	Yes	C	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,02P,N SEAL,CODE B Buy on te.com	776428-2	Product Drawing 3D PDF	Wire-to-Wire	2	Cap	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	Yes	B	-40 – 125 °C	Compliant	Compliant
AS16,PLUG ASSY,ST,08P,E SEAL,CODE A Buy on te.com	776532-1	Product Drawing 3D PDF	Wire-to-Wire	8	Plug	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	A	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,04P,E SEAL,CODE B	776536-2	Product Drawing 3D PDF	Wire-to-Wire	4	Cap	5.3 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	B	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,06P,E SEAL,CODE C	776537-3	Product Drawing 3D PDF	Wire-to-Wire	6	Cap	4.5 mm	Yes	1.5 mm	2	Black	13 A	Power	125 °C	-	No	C	-40 – 125 °C	Compliant	Compliant
CAP ASSY (14.5V)AMPSEAL16 2P	1554369-1	Product Drawing 3D PDF	Wire-to-Wire	2	Cap	4.5 mm	Yes	1.5 mm	1	Black	13 A	Power	125 °C	-	No	A	-40 – 125 °C	Compliant	Compliant
CAP ASSY (31.6V)AMPSEAL16 2P	1554369-2	Product Drawing 3D PDF	Wire-to-Wire	2	Cap	4.5 mm	Yes	1.5 mm	1	Black	13 A	Power	125 °C	-	No	A	-40 – 125 °C	Compliant	Compliant with Exemptions
CAP ASSY,2P,BRACKET REVERSE TYPE,ATAC CO Buy on te.com	1717672-3	Product Drawing 3D PDF	Wire-to-Wire	2	Cap	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	No	C	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,04P,N SEAL,CODE A Buy on te.com	776488-1	Product Drawing 3D PDF	Wire-to-Wire	4	Cap	5.3 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	A	-40 – 125 °C	Compliant	Compliant
AS16,PLUG ASSY,ST,03P,E SEAL,CODE D Buy on te.com	776523-4	Product Drawing 3D PDF	Wire-to-Wire	3	Plug	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	Yes	D	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,08P,E SEAL,CODE B Buy on te.com	776538-2	Product Drawing 3D PDF	Wire-to-Wire	8	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	B	-40 – 125 °C	Compliant	Compliant
CAP ASSY,4P,BRACKET REVERSE TYPE,ATAC CO	1717674-3	Product Drawing 3D PDF	Wire-to-Wire	4	Cap	5.3 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	No	C	-40 – 125 °C	Compliant	Compliant
AMP SEAL16 2P CAP WITH DIODE, CAP ASSY Buy on te.com	2040104-2	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	4.5 mm	Yes	1.6 mm	1	Black	13 A	Power	125 °C	250 V	No	-	-40 – 125 °C	Compliant with Exemptions	Compliant with Exemptions
AS16,CAP ASSY,HT,12P,N SEAL,CODE C	2320918-3	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	4.5 mm	Yes	1.6 mm	2	Gray	-	-	150 °C	-	No	C	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,12P,N SEAL,CODE B	2320925-2	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	4.5 mm	Yes	1.6 mm	2	Gray	-	-	150 °C	-	Yes	B	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,ST,04P,E SEAL,CODE C	776524-3	Product Drawing 3D PDF	Wire-to-Wire	4	Plug	5.3 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	C	-40 – 125 °C	Compliant	Compliant
AS16,PLUG ASSY,ST,08P,E SEAL,CODE B Buy on te.com	776532-2	Product Drawing 3D PDF	Wire-to-Wire	8	Plug	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	B	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,HT,12P,N SEAL,CODE D	2320918-4	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	4.5 mm	Yes	1.6 mm	2	Gray	-	-	150 °C	-	No	D	-40 – 150 °C	Compliant	Compliant
AS16,CAP ASSY,HT,06P,E SEAL,CODE A	2320929-1	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Wire	6	Housing for Male Terminals	4.5 mm	Yes	1.5 mm	2	Gray	13 A	Power	150 °C	-	No	A	-40 – 150 °C	Compliant	Compliant
AS16,CAP ASSY,ST,08P,E SEAL,CODE A Buy on te.com	776538-1	Product Drawing 3D PDF	Wire-to-Wire	8	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	A	-40 – 125 °C	Compliant	Compliant
CAP ASSY,12P,BRACKET REVERSE TYPE,ATAC C	1717677-4	Product Drawing 3D PDF	Wire-to-Wire	12	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	No	D	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,HT,04P,N SEAL,CODE D	2320915-4	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	5.3 mm	Yes	1.6 mm	2	Gray	-	-	150 °C	-	No	D	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,08P,N SEAL,CODE B	2320924-2	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	4.5 mm	Yes	1.6 mm	2	Gray	-	-	150 °C	-	Yes	B	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,03P,E SEAL,CODE D	2320933-4	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Female Terminals	4.5 mm	Yes	1.6 mm	1	Gray	-	-	150 °C	-	Yes	D	-40 – 150 °C	Compliant	Compliant
AS16,CAP ASSY,ST,08P,N SEAL,CODE B Buy on te.com	776495-2	Product Drawing 3D PDF	Wire-to-Wire	8	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	Yes	B	-40 – 125 °C	Compliant	Compliant
AS16,PLUG ASSY,ST,02P,E SEAL,CODE D Buy on te.com	776522-4	Product Drawing 3D PDF	Wire-to-Wire	2	Plug	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	Yes	D	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,02P,E SEAL,CODE C Buy on te.com	776534-3	Product Drawing 3D PDF	Wire-to-Wire	2	Cap	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	Yes	C	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,ST,03P,E SEAL,CODE D	776535-4	Product Drawing 3D PDF	Wire-to-Wire	3	Cap	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	Yes	D	-40 – 125 °C	Compliant	Compliant
SEAL CAP HSG 6P, AMPSEAL16 SEA Buy on te.com	2040594-4	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Wire	6	Cap	4.5 mm	Yes	1.5 mm	2	Black	13 A	Power	125 °C	-	No	-	-40 – 125 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,02P,N SEAL,CODE B	2320920-2	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4.5 mm	Yes	1.6 mm	1	Gray	-	-	150 °C	-	Yes	B	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,03P,N SEAL,CODE B	2320921-2	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Female Terminals	4.5 mm	Yes	1.6 mm	1	Gray	-	-	150 °C	-	Yes	B	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,03P,E SEAL,CODE B	2320933-2	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Female Terminals	4.5 mm	Yes	1.6 mm	1	Gray	-	-	150 °C	-	Yes	B	-40 – 150 °C	Compliant	Compliant
AS16,CAP ASSY,ST,03P,N SEAL,CODE C Buy on te.com	776430-3	Product Drawing 3D PDF	Wire-to-Wire	3	Cap	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	Yes	C	-40 – 125 °C	Compliant	Compliant
AS16,CAP ASSY,HT,08P,E SEAL,CODE C	2320930-3	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Male Terminals	4.5 mm	Yes	1.6 mm	2	Gray	-	-	150 °C	-	No	C	-40 – 150 °C	Compliant	Compliant
AS16,CAP ASSY,ST,02P,N SEAL,CODE C Buy on te.com	776428-3	Product Drawing 3D PDF	Wire-to-Wire	2	Cap	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	Yes	C	-40 – 125 °C	Compliant	Compliant
CAP ASSY,12P,BRACKET REVERSE TYPE,ATAC C	1717934-1	Product Drawing 3D PDF	Wire-to-Wire	12	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	No	A	-40 – 125 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,12P,E SEAL,CODE D	2320937-4	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Wire	12	Housing for Female Terminals	4.5 mm	Yes	1.6 mm	2	Gray	13 A	Power	150 °C	250 V	Yes	D	-40 – 150 °C	Compliant	Compliant
CAP ASSY,3P,BRACKET REVERSE TYPE,ATAC CO	1717673-1	Product Drawing 3D PDF	Wire-to-Wire	3	Cap	4.5 mm	Yes	1.5 mm	1	Black	-	-	125 °C	-	No	A	-40 – 125 °C	Compliant	Compliant
CAP ASSY,4P,BRACKET REVERSE TYPE,ATAC CO	1717674-4	Product Drawing 3D PDF	Wire-to-Wire	4	Cap	5.3 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	No	D	-40 – 125 °C	Compliant	Compliant
CAP ASSY,12P,BRACKET REVERSE TYPE,ATAC C Buy on te.com	1717677-3	Product Drawing 3D PDF	Wire-to-Wire	12	Cap	4.5 mm	Yes	1.5 mm	2	Black	-	-	125 °C	-	No	C	-40 – 125 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,03P,N SEAL,CODE A	2320921-1	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Female Terminals	4.5 mm	Yes	1.6 mm	1	Gray	-	-	150 °C	-	Yes	A	-40 – 150 °C	Compliant	Compliant
AS16,PLUG ASSY,HT,08P,N SEAL,CODE D	2320924-4	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	4.5 mm	Yes	1.6 mm	2	Gray	-	-	150 °C	-	Yes	D	-40 – 150 °C	Compliant	Compliant
CAP ASSY,6P,BRACKET REVERSE TYPE,ATAC CO Buy on te.com	1717975-2	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Male Terminals	4.5 mm	Yes	1.5 mm	2	Black	13 A	Power	125 °C	-	No	B	-40 – 125 °C	Compliant	Compliant
SEAL CAP HSG 4P, AMPSEAL16 SEA Buy on te.com	2040594-3	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Wire	4	Cap	5.3 mm	Yes	1.5 mm	2	Black	13 A	Power	125 °C	-	No	-	-40 – 125 °C	Compliant	Compliant

Overview

Receptacle and cap housings offer a one-piece approach and come fully assembled.

Series Overview

Accepts contact size HDSF 16 (up to 13 amps)
14-20 AWG (2.50-0.50 mm²)
2, 3, 4, 6, 8, and 12 cavity arrangements
In-line mount
Rectangular, thermoplastic housing
Integrated latch for mating
Integrated Primary Latch Reinforcement (PLR) confirms contact alignment and retention
Available accessories: Backshells, mounting clips

Additional AMPSEAL 16 products

VIEW ALL AMPSEAL 16 Products
AMPSEAL 16 connectors are targeted for off-road, heavy-duty industrial, recreational and agricultural applications. The connectors offer rugged reliability, easy use, and help prevent moisture and dirt from contaminating connections.

FAQ

Frequently Asked Questions

Q: What is an AMPSEAL 16 connector?

A: TE Connectivity’s AMPSEAL 16 environmentally sealed connectors are designed for cable to cable and cable to device applications. AMPSEAL 16 connectors are used in harsh environment applications where even a small degradation in connection may be critical.

Q: What are the appropriate applications for AMPSEAL 16 connectors?

A: Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Marine, Motorcycle

Features

Please review product documents or contact us for the latest agency approval information.

Other

Serviceable Yes
Connector Position Assurance Capable No, Yes
EU RoHS Compliance Compliant, Compliant with Exemptions
EU ELV Compliance Compliant with Exemptions, Compliant

Packaging Features

Packaging Method Package, Bag, Box, Tube
Packaging Quantity 200, 100, 22, 342, 14, 20, 175, 1, 30, 40, 250, 600, 25, 252, 19, 50, 27

Body Features

Cable Exit Angle 180°
Primary Product Color Red, Black, Gray
Connector & Keying Code D, A, C, B

Electrical Characteristics

Operating Voltage (VDC) 250
Operating Voltage (VAC) 250
Nominal Voltage Architecture (V) 250

Dimensions

Wire Size (AWG) 20 – 14, 1 – 10
Connector Height (mm) 14.4, 31, 18.93, 26.6, 26.65, 20.25, 26.8, 47.55, 47.5, 19.15, 23.5, 37.5, 24.1, 31.5, 47.1, 22.45
Connector Height (in) .567, .949, 1.049, .797, .925, .884, 1.85, .754, .745, 1.22, 1.24, 1.48, 1.87, 1.055, 1.05, .883, 1.873
Row-to-Row Spacing (mm) 6.18, 5.3, 4.5, 2.54
Row-to-Row Spacing (in) .209, .177, .243, .1
Product Length (mm) 24.83, 25.33, 24.1, 20.3, 24.6, 28.6, 20.33, 36.75, 37.6, 25.3, 36.8, 36.7, 47.55, 15.6, 29.33, 38.33, 19.6
Product Length (in) 1.447, 1.126, .799, 1.449, .614, 1.872, .969, .966, 1.155, .978, .949, .948, .8, 1.445, 1.509, 1.48, .997, .771, .772, .968
Compatible Insulation Diameter Range (mm) 1.3 – 3.3, 1.3 – 2.3, 1.27 – 3.3, 2.2 – 3.9
Compatible Insulation Diameter Range (in) .05 – .131, .051 – .131, .086 – .153
Product Width (mm) 16.9, 20.25, 28.6, 47.5, 24.1, 36.6, 29.33, 47.55, 22.6, 23.5, 24.83, 38.33, 25.33, 36.8, 20.2, 36.7, 36.75, 20.33, 37.6, 26.8, 10.2, 24.6
Product Width (in) .925, 1.87, 1.055, .797, .949, .969, .997, .665, .795, 1.48, 1.449, 1.873, 1.126, .889, 1.509, 1.44, 1.445, .401, .8, 1.155, 1.872, .978, 1.447
Wire Size (mm²) .5 – 2, .52 – 2.08

Contact Features

Contact Type Socket, Pin
Contact Size 1.6mm, Size 16, 1.5mm, 1.3mm
Mating Pin Diameter (mm) 1.6, 1.55, 1.5, 1.59
Mating Pin Diameter (in) .063, .061, .059, .06, .062
Contact Current Rating (Max) (A) 13

Housing Features

Housing Material Glass-Filled Thermoplastic, PBT 15GF, PBT GF15, Nylon 66 GF, PBT GF
Centerline (Pitch) (mm) 4.5, 5.3, 6
Centerline (Pitch) (in) .236, .177, .209

Product Type Features

Connector Shape Rectangular
Mixed & Hybrid Connector No
Connector & Housing Type Housing for Female Terminals, Plug, Cap, Housing for Male Terminals
Connector System Wire-to-Wire, Wire-to-Device
Sealable Yes, No
Primary Locking Feature Integrated in Housing
Connector & Contact Terminates To Wire & Cable

Configuration Features

Blank Cavity Position 0
Number of Positions 12, 3, 6, 8, 2, 4
Number of Rows 2, 1

Industry Standards

UL Flammability Rating UL 94HB, UL 94V-0
IP Rating IP67

Mechanical Attachment

Terminal Position Assurance Yes, No
Mating Alignment Type Polarized, Keyed, Polarizing Tab, Polarizing Rib
Strain Relief With, Without, Add By Accessory
Mating Alignment With
Connector Mounting Type Cable Mount (Free-Hanging)

Usage Conditions

Operating Temperature (Max) (°C) 125, 150
Operating Temperature (Max) (°F) 302, 257
Operating Temperature Range (°C) -40 – 125, -40 – 150
Operating Temperature Range (°F) -40 – 302, -40 – 257

Operation/Application

Circuit Application Power

Reference Number

TE Internal Number CAT-AM7801-CH8172

Related Materials

Flipbook Catalog

Industrial & Commercial Transportation - Terminals and Connectors (English) TE's Industrial & Commercial Transportation Terminals and Connectors flipbook catalog features AMPSEAL, AMPSEAL 16, Circular DIN, DEUTSCH, HDSCS, LEAVYSEAL, and Superseal 1.0 connectors, contacts, tools, and accessories.

Product Specifications

AMPSEAL 16 Connectors Product Specifications (English) This specification covers performance tests and quality requirements for AMPSEAL 16 connectors.

Application Specifications

AMPSEAL 16 Connectors Application Specifications (English) This specification covers the requirements for the application of the AMPSEAL 16 plug connector and header assembly.

Application Specifications

HDSF Size 16 Pin and Socket Contacts (English) This specification covers the requirements for the application of Heavy Duty Stamped and Formed (HDSF) Size 16 Pin and Socket Contacts.

Connector Selector

Connector Selector (English) The Connector Selector is a reference guide to TE Connectivity's (TE) Industrial & Commercial Transportation electrical connectors.

AMPSEAL 16, TE Connectivity, and TE connectivity (logo) are trademarks.

AMPSEAL 16 Housings

Product Features

Number of Positions : 12, 3, 6, 8, 2, 4

Connector & Housing Type : Housing for Female Terminals, Plug, Cap, Housing for Male Terminals

Mating Pin Diameter (mm): 1.6, 1.55, 1.5, 1.59

Mating Pin Diameter (in): .063, .061, .059, .06, .062

Connector System : Wire-to-Wire, Wire-to-Device

Centerline (Pitch) (mm): 4.5, 5.3, 6

Centerline (Pitch) (in): .236, .177, .209

Series Overview

Additional AMPSEAL 16 products

Frequently Asked Questions

Other

Serviceable Yes

Connector Position Assurance Capable No, Yes

EU RoHS Compliance Compliant, Compliant with Exemptions

EU ELV Compliance Compliant with Exemptions, Compliant

Packaging Features

Packaging Method Package, Bag, Box, Tube

Packaging Quantity 200, 100, 22, 342, 14, 20, 175, 1, 30, 40, 250, 600, 25, 252, 19, 50, 27

Body Features

Cable Exit Angle 180°

Primary Product Color Red, Black, Gray

Connector & Keying Code D, A, C, B

Electrical Characteristics

Operating Voltage (VDC) 250

Operating Voltage (VAC) 250

Nominal Voltage Architecture (V) 250

Dimensions

Wire Size (AWG) 20 – 14, 1 – 10

Connector Height (mm) 14.4, 31, 18.93, 26.6, 26.65, 20.25, 26.8, 47.55, 47.5, 19.15, 23.5, 37.5, 24.1, 31.5, 47.1, 22.45

Connector Height (in) .567, .949, 1.049, .797, .925, .884, 1.85, .754, .745, 1.22, 1.24, 1.48, 1.87, 1.055, 1.05, .883, 1.873

Row-to-Row Spacing (mm) 6.18, 5.3, 4.5, 2.54

Row-to-Row Spacing (in) .209, .177, .243, .1

Product Length (mm) 24.83, 25.33, 24.1, 20.3, 24.6, 28.6, 20.33, 36.75, 37.6, 25.3, 36.8, 36.7, 47.55, 15.6, 29.33, 38.33, 19.6

Product Length (in) 1.447, 1.126, .799, 1.449, .614, 1.872, .969, .966, 1.155, .978, .949, .948, .8, 1.445, 1.509, 1.48, .997, .771, .772, .968

Compatible Insulation Diameter Range (mm) 1.3 – 3.3, 1.3 – 2.3, 1.27 – 3.3, 2.2 – 3.9

Compatible Insulation Diameter Range (in) .05 – .131, .051 – .131, .086 – .153

Product Width (mm) 16.9, 20.25, 28.6, 47.5, 24.1, 36.6, 29.33, 47.55, 22.6, 23.5, 24.83, 38.33, 25.33, 36.8, 20.2, 36.7, 36.75, 20.33, 37.6, 26.8, 10.2, 24.6

Product Width (in) .925, 1.87, 1.055, .797, .949, .969, .997, .665, .795, 1.48, 1.449, 1.873, 1.126, .889, 1.509, 1.44, 1.445, .401, .8, 1.155, 1.872, .978, 1.447

Wire Size (mm²) .5 – 2, .52 – 2.08

Contact Features

Contact Type Socket, Pin

Contact Size 1.6mm, Size 16, 1.5mm, 1.3mm

Mating Pin Diameter (mm) 1.6, 1.55, 1.5, 1.59

Mating Pin Diameter (in) .063, .061, .059, .06, .062

Contact Current Rating (Max) (A) 13

Housing Features

Housing Material Glass-Filled Thermoplastic, PBT 15GF, PBT GF15, Nylon 66 GF, PBT GF

Centerline (Pitch) (mm) 4.5, 5.3, 6

Centerline (Pitch) (in) .236, .177, .209

Product Type Features

Connector Shape Rectangular

Mixed & Hybrid Connector No

Connector & Housing Type Housing for Female Terminals, Plug, Cap, Housing for Male Terminals

Connector System Wire-to-Wire, Wire-to-Device

Sealable Yes, No

Primary Locking Feature Integrated in Housing

Connector & Contact Terminates To Wire & Cable

Configuration Features

Blank Cavity Position 0

Number of Positions 12, 3, 6, 8, 2, 4

Number of Rows 2, 1

Industry Standards

UL Flammability Rating UL 94HB, UL 94V-0

IP Rating IP67

Mechanical Attachment

Terminal Position Assurance Yes, No

Mating Alignment Type Polarized, Keyed, Polarizing Tab, Polarizing Rib

Strain Relief With, Without, Add By Accessory

Mating Alignment With

Connector Mounting Type Cable Mount (Free-Hanging)

Usage Conditions

Operating Temperature (Max) (°C) 125, 150

Operating Temperature (Max) (°F) 302, 257

Operating Temperature Range (°C) -40 – 125, -40 – 150

Operating Temperature Range (°F) -40 – 302, -40 – 257

Operation/Application

Circuit Application Power

Reference Number
