AMPSEAL 16 CONTACTS

AMPSEAL 16

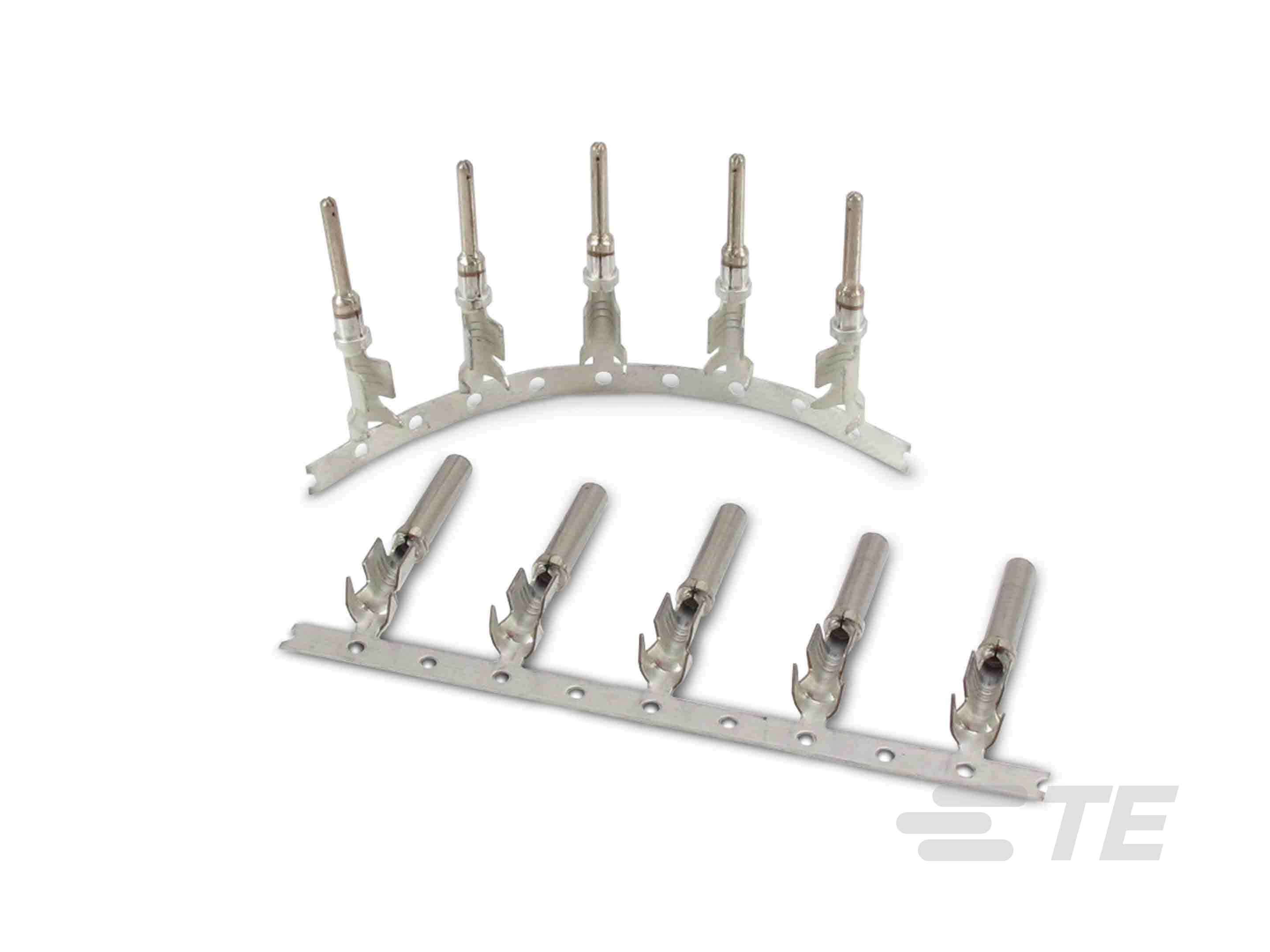

AMPSEAL 16 (Heavy Duty Stamped & Formed size 16) contacts are rated up to 13 amps each. These stamped and formed contacts accept 14-20 AWG (2.50 - 0.50 mm2) wire and are made of copper alloy. AMPSEAL 16 contact plating options include nickel or gold.

More Less

Product Features

Terminal Type : Pin, Socket
Mating Pin Diameter (mm): 1.5, 1.59
Mating Pin Diameter (in): .06, .062
Terminal Transmits : 0 – 24 A (Low Power)
Wire Size (AWG): 18 – 14, 20 – 18, 18 – 15, 15 – 13
Wire Size (mm²): .823 – 2.08, .52 – .823, .82 – 1.5, .52 – .82, 1.5 – 2.5

Available from

Product	TE Part #	Documents	Terminal Type	Mating Pin Diameter	Wire Size	Wire Size	Primary Locking Feature	Interface Plating	Tab Length
SOC, SF, SIZE 16, 16-18 AWG, NI/SN	2098251-2	Product Drawing 3D PDF	Socket	1.59 mm	18 – 15 AWG	.82 – 1.5 mm²	Clean Body	Tin (Sn)	21.6 mm
PIN, SF, SIZE 16, 14-16 AWG, NI/SN	2098252-3	Product Drawing 3D PDF	Pin	1.59 mm	15 – 13 AWG	1.5 – 2.5 mm²	Clean Body	Tin (Sn)	23.21 mm
PIN, SF, SIZE 16, 14-18 AWG,NO INS,AU/SN	638112-1	Product Drawing 3D PDF	Pin	1.59 mm	18 – 14 AWG	.823 – 2.08 mm²	Clean Body	Gold (Au)	19.91 mm
PIN, SF, SIZE 16, 18-20 AWG, AU/SN	776349-1	Product Drawing 3D PDF	Pin	1.59 mm	20 – 18 AWG	.52 – .823 mm²	Clean Body	Nickel (Ni)	23.21 mm
SOC, SF, SIZE 16, 14-18 AWG, NI/SN	776492-2	Product Drawing 3D PDF	Socket	1.59 mm	18 – 14 AWG	.823 – 2.08 mm²	Clean Body	Tin (Sn)	21.6 mm
PIN, SF, SIZE 16, 18-20 AWG, AU/SN Buy on te.com	1924463-1	Product Drawing 3D PDF	Pin	1.59 mm	20 – 18 AWG	.52 – .823 mm²	Clean Body	Gold (Au)	23.21 mm
ASSEMBLY SOCKET LOOSE PC NICKE Buy on te.com	776297-2	Product Drawing 3D PDF	Socket	1.59 mm	18 – 14 AWG	.823 – 2.08 mm²	Clean Body	Nickel (Ni)	-
ASSEMBLY SOCKET LOOSE PC NICKE	776299-2	Product Drawing 3D PDF	Socket	1.59 mm	18 – 14 AWG	.823 – 2.08 mm²	Clean Body	Nickel (Ni)	21.6 mm
SOC, SF, SIZE 16, 14-16 AWG, AU/SN	2098253-1	Product Drawing 3D PDF	Socket	1.59 mm	15 – 13 AWG	1.5 – 2.5 mm²	Clean Body	Gold (Au)	21.6 mm
SOC, SF, SIZE 16, 18-20 AWG, AU/SN	1924464-1	Product Drawing 3D PDF	Socket	1.59 mm	20 – 18 AWG	.52 – .823 mm²	Clean Body	Gold (Au)	21.6 mm
SOC, SF, SIZE 16, 18-20 AWG, AU/SN	776493-1	Product Drawing 3D PDF	Socket	1.59 mm	20 – 18 AWG	.52 – .823 mm²	Clean Body	Gold (Au)	21.6 mm
ASSEMBLY SOCKET LOOSE PC GOLD	1924580-1	Product Drawing 3D PDF	Socket	1.59 mm	20 – 18 AWG	.52 – .823 mm²	Clean Body	Gold (Au)	21.6 mm
PIN, SF, SIZE 16, 14-18 AWG, AU/SN Buy on te.com	638078-1	Product Drawing 3D PDF	Pin	1.59 mm	18 – 14 AWG	.823 – 2.08 mm²	Clean Body	Gold (Au)	23.21 mm
ASSEMBLY SOCKET LOOSE PC GOLD	776297-1	Product Drawing 3D PDF	Socket	1.59 mm	18 – 14 AWG	.823 – 2.08 mm²	Clean Body	Gold (Au)	-
PIN, SF, SIZE 16, 18-20 AWG, NI/SN	776349-3	Product Drawing 3D PDF	Pin	1.59 mm	20 – 18 AWG	.52 – .823 mm²	Clean Body	Nickel (Ni)	23.21 mm
PIN, SF, SIZE 16, 14-18 AWG,NO INS,NI/SN	638112-3	Product Drawing 3D PDF	Pin	1.59 mm	18 – 14 AWG	.823 – 2.08 mm²	Clean Body	Tin (Sn)	19.91 mm
PIN CONTACT WIRE TO WIRE NICKE	1924579-3	Product Drawing 3D PDF	Pin	1.5 mm	20 – 18 AWG	.52 – .82 mm²	Integrated in Housing	-	-
SOC, SF, SIZE 16, 14-16 AWG, NI/SN Buy on te.com	2098253-2	Product Drawing 3D PDF	Socket	1.59 mm	15 – 13 AWG	1.5 – 2.5 mm²	Clean Body	Tin (Sn)	21.6 mm
PIN, SF, SIZE 16, 14-16 AWG, AU/SN	2098252-1	Product Drawing 3D PDF	Pin	1.59 mm	15 – 13 AWG	1.5 – 2.5 mm²	Clean Body	Gold (Au)	23.21 mm
PIN, SF, SIZE 16, 14-18 AWG, NI/SN	638078-3	Product Drawing 3D PDF	Pin	1.59 mm	18 – 14 AWG	.823 – 2.08 mm²	Clean Body	Tin (Sn)	23.21 mm
SOC, SF, SIZE 16, 14-18 AWG, AU/SN	776492-1	Product Drawing 3D PDF	Socket	1.59 mm	18 – 14 AWG	.823 – 2.08 mm²	Clean Body	Gold (Au)	21.6 mm
PIN CONTACT WIRE TO WIRE LOOSE	776300-1	Product Drawing 3D PDF	Pin	1.59 mm	18 – 14 AWG	.823 – 2.08 mm²	Clean Body	Gold (Au)	23.21 mm
SOC, SF, SIZE 16, 14-18 AWG,NO INS,NI/SN	776491-2	Product Drawing 3D PDF	Socket	1.59 mm	18 – 14 AWG	.823 – 2.08 mm²	Clean Body	Tin (Sn)	18.23 mm
PIN CONTACT, WIRE TO WIRE	776298-1	Product Drawing 3D PDF	Pin	1.59 mm	18 – 14 AWG	.823 – 2.08 mm²	Clean Body	Gold (Au)	19.91 mm
ASSEMBLY SOCKET LOOSE PC GOLD Buy on te.com	776299-1	Product Drawing 3D PDF	Socket	1.59 mm	18 – 14 AWG	.823 – 2.08 mm²	Clean Body	Gold (Au)	21.6 mm
SOC, SF, SIZE 16, 18-20 AWG, NI/SN	776493-2	Product Drawing 3D PDF	Socket	1.59 mm	20 – 18 AWG	.52 – .823 mm²	Clean Body	Tin (Sn)	21.6 mm
PIN, SF, SIZE 16, 18-20 AWG, NI/SN Buy on te.com	1924463-3	Product Drawing 3D PDF	Pin	1.59 mm	20 – 18 AWG	.52 – .823 mm²	Clean Body	Tin (Sn)	23.21 mm
SOC, SF, SIZE 16, 14-18 AWG,NO INS,AU/SN	776491-1	Product Drawing 3D PDF	Socket	1.59 mm	18 – 14 AWG	.823 – 2.08 mm²	Clean Body	Gold (Au)	18.23 mm
SOC, SF, SIZE 16, 18-20 AWG, NI/SN	1924464-2	Product Drawing 3D PDF	Socket	1.59 mm	20 – 18 AWG	.52 – .823 mm²	Clean Body	Tin (Sn)	21.6 mm
SOC, SF, SIZE 16, 16-18 AWG, AU/SN Buy on te.com	2098251-1	Product Drawing 3D PDF	Socket	1.59 mm	18 – 15 AWG	.82 – 1.5 mm²	Clean Body	Gold (Au)	21.6 mm
PIN, SF, SIZE 16, 16-18 AWG, AU/SN	2098250-1	Product Drawing 3D PDF	Pin	1.59 mm	18 – 15 AWG	.82 – 1.5 mm²	Clean Body	Gold (Au)	23.21 mm
PIN CONTACT WIRE TO WIRE NICKE	776300-2	Product Drawing 3D PDF	Pin	1.59 mm	18 – 14 AWG	.823 – 2.08 mm²	Clean Body	Nickel (Ni)	23.21 mm
PIN CONTACT WIRE TO WIRE NICKE	776298-2	Product Drawing 3D PDF	Pin	1.59 mm	18 – 14 AWG	.823 – 2.08 mm²	Clean Body	Nickel (Ni)	19.91 mm
PIN, SF, SIZE 16, 16-18 AWG, NI/SN	2098250-3	Product Drawing 3D PDF	Pin	1.59 mm	18 – 15 AWG	.82 – 1.5 mm²	Clean Body	Tin (Sn)	23.21 mm
ASSEMBLY SOCKET LOOSE PC NICKE	1924580-2	Product Drawing 3D PDF	Socket	1.59 mm	20 – 18 AWG	.52 – .823 mm²	Clean Body	Tin (Sn)	21.6 mm

Overview

AMPSEAL 16 contacts are round, stamped & formed contacts with dual beamed sockets.

Additional AMPSEAL 16 products

VIEW ALL AMPSEAL 16 Products
AMPSEAL 16 connectors are targeted for off-road, heavy-duty industrial, recreational and agricultural applications. The connectors offer rugged reliability, easy use, and help prevent moisture and dirt from contaminating connections.

Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

Packaging Method Package, Bag, Reel
Packaging Quantity 4000, 1000

Contact Features

Wire Contact Termination Area Plating Material Tin, Nickel, Gold
Typical Current Rating (A) 13
Crimp Type F-Crimp
Contact Size Size 16
Contact Fabrication Stamped & Formed
Terminal Type Pin, Socket
Mating Pin Diameter (mm) 1.5, 1.59
Mating Pin Diameter (in) .06, .062
Interface Plating Tin (Sn), Nickel (Ni), Gold (Au)

Dimensions

Compatible Insulation Diameter Range (mm) 1.65 – 3, 1.27 – 2.71, 2.12 – 3.25, 2.26 – 3.33, 1.27 – 2.72, 1.95 – 3.94
Compatible Insulation Diameter Range (in) .065 – .118, .083 – .128, .077 – .155, .05 – .107, .089 – .131
Wire Size (AWG) 18 – 14, 20 – 18, 18 – 15, 15 – 13
Wire Size (mm²) .823 – 2.08, .52 – .823, .82 – 1.5, .52 – .82, 1.5 – 2.5
Tab Length (mm) 19.91, 18.23, 21.6, 23.21
Tab Length (in) .85, .784, .718, .914

Other

Customer Preferred Contact No
Terminal Transmits 0 – 24 A (Low Power)
EU RoHS Compliance Compliant
EU ELV Compliance Compliant

Product Type Features

Receptacle Style 180°
Sealable No
Primary Locking Feature Clean Body, Integrated in Housing

Usage Conditions

Insulation Option Uninsulated, Partially Insulated
Operating Temperature (Max) 125 °C [ 257 °F ]
Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]

Termination Features

Termination Method to Wire & Cable Crimp
Product Terminates To Wire

Operation/Application

Compatible With Wire Base Material Copper

Reference Number

TE Internal Number CAT-AM7801-T273

Related Materials

Flipbook Catalog

Industrial & Commercial Transportation - Terminals and Connectors (English) TE's Industrial & Commercial Transportation Terminals and Connectors flipbook catalog features AMPSEAL, AMPSEAL 16, Circular DIN, DEUTSCH, HDSCS, LEAVYSEAL, and Superseal 1.0 connectors, contacts, tools, and accessories.

Product Specifications

AMPSEAL 16 Connectors Product Specifications (English) This specification covers performance tests and quality requirements for AMPSEAL 16 connectors.

Application Specifications

AMPSEAL 16 Connectors Application Specifications (English) This specification covers the requirements for the application of the AMPSEAL 16 plug connector and header assembly.

Application Specifications

HDSF Size 16 Pin and Socket Contacts (English) This specification covers the requirements for the application of Heavy Duty Stamped and Formed (HDSF) Size 16 Pin and Socket Contacts.

Connector Selector

Connector Selector (English) The Connector Selector is a reference guide to TE Connectivity's (TE) Industrial & Commercial Transportation electrical connectors.
