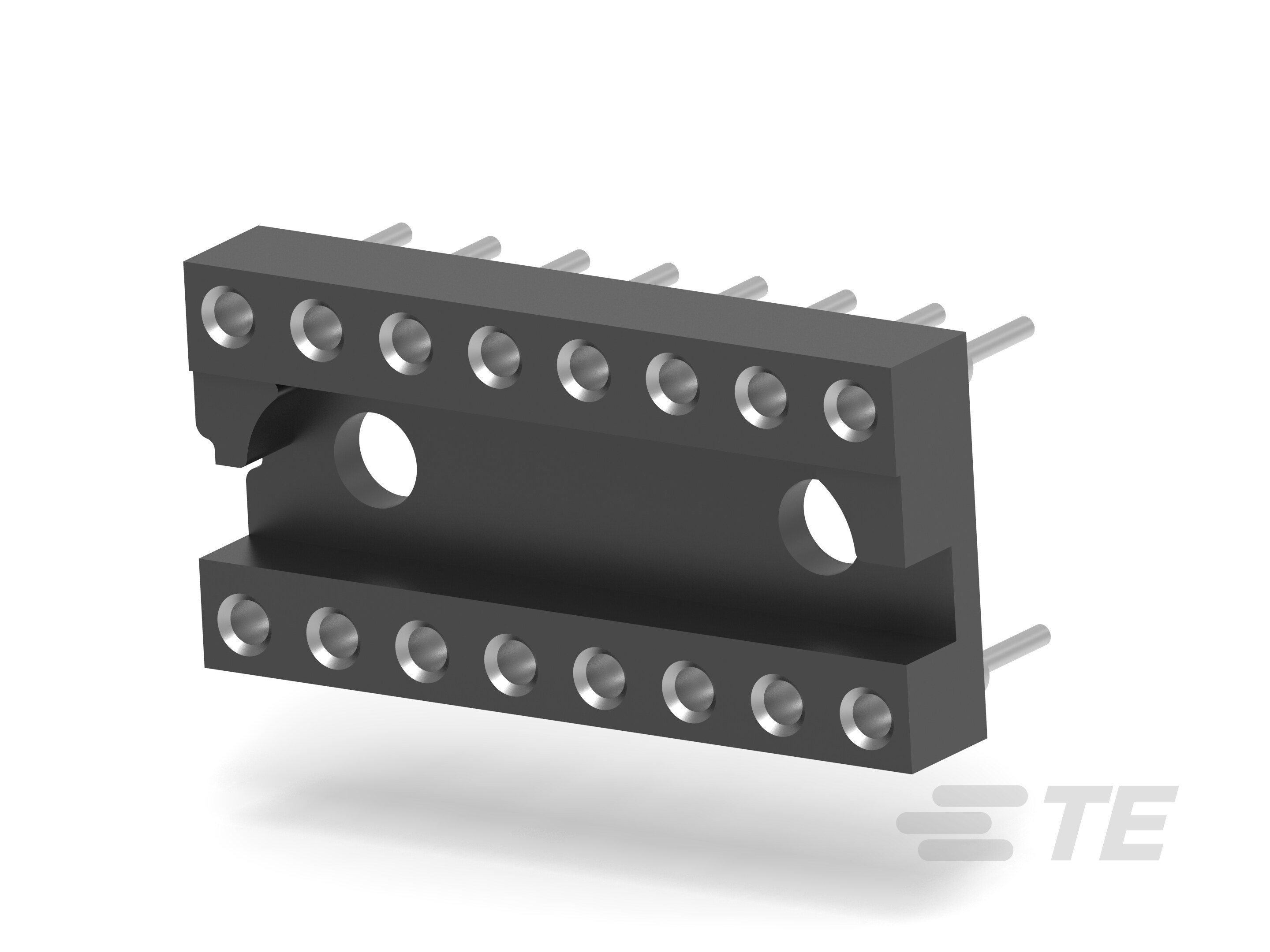

DIP Socket: Standard, Screw Machine, Closed, Tin

Please review product documents or contact us for the latest agency approval information.

• Number of Rows  2

• PCB Mount Orientation  Vertical

• Number of Positions  16, 14, 20, 18, 32, 40, 24, 6, 28

• Packaging Method  Box & Tube, Tube

• Packaging Quantity  80, 30, 26, 12, 24, 15, 17

• Circuit Application  Signal

• Contact Type  Pin

• Mating Contact Type  Four-Fingered

• Contact Base Material  Beryllium Copper

• PCB Contact Termination Area Plating Material  Tin

• IC Socket Type  DIP

• Contact Fabrication  Solid

• Contact Mating Area Plating Material  Tin

• Contact Mating Area Plating Material Thickness (µin) 25

• Contact Current Rating (Max) (A) 3

• Connector Mounting Type  Board Mount

• Mating Alignment Type  Polarization

• Mating Alignment  With

• Product Length (mm) 50.8, 40.64

• Product Length (in) 1.6, 2

• Profile Height from PCB (mm) 3.43, 4.57

• Profile Height from PCB (in) .18, .135

• Row-to-Row Spacing (mm) 7.62, 15.24

• Row-to-Row Spacing (in) .6, .3

• Termination Method to PCB  Through Hole - Solder

• Termination Post & Tail Length  3.18 mm [ .125 in ]

• Housing Material  Thermoplastic Polyester

• Centerline (Pitch)  2.54 mm [ .1 in ]

• Housing Color  Black

• Sleeve Material  Brass/Copper

• Sleeve Plating Material  Tin

• Frame Style  Closed

• Connector Profile  Standard

• UL Flammability Rating  UL 94V-0

• Contact Resistance (mΩ) 10

• Insulation Resistance (MΩ) 5000

• Connector & Contact Terminates To  Printed Circuit Board

• EU RoHS Compliance  Compliant with Exemptions

• EU ELV Compliance  Compliant with Exemptions
