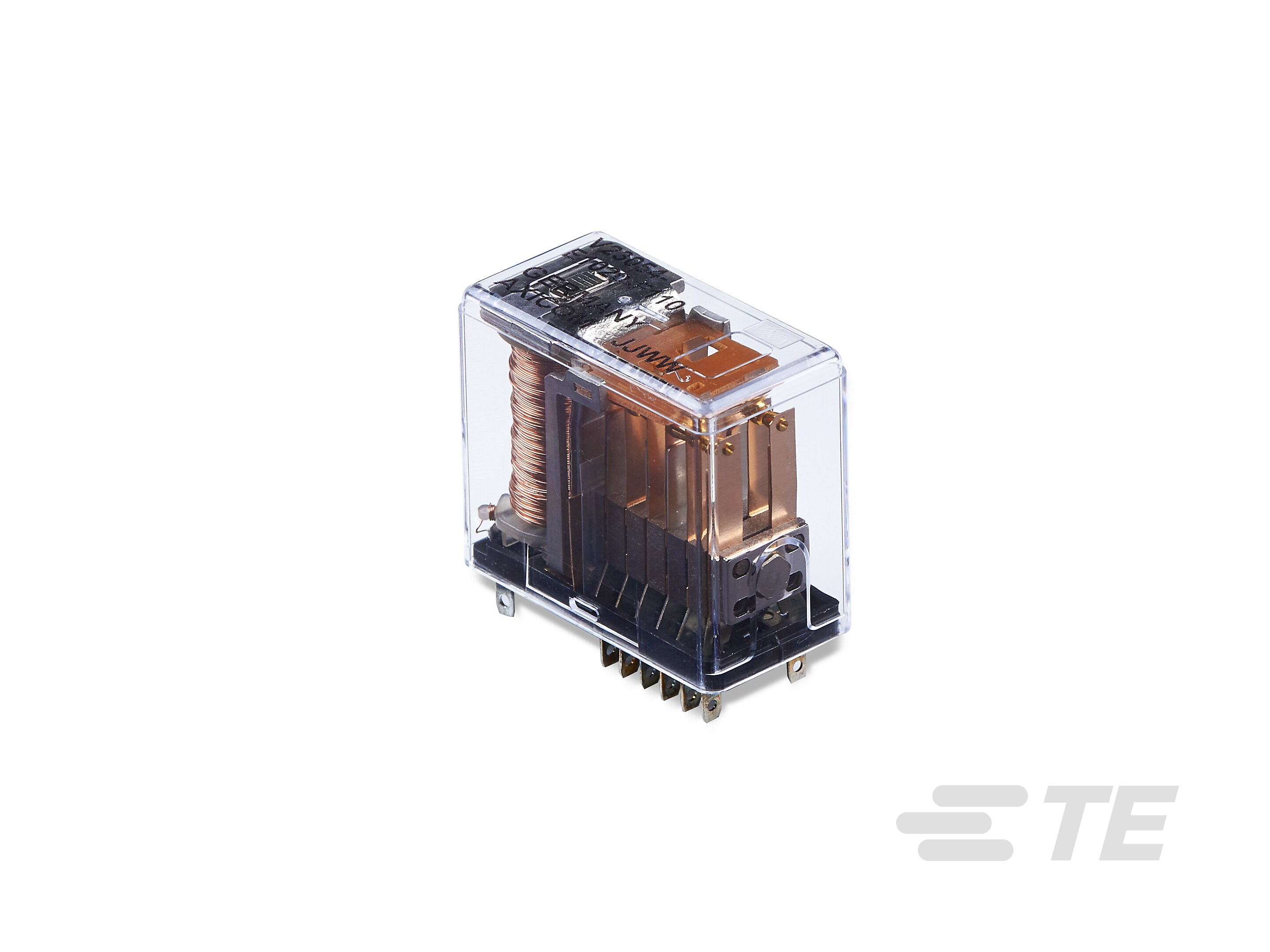

Cradle S Signal Relay V23054

Please review product documents or contact us for the latest agency approval information.

• Coil Power Rating Class (W) 1 – 1.5

• Environmental Ambient Temperature Class (°C) 50 – 70

• Contact Current Class (A) 0 – 2

• Height Class (Mechanical) (mm) 25 – 30

• Length Class (Mechanical) (mm) 20 – 25

• Width Class (Mechanical) (mm) 16 – 20

• EU RoHS Compliance  Compliant

• EU ELV Compliance  Compliant

• Packaging Method  Box & Carton

• Contact Material  Ag, Gold Flashed

• Contact Plating Material  Gold Flash

• Environmental Category of Protection  RTI

• Operating Temperature Range (°C) -40 – 70

• Environmental Ambient Temperature (Max)  70 °C [ 158 °F ]

• Contact Limiting Short-Time Current (A) 2

• Contact Switching Voltage (Max) (VAC) 125

• Contact Limiting Breaking Current (A) 2

• Input Voltage (VDC) 150

• Contact Limiting Making Current (A) 2

• Contact Limiting Continuous Current (A) 2

• Contact Switching Voltage (Max) (VDC) 150

• Input Voltage (VAC) 125

• Insulation Initial Dielectric Between Adjacent Contacts (Vrms) 500

• Coil Resistance (Ω) 130

• Insulation Initial Resistance (MΩ) 1000000

• Insulation Initial Dielectric Between Open Contacts (Vrms) 500

• Contact Current Rating (A) 2

• Coil Voltage Rating (VDC) 12

• Contact Voltage Rating (VAC) 125

• Contact Voltage Rating (VDC) 150

• Coil Power Rating DC (W) 1

• Insulation Initial Dielectric Between Contacts & Coil (Vrms) 500

• Contact Special Features  Bifurcated/Twin Contacts

• Contact Number of Poles  2

• Contact Arrangement  2 Form C DPDT-CO

• Product Length  24 mm [ .944 in ]

• Product Width  19 mm [ .748 in ]

• Product Height  30 mm [ 1.18 in ]

• Product Mounting Feature Type  Mounting Studs

• Product Mount Type  Socket Mount

• Product Weight  20 g [ .704 oz ]

• Enclosure Type  Dust Protected

• Relay & Contactor Type  General Purpose Signal Relay

• Current Type  DC

• Coil Magnetic System  Monostable
