PCB-Mounted Analog Pressure Sensor

PCB-Mounted Analog Pressure Sensor-CAT-BLPS0040
  • MEAS
|
  • MEAS MS4515

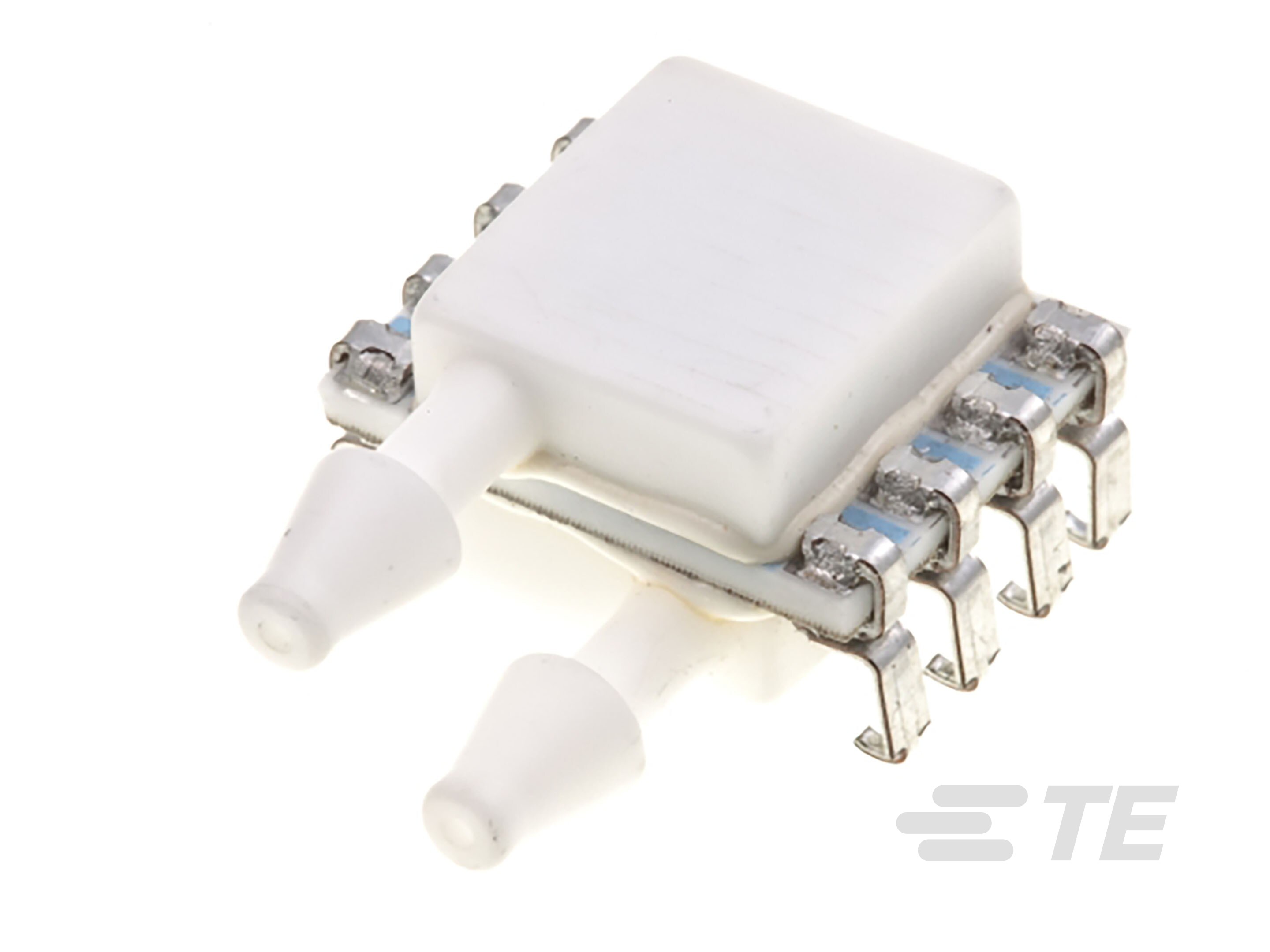

The MS4515 is a small, ceramic based, PCB mounted differential pressure sensor with an analog output signal.
More Less

Product Features

  • Pressure Sensor Type : Analog Pressure Sensor Modules

  • Pressure Type : Differential, Gauge

  • Pressure (inH2O): 2, 5, 30, 10, 4

  • Proof Pressure Range : 300 psi

  • Pressure (psi): 300

Available from

LADD Inc

Build and price the product now

Overview

The 4515 board mountable pressure transducer is built using the latest CMOS sensor conditioning circuitry to create a low cost, high performance transducer designed to meet the strictest requirements from OEM customers.  The MS4515 is fully calibrated and temperature compensated with a total error band (TEB) of less than 1.0% over the compensated range. The sensor operates  from  single supply of either 3.3 or 5.0Vdc and requires a single  external component  for proper operation. The rugged ceramic transducer is available in side port, top port, and manifold mount versions and can measure gage or differential pressure from 2 to 30 inches H2O. The 1/8” barbed pressure ports mate securely with 3/32” ID tubing.

Benefits

  • PCB Mounted pressure transducers
  • Pressure ranges from 2 to 30 inches H2O
  • Amplified ratiometric analog output
  • Differential & gage pressure types
  • Temperature compensated
  • 3.3V or 5.0 Vdc supply voltage
  • Barbed pressure ports
FAQ

Frequently Asked Questions

Are board mountable pressure sensors used in medical devices?

Applications such as Continuous Positive Airway Pressure devices uses board mountable pressure sensors to monitor gage pressure, differential pressure, and vacuum pressure to increase performance of the system.  Learn how sensors such as the MS4515 are used in CPAP applications.



How are sensors like the MS4515 used in drone applications?

For more information on sensors in drones, view the application note: Sensors for Drones.



Is the MS4515 available with a digital output signal?

For digital output applications, view the MS4515DO series pressure sensor.

Features

Please review product documents or contact us for the latest agency approval information.

Dimensions

  • Product Width (mm) 17.4, 9.9

  • Product Width (in) .389, .685

  • Product Height (mm) 7.2, 19.5

  • Product Height (in) .767, .283

  • Product Length  12.7 mm [ .5 in ]

Electrical Characteristics

  • Supply Current (mA) 3

  • Supply Voltage Range (V) 5, 3.3

Product Type Features

  • Sensor Package  8 pin DIL

  • Leg Style  Through Hole

  • Pressure Sensor Type  Analog Pressure Sensor Modules

  • Pressure Type  Differential, Gauge

Packaging Features

  • Sensor Port Configuration  Top Port, Dual Sideport

Usage Conditions

  • Pressure (psi) 300

  • Operating Temperature Range  -10 – 85 °C [ 14 – 185 °F ]

Operation/Application

  • Pressure (inH2O) 2, 5, 30, 10, 4

  • Proof Pressure Range  300 psi

  • Output Signal Type  10 – 90% Vdc, 10 - 90% Vdc, 5 - 95% Vdc

  • Pressure Accuracy  ±0.25% Span

Other

  • Sensor Options  No Option, Gel Coating

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant, Compliant with Exemptions

Reference Number

  • TE Internal Number CAT-BLPS0040
