Medium Pressure Digital / Analog Sensor

MEAS

SMI 4000
SMI 1000

The SMI 1000 and SMI 4000 medium-pressure MEMS sensors offer gauge and differential pressure measurement from 2.5 to 30 PSI providing a calibrated and temperature compensated digital or digital and analog output signal.

More Less

Datasheet |
Digital Datasheet|

Product Features

Operating Temperature Range (°C): -20 – 85, -40 – 105
Operating Temperature Range (°F): -4 – 185, -40 – 221
Pressure (mmHG): 25857.46, 362, 258.57, 2068.59, 15514.47, 10342.98, 775.72, 18100.22
Product Height (mm): 9, 9.32, 5.54
Product Height (in): .354, .366, .218
Pressure (bar): 1.03, .344, .482, 13.78, 34.47, 24.13, 20.68, 2.75
Pressure (psi): 40, 15, 5, 350, 500, 300, 7, 200
Supply Voltage Range (V): 3, 3.3 – 5, 5

Available from

Product	TE Part #	Documents	Pressure	Pressure Sensor Type	Pressure Type	Pressure	Proof Pressure Range	Pressure	Output Signal Type	Pressure Accuracy	Supply Voltage Range	Operating Temperature Range	Sensor Options	EU ELV Compliance
15PSI DIFF. DIGITAL PRESSURE SENSOR	1391-BCE-S-015-000	3D PDF	-	Analog Pressure Sensor Modules, Digital Pressure and Altimeter Sensor Modules	Differential	-	45 psi	-	-	16 bit I2C, 10 – 90% Vdc	±1% F.S, ±1.5% F.S	3 V	-20 – 85 °C	Dual Output, Barb Tube	-
15PSI DIFF. DIGITAL PRESSURE SENSOR	1391-BCE-T-015-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	775.72 mmHG	45 psi	1.03 bar	16 bit I2C, 10 – 90% Vdc	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	-
200KPA DIFF. DIGITAL PRESSURE SENSOR	1331-BCE-S-200-000	3D PDF	-	Digital Pressure and Altimeter Sensor Modules	Differential	-	45 psi	-	16 bit I2C	±1% F.S	3 V	-20 – 85 °C	No Option, Barb Tube	-
25KPA DIFF. DIGITAL PRESSURE SENSOR	4331-BCE-T-025-000	3D PDF	-	Digital Pressure and Altimeter Sensor Modules	Differential	-	25 psi	-	16 bit I2C	±1% F.S	3 V	-20 – 85 °C	Barb Tube, No Option	-
300MBAR DIFF. DIGITAL PRESSURE SENSOR	4331-BCE-T-300-000	3D PDF	-	Digital Pressure and Altimeter Sensor Modules	Differential	-	25 psi	-	16 bit I2C	±1% F.S	3 V	-20 – 85 °C	Barb Tube, No Option	-
5PSI GA. DIGITAL/ANALOG PRESSURE SENSOR	4291-BCE-T-005-001	3D PDF	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Gauge	-	25 psi	-	-	10 – 90% Vdc, 16 bit I2C	±1% F.S, ±1.5% F.S	5 V	-20 – 85 °C	Barb Tube, Dual Output	-
500MBAR GA. DIGITAL/ANALOG PRESSURE SENS	4291-HGE-T-500-000	3D PDF	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Gauge	-	25 psi	-	16 bit I2C, 10 – 90% Vdc	±1% F.S, ±1.5% F.S	3 V	-20 – 85 °C	Dual Output, Barb Tube	-
5PSI GA. DIGITAL/ANALOG PRESSURE SENSOR	4291-BCE-S-005-001	3D PDF	-	Analog Pressure Sensor Modules, Digital Pressure and Altimeter Sensor Modules	Gauge	-	25 psi	-	-	10 – 90% Vdc, 16 bit I2C	±1% F.S, ±1.5% F.S	5 V	-20 – 85 °C	Barb Tube, Dual Output	-
5 PSI Differential Sensor	4391-BHQ-T-005-001		-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	258.57 mmHG	25 psi	.344 bar	16 bit I2C, 10 – 90% Vdc	±1% F.S, ±1.5% F.S	3.3 – 5 V	-40 – 105 °C	Dual Output, Barb Tube	-
5 PSI Gauge Sensor Buy on te.com	4291-BCE-S-005-000	3D PDF	-	-	Analog Pressure Sensor Modules, Digital Pressure and Altimeter Sensor Modules	Gauge	258.57 mmHG	25 psi	.344 bar	16 bit I2C, 10 – 90% Vdc	±1% F.S, ±1.5% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	-
500MBAR GA. DIGITAL/ANALOG PRESSURE SENS	4291-HGE-S-500-000	3D PDF	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Gauge	-	25 psi	-	10 – 90% Vdc, 16 bit I2C	±1% F.S, ±1.5% F.S	3 V	-20 – 85 °C	Dual Output, Barb Tube	-

Overview

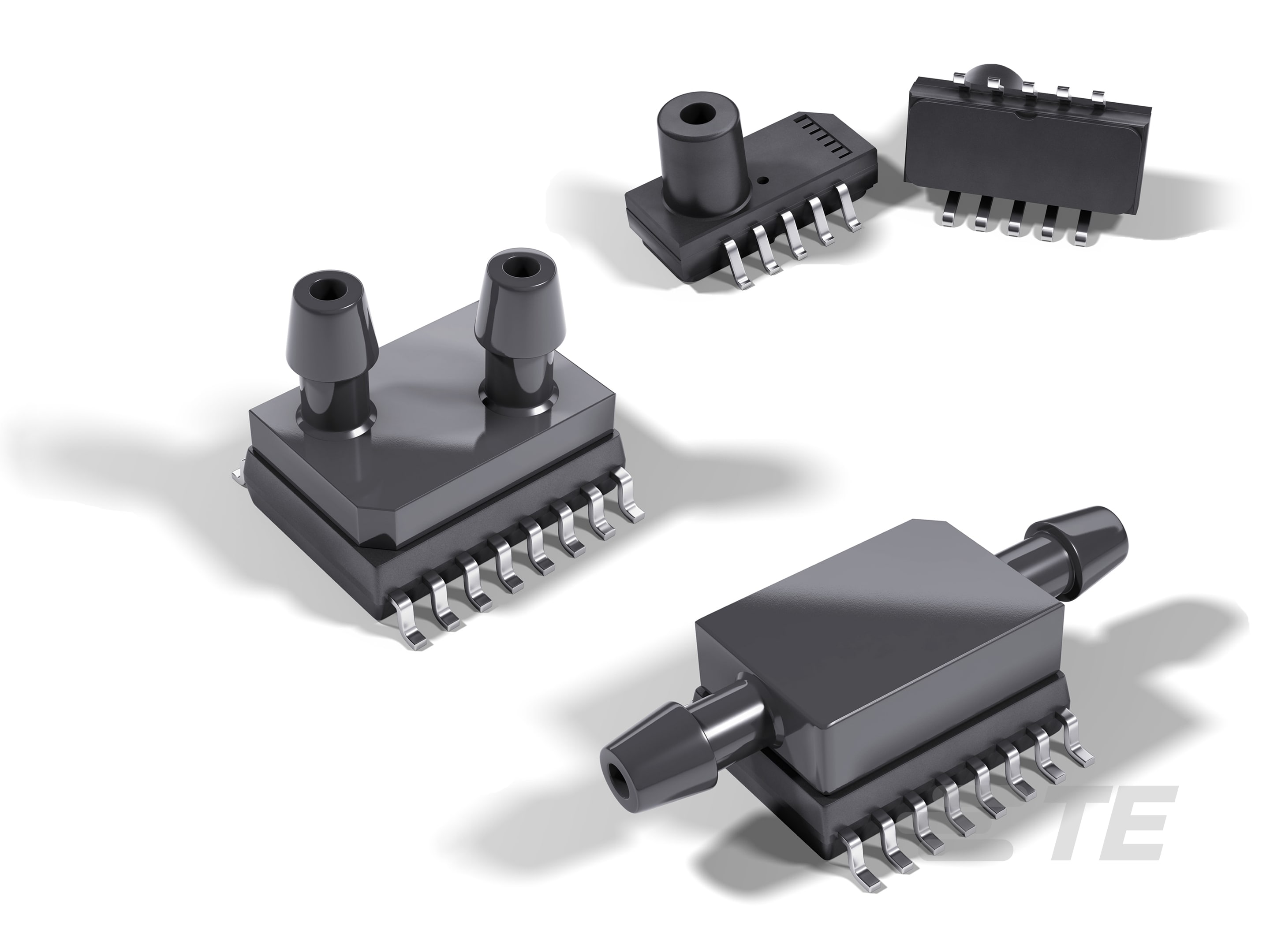

The SMI 1000/SMI 4000 are medium pressure MEMS sensors from 2.5 to 30 PSI available in gauge, differential and asymmetric differential configuration. This series provide a JEDEC standard SOIC-16 package with vertical or horizontal porting options or a JEDEC SOIC-10 package with a vertical port. With the dual porting, a reference measurement is possible to minimize errors due to changes in ambient pressure.

Combining the pressure sensor with a signal-conditioning ASIC in a single package simplifies the use of advanced silicon micro-machined pressure sensors. The pressure sensor can be mounted directly on a standard printed circuit board and a high level, calibrated pressure signal can be acquired from the digital interface. This eliminates the need for additional circuitry, such as a compensation network or microcontroller containing a custom correction algorithm.

Benefits

Pressure ranges: 2.5 to 30 PSI
Pressure type: gauge, differential, asymmetric differential
16-bit I²C digital and analog output interface available
Total error band: ± 1% FS (digital) and ± 1.5% FS (analog)
Pressure calibrated and temperature compensated output
Compensated temperature range: -20°C to 85°C

Applications

Patient Monitoring
Ventilation devices - CPAP, ventilator, oxygen concentrator and conserver
Air and gas flow instrumentation
HVACR
Liquid level measurement

SOLUTION GUIDE

SMI Low Pressure Sensors (English)

APPLICATION NOTE

Sleep Mode And Other Low Power Strategies (English)

The SMI 1000 and SMI 4000 series digital output sensors earned the AccuStable quality label. The AccuStable brand stands for <1% total error band initially and <1% shift during operation over a 10 year lifetime. Qualification is based on 1,000 hours HTOL (High Temperature Operating Life) test at 85°C with 5V.

FAQ

FREQUENTLY ASKED QUESTIONS

What is the proof pressure (maximum pressure to which the device can be taken and still perform within specifications (without loss of accuracy) after returning to the operating pressure range) for the SMI 1000 and SMI 4000 Series?

The proof pressure for sensors with a maximum operating pressure range up to 7.5 PSI is 25 PSI, respectively 45 PSI for devices with a maximum operating pressure range up to 30 PSI.

What is the burst pressure (pressure where part is permanently damaged) of the SMI 1000 and SMI 4000 Series?

The burst pressure for sensors with a maximum operating pressure range up to 7.5 PSI is 40 PSI, respectively 75 PSI for devices with a max operating pressure range up to 30 PSI.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Pressure Type Gauge, Differential
Sensor Package SOIC-10, SOIC-16
Pressure Sensor Type Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules

Electrical Characteristics

Supply Voltage Range (V) 3, 3.3 – 5, 5

Dimensions

Product Height (mm) 5.54, 9, 9.32
Product Height (in) .218, .354, .366
Product Width (mm) 6.1, 10.31
Product Width (in) .24, .405
Product Length (mm) 3.8, 10.26, 19.6
Product Length (in) .149, .403, .771

Usage Conditions

Operating Temperature Range (°C) -40 – 105, -20 – 85
Operating Temperature Range (°F) -40 – 221, -4 – 185

Operation/Application

Pressure (mmHG) 258.57, 362, 775.72, 2068.59, 10342.98, 15514.47, 18100.22, 25857.46
Pressure (bar) .344, .482, 1.03, 2.75, 13.78, 20.68, 24.13, 34.47
Pressure (psi) 5, 7, 15, 40, 200, 300, 350, 500
Proof Pressure Range 25 psi, 45 psi
Output Signal Type 10 – 90% Vdc, 16 bit I2C
Pressure (inH2O) 138.39, 193.75, 415.19, 1107.09, 5535.98, 8303.97, 9687.96, 13839.95
Output Interface I²C
Pressure Accuracy ±1% F.S, ±1.5% F.S

Packaging Features

Sensor Port Configuration Single Vertical, Dual Vertical, Dual Horizontal

Other

Sensor Options Dual Output, Barb Tube, No Option

Reference Number

TE Internal Number CAT-BLPS0064

Related Materials

CAD Files

3D PDF pdf 3D
3D PDF pdf 3D
3D PDF pdf 3D
Customer View Model 2d_dxf.zip English
Customer View Model 3d_igs.zip English
Customer View Model 3d_stp.zip English
Customer View Model 2d_dxf.zip English
Customer View Model 3d_igs.zip English
Customer View Model 3d_stp.zip English
Customer View Model 2d_dxf.zip English
Customer View Model 3d_igs.zip English
Customer View Model 3d_stp.zip English

Datasheets & Catalog Pages

SM4000SM1000 pdf English
