Underground Cable Joint System BV

Underground Cable Joint System BV-CAT-BV
  • GURO
|
  • GURO BV

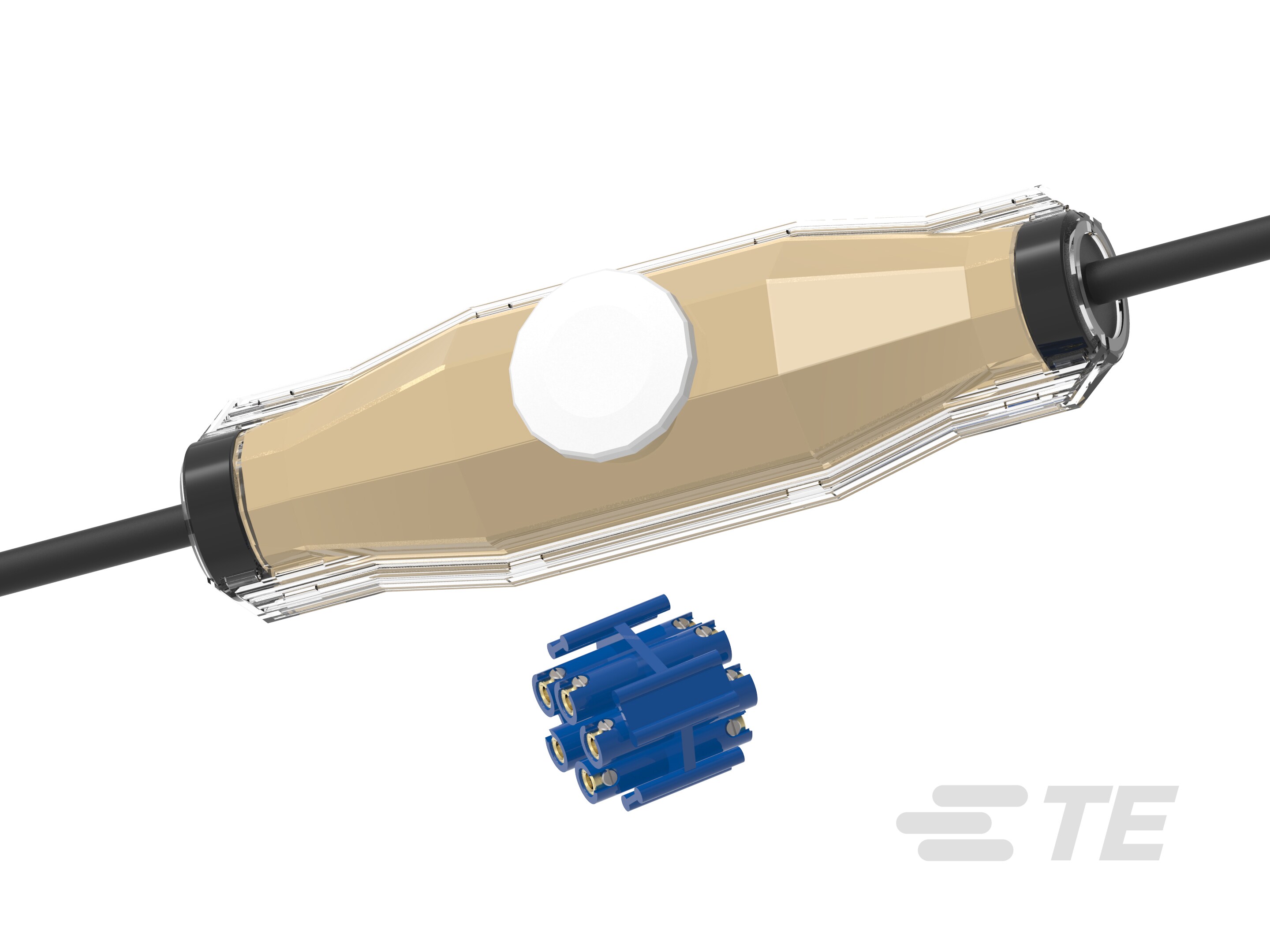

TE Connectivity’s (TE’s) Underground Cable Joint System BV consists of an impact-resistant, transparent polycarbonate housing with labyrinth and polymer foams for sealing at the cable entries.
More Less

Product Features

  • Product Availability : Americas, China, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Asia

  • Joints & Splice Product Type : Straight Joint

  • Voltage Class (kV): ≤ 1

  • Compatible Conductor Cross-Section Range (mm²): 1.5 – 4, 16, 4 – 6, 4 – 16, 25

  • Insulation Material : Polymeric

Available from

LADD Inc
Overview

TE Connectivity’s (TE’s) Underground Cable Joint System BV's snap-to-close design makes for simple installation. The robust housing, is easy and quickly to assemble, cutting to the cable diameter is not needed. The filler material is delivered in

double chamber bags. The connector blocks allow a quick and easy connection with fixed connector distance. Application range covers the cable cross sections from 1.5 mm2 up to 25 mm2.

Key Features

  • Impact resistant
  • Transparent housing
  • Snap-to close design with labyrinth sealing
  • Integrated range taking foam sealings at cable entry
  • Available with environmentfriendly and label-free resin GUROFLEX-N

Know More

Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Cardbox

  • Packaging Quantity  1

Product Type Features

  • Filler  PU RAPID 4300B, GUROFLEX

  • Installation Technology  Resin

  • Joints & Splices Connector Type  Connector Block

  • Cable Sealing Method  Foam

  • Filler Packing (D/C)  Double Chamber Bags

  • Case Seal  Foam, Labyrinth

  • Adhesive Coating  With

  • Joints & Splice Product Type  Straight Joint

  • Closing Method  Snap to Close

Dimensions

  • Filler Volume (l) .35, .55, .8

  • Compatible Cable Diameter - Main (Min) (mm) 4, 16, 21, 13

  • Compatible Conductor Cross-Section Range (mm²) 1.5 – 4, 16, 4 – 6, 4 – 16, 25

  • Compatible Cable Cross-Section - Main (Max) (mm²) 25, 6, 16

  • Compatible Cable Cross-Section - Main (Min) (mm²) 4, 1.5, 16

  • Compatible Cable Diameter - Main (Max) (mm) 20, 30, 25

Operation/Application

  • Marine-Offshore-Shipbuilding Certified  No

  • UV-Stabilized  No

Other

  • Product Use  Outdoor & Direct Buried

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Body Features

  • Primary Product Color  Transparent

  • Insulation Material  Polymeric

Industry Standards

  • Compatible With Approved Standards Products  EN 50393

Usage Conditions

  • Operating Temperature Range (°C) -20 – 55

  • Fluid Resistance Type  Humic Acids, Water

Mechanical Attachment

  • Strain Relief  Without

Product Availability

  • Product Availability  Americas, China, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Asia

Electrical Characteristics

  • Voltage Class (kV) ≤ 1

Configuration Features

  • Number of Main Wires (Max)  4, 5

Reference Number

  • TE Internal Number CAT-BV
