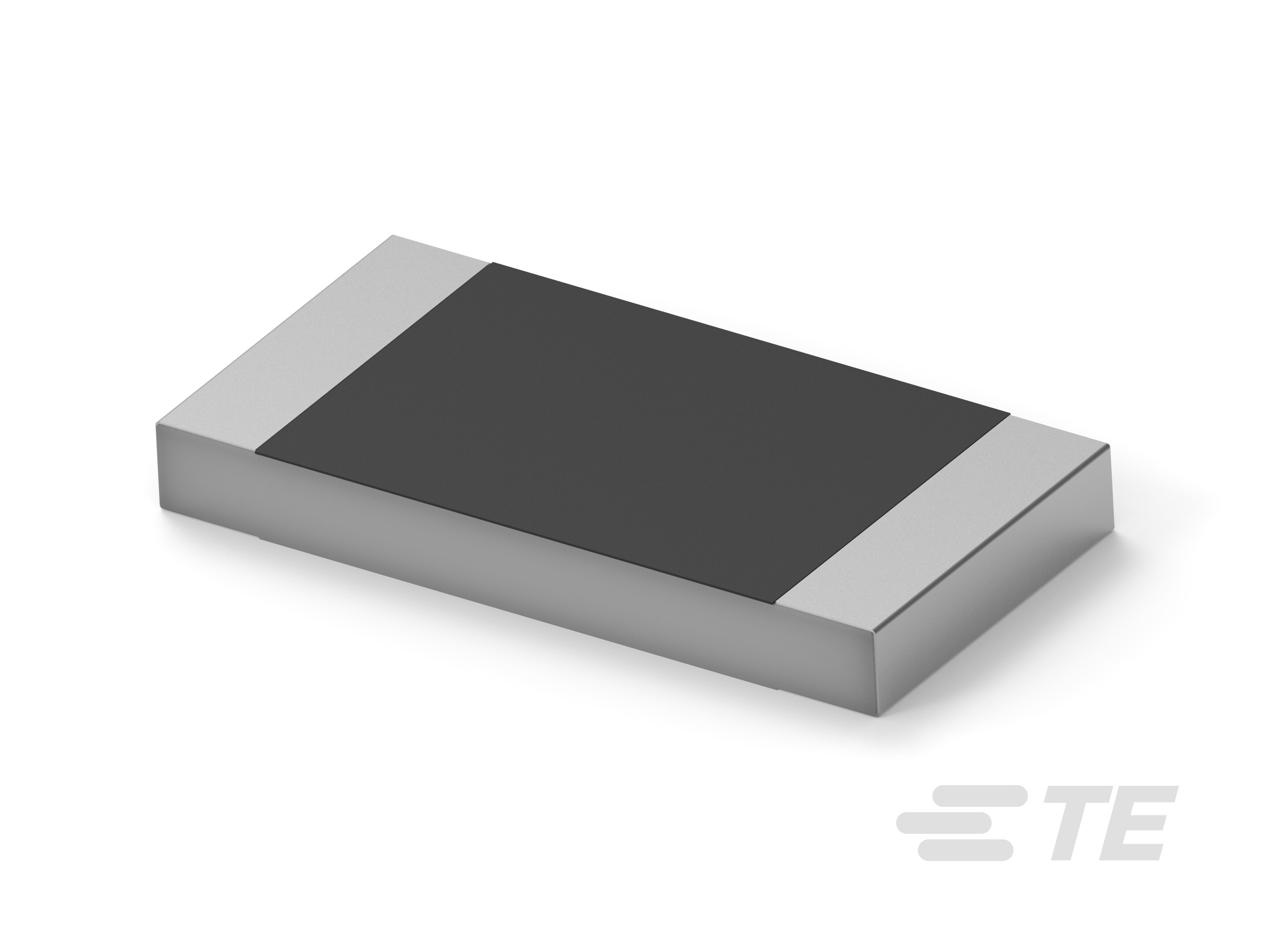

Metal Chip Resistor: Current Sense

CGS TLM

High Power Metal Chip Resistors ideal for Current Sensing positions. Available in sizes 0608 to 2515 and up to 1W dissipation capability.

More Less

Product Features

Resistor Type : Current Sensing Resistor
Element Type : Foil
Package Size Code : 2512, 1206, 2010, 0805
Power Rating (W): .5, 1, .25, .75
Resistance Value (Ω): .051, .022, .012, .075, .024, .062, .02, .03, .027, .016, .043, .091, .56, .1, .013, .056, .068, .033, .015, .047, .039, .036, .68, .01, .018, .011, .082

Available from

Product	TE Part #	Documents	Package Size Code	Power Rating	Resistance Value	Passive Component Tolerance	Temperature Coefficient	Product Height	Product Length	Product Width
TLM 2010 0.75W R10 5% 100PPM 4K RL	1-2176157-3	Product Drawing 3D PDF	2010	.75 W	.1 Ω	5 %	±100 ppm/°C	.55 mm	5 mm	2.5 mm
TLM 1206 0.5W R022 1% 50PPM 5K RL	2-2176156-2	Product Drawing 3D PDF	1206	.5 W	.022 Ω	1 %	±50 ppm/°C	.58 mm	3.05 mm	1.55 mm
TLM 2010 0.75W R018 1% 100PPM 4K RL	2-2176157-0	Product Drawing 3D PDF	2010	.75 W	.018 Ω	1 %	±100 ppm/°C	.58 mm	5 mm	2.5 mm
TLM 1206 0.5W R039 5% 100PPM 5K RL	2176156-8	Product Drawing 3D PDF	1206	.5 W	.039 Ω	5 %	±100 ppm/°C	.55 mm	3.05 mm	1.55 mm
TLM 1206 0.5W R10 1% 50PPM 5K RL	3-2176156-8	Product Drawing 3D PDF	1206	.5 W	.1 Ω	1 %	±50 ppm/°C	.55 mm	3.05 mm	1.55 mm
TLM 1206 0.5W R013 1% 100PPM 5K RL	1-2176156-7	Product Drawing 3D PDF	1206	.5 W	.013 Ω	1 %	±100 ppm/°C	.58 mm	3.05 mm	1.55 mm
TLM 1206 0.5W R016 1% 100PPM 5K RL	1-2176156-9	Product Drawing 3D PDF	1206	.5 W	.016 Ω	1 %	±100 ppm/°C	.58 mm	3.05 mm	1.55 mm
TLM 2512 1.0W R068 5% 100PPM 4K RL	1-2176158-1	Product Drawing	2512	1 W	.68 Ω	5 %	±100 ppm/°C	.55 mm	6.3 mm	3.15 mm
TLM 2010 0.75W R10 1% 50PPM 4K RL	3-2176157-8	Product Drawing 3D PDF	2010	.75 W	.1 Ω	1 %	±50 ppm/°C	.55 mm	5 mm	2.5 mm
TLM 0805 0.25W R011 1% 100PPM 5K RL	1-2176155-5	Product Drawing 3D PDF	0805	.25 W	.011 Ω	1 %	±100 ppm/°C	.55 mm	2 mm	1.25 mm
TLM 1206 0.5W R018 1% 100PPM 5K RL	2-2176156-0	Product Drawing 3D PDF	1206	.5 W	.018 Ω	1 %	±100 ppm/°C	.58 mm	3.05 mm	1.55 mm
TLM 1206 0.5W R030 1% 50PPM 5K RL	2-2176156-5	Product Drawing 3D PDF	1206	.5 W	.03 Ω	1 %	±50 ppm/°C	.55 mm	3.05 mm	1.55 mm
TLM 2010 0.75W R039 5% 100PPM 4K RL Buy on te.com	2176157-8	Product Drawing 3D PDF	2010	.75 W	.039 Ω	5 %	±100 ppm/°C	.55 mm	5 mm	2.5 mm
TLM 2010 0.75W R047 1% 50PPM 4K RL	3-2176157-0	Product Drawing 3D PDF	2010	.75 W	.047 Ω	1 %	±50 ppm/°C	.55 mm	5 mm	2.5 mm
TLM 1206 0.5W R056 5% 100PPM 5K RL	1-2176156-0	Product Drawing 3D PDF	1206	.5 W	.056 Ω	5 %	±100 ppm/°C	.55 mm	3.05 mm	1.55 mm
TLM 1206 0.5W R011 1% 100PPM 5K RL	1-2176156-5	Product Drawing 3D PDF	1206	.5 W	.011 Ω	1 %	±100 ppm/°C	.58 mm	3.05 mm	1.55 mm
TLM 1206 0.5W R015 1% 100PPM 5K RL	1-2176156-8	Product Drawing 3D PDF	1206	.5 W	.015 Ω	1 %	±100 ppm/°C	.58 mm	3.05 mm	1.55 mm
TLM 2010 0.75W R013 1% 100PPM 4K RL	1-2176157-7	Product Drawing 3D PDF	2010	.75 W	.013 Ω	1 %	±100 ppm/°C	.58 mm	5 mm	2.5 mm
TLM 2512 1.0W R011 1% 100PPM 4K RL	1-2176158-5	Product Drawing	2512	1 W	.011 Ω	1 %	±100 ppm/°C	.58 mm	6.3 mm	3.15 mm
TLM 1206 0.5W R043 1% 50PPM 5K RL	2-2176156-9	Product Drawing 3D PDF	1206	.5 W	.043 Ω	1 %	±50 ppm/°C	.55 mm	3.05 mm	1.55 mm
TLM 2010 0.75W R033 1% 50PPM 4K RL	2-2176157-6	Product Drawing 3D PDF	2010	.75 W	.033 Ω	1 %	±50 ppm/°C	.55 mm	5 mm	2.5 mm
TLM 0805 0.25W R020 1% 50PPM 5K RL	2-2176155-1	Product Drawing 3D PDF	0805	.25 W	.02 Ω	1 %	±50 ppm/°C	.55 mm	2 mm	1.25 mm
TLM 2010 0.75W R043 1% 50PPM 4K RL	2-2176157-9	Product Drawing 3D PDF	2010	.75 W	.043 Ω	1 %	±50 ppm/°C	.55 mm	5 mm	2.5 mm
TLM 0805 0.25W R013 1% 100PPM 5K RL	1-2176155-7	Product Drawing 3D PDF	0805	.25 W	.013 Ω	1 %	±100 ppm/°C	.55 mm	2 mm	1.25 mm
TLM 2512 1.0W R043 1% 50PPM 4K RL	2-2176158-9	Product Drawing	2512	1 W	.043 Ω	1 %	±50 ppm/°C	.55 mm	6.3 mm	3.15 mm
TLM 0805 0.25W R082 1% 50PPM 5K RL	3-2176155-6	Product Drawing 3D PDF	0805	.25 W	.082 Ω	1 %	±50 ppm/°C	.52 mm	2 mm	1.25 mm
TLM 0805 0.25W R10 1% 50PPM 5K RL	3-2176155-8	Product Drawing 3D PDF	0805	.25 W	.1 Ω	1 %	±50 ppm/°C	.52 mm	2 mm	1.25 mm
TLM 2010 0.75W R075 1% 50PPM 4K RL	3-2176157-5	Product Drawing 3D PDF	2010	.75 W	.075 Ω	1 %	±50 ppm/°C	.55 mm	5 mm	2.5 mm
TLM 1206 0.5W R01 1% 100PPM 5K RL	1-2176156-4	Product Drawing 3D PDF	1206	.5 W	.01 Ω	1 %	±100 ppm/°C	.58 mm	3.05 mm	1.55 mm
TLM 1206 0.5W R024 1% 50PPM 5K RL	2-2176156-3	Product Drawing 3D PDF	1206	.5 W	.024 Ω	1 %	±50 ppm/°C	.58 mm	3.05 mm	1.55 mm
TLM 2010 0.75W R030 1% 50PPM 4K RL	2-2176157-5	Product Drawing 3D PDF	2010	.75 W	.03 Ω	1 %	±50 ppm/°C	.55 mm	5 mm	2.5 mm
TLM 2010 0.75W R039 1% 50PPM 4K RL	2-2176157-8	Product Drawing 3D PDF	2010	.75 W	.039 Ω	1 %	±50 ppm/°C	.55 mm	5 mm	2.5 mm
TLM 2512 1.0W R027 1% 50PPM 4K RL	2-2176158-4	Product Drawing	2512	1 W	.027 Ω	1 %	±50 ppm/°C	.58 mm	6.3 mm	3.15 mm
TLM 2512 1.0W R039 1% 50PPM 4K RL	2-2176158-8	Product Drawing	2512	1 W	.039 Ω	1 %	±50 ppm/°C	.55 mm	6.3 mm	3.15 mm
TLM 0805 0.25W R047 1% 50PPM 5K RL	3-2176155-0	Product Drawing 3D PDF	0805	.25 W	.047 Ω	1 %	±50 ppm/°C	.52 mm	2 mm	1.25 mm
TLM 1206 0.5W R082 1% 50PPM 5K RL	3-2176156-6	Product Drawing 3D PDF	1206	.5 W	.082 Ω	1 %	±50 ppm/°C	.55 mm	3.05 mm	1.55 mm
TLM 2010 0.75W R051 1% 50PPM 4K RL	3-2176157-1	Product Drawing 3D PDF	2010	.75 W	.051 Ω	1 %	±50 ppm/°C	.55 mm	5 mm	2.5 mm
TLM 2512 1.0W R056 5% 100PPM 4K RL	1-2176158-0	Product Drawing	2512	1 W	.56 Ω	5 %	±100 ppm/°C	.55 mm	6.3 mm	3.15 mm
TLM 1206 0.5W R039 1% 50PPM 5K RL	2-2176156-8	Product Drawing 3D PDF	1206	.5 W	.039 Ω	1 %	±50 ppm/°C	.55 mm	3.05 mm	1.55 mm
TLM 2512 1.0W R036 1% 50PPM 4K RL	2-2176158-7	Product Drawing	2512	1 W	.036 Ω	1 %	±50 ppm/°C	.55 mm	6.3 mm	3.15 mm
TLM 0805 0.25W R068 1% 50PPM 5K RL	3-2176155-4	Product Drawing 3D PDF	0805	.25 W	.068 Ω	1 %	±50 ppm/°C	.52 mm	2 mm	1.25 mm
TLM 2010 0.75W R024 1% 50PPM 4K RL	2-2176157-3	Product Drawing 3D PDF	2010	.75 W	.024 Ω	1 %	±50 ppm/°C	.58 mm	5 mm	2.5 mm
TLM 2010 0.75W R056 1% 50PPM 4K RL	3-2176157-2	Product Drawing 3D PDF	2010	.75 W	.056 Ω	1 %	±50 ppm/°C	.55 mm	5 mm	2.5 mm
TLM 0805 0.25W R10 5% 100PPM 5K RL	1-2176155-3	Product Drawing 3D PDF	0805	.25 W	.1 Ω	5 %	±100 ppm/°C	.52 mm	2 mm	1.25 mm
TLM 1206 0.5W R068 5% 100PPM 5K RL	1-2176156-1	Product Drawing 3D PDF	1206	.5 W	.068 Ω	5 %	±100 ppm/°C	.55 mm	3.05 mm	1.55 mm
TLM 2512 1.0W R012 1% 100PPM 4K RL	1-2176158-6	Product Drawing	2512	1 W	.012 Ω	1 %	±100 ppm/°C	.58 mm	6.3 mm	3.15 mm
TLM 2010 0.75W R022 1% 50PPM 4K RL	2-2176157-2	Product Drawing 3D PDF	2010	.75 W	.022 Ω	1 %	±50 ppm/°C	.58 mm	5 mm	2.5 mm
TLM 2512 1.0W R022 1% 50PPM 4K RL	2-2176158-2	Product Drawing	2512	1 W	.022 Ω	1 %	±50 ppm/°C	.58 mm	6.3 mm	3.15 mm
TLM 0805 0.25W R024 1% 50PPM 5K RL	2-2176155-3	Product Drawing 3D PDF	0805	.25 W	.024 Ω	1 %	±50 ppm/°C	.55 mm	2 mm	1.25 mm
TLM 2512 1.0W R020 1% 50PPM 4K RL	2-2176158-1	Product Drawing	2512	1 W	.02 Ω	1 %	±50 ppm/°C	.58 mm	6.3 mm	3.15 mm
TLM 2512 1.0W R082 1% 50PPM 4K RL	3-2176158-6	Product Drawing	2512	1 W	.082 Ω	1 %	±50 ppm/°C	.55 mm	6.3 mm	3.15 mm
TLM 0805 0.25W R036 1% 50PPM 5K RL	2-2176155-7	Product Drawing 3D PDF	0805	.25 W	.036 Ω	1 %	±50 ppm/°C	.52 mm	2 mm	1.25 mm
TLM 0805 0.25W R039 1% 50PPM 5K RL	2-2176155-8	Product Drawing 3D PDF	0805	.25 W	.039 Ω	1 %	±50 ppm/°C	.52 mm	2 mm	1.25 mm
TLM 2512 1.0W R033 1% 50PPM 4K RL	2-2176158-6	Product Drawing	2512	1 W	.033 Ω	1 %	±50 ppm/°C	.55 mm	6.3 mm	3.15 mm
TLM 1206 0.5W R033 5% 100PPM 5K RL	2176156-7	Product Drawing 3D PDF	1206	.5 W	.033 Ω	5 %	±100 ppm/°C	.55 mm	3.05 mm	1.55 mm
TLM 2512 1.0W R056 1% 50PPM 4K RL	3-2176158-2	Product Drawing	2512	1 W	.056 Ω	1 %	±50 ppm/°C	.55 mm	6.3 mm	3.15 mm
TLM 0805 0.25W R015 1% 100PPM 5K RL	1-2176155-8	Product Drawing 3D PDF	0805	.25 W	.015 Ω	1 %	±100 ppm/°C	.55 mm	2 mm	1.25 mm
TLM 2010 0.75W R012 1% 100PPM 4K RL	1-2176157-6	Product Drawing 3D PDF	2010	.75 W	.012 Ω	1 %	±100 ppm/°C	.58 mm	5 mm	2.5 mm
TLM 2010 0.75W R01 5% 100PPM 4K RL Buy on te.com	2176157-1	Product Drawing 3D PDF	2010	.75 W	.01 Ω	5 %	±100 ppm/°C	.58 mm	5 mm	2.5 mm
TLM 2010 0.75W R033 5% 100PPM 4K RL Buy on te.com	2176157-7	Product Drawing 3D PDF	2010	.75 W	.033 Ω	5 %	±100 ppm/°C	.55 mm	5 mm	2.5 mm
TLM 2512 1.0W R10 1% 50PPM 4K RL	3-2176158-8	Product Drawing	2512	1 W	.1 Ω	1 %	±50 ppm/°C	.55 mm	6.3 mm	3.15 mm
TLM 0805 0.25W R022 1% 50PPM 5K RL	2-2176155-2	Product Drawing 3D PDF	0805	.25 W	.022 Ω	1 %	±50 ppm/°C	.55 mm	2 mm	1.25 mm
TLM 2512 1.0W R013 1% 100PPM 4K RL	1-2176158-7	Product Drawing	2512	1 W	.013 Ω	1 %	±100 ppm/°C	.58 mm	6.3 mm	3.15 mm
TLM 0805 0.25W R01 1% 100PPM 5K RL	1-2176155-4	Product Drawing 3D PDF	0805	.25 W	.01 Ω	1 %	±100 ppm/°C	.55 mm	2 mm	1.25 mm
TLM 2512 1.0W R015 1% 100PPM 4K RL	1-2176158-8	Product Drawing	2512	1 W	.015 Ω	1 %	±100 ppm/°C	.58 mm	6.3 mm	3.15 mm
TLM 2512 1.0W R024 1% 50PPM 4K RL	2-2176158-3	Product Drawing	2512	1 W	.024 Ω	1 %	±50 ppm/°C	.58 mm	6.3 mm	3.15 mm
TLM 0805 0.25W R091 1% 50PPM 5K RL	3-2176155-7	Product Drawing 3D PDF	0805	.25 W	.091 Ω	1 %	±50 ppm/°C	.52 mm	2 mm	1.25 mm
TLM 1206 0.5W R075 1% 50PPM 5K RL	3-2176156-5	Product Drawing 3D PDF	1206	.5 W	.075 Ω	1 %	±50 ppm/°C	.55 mm	3.05 mm	1.55 mm
TLM 2010 0.75W R015 5% 100PPM 4K RL Buy on te.com	2176157-3	Product Drawing 3D PDF	2010	.75 W	.015 Ω	5 %	±100 ppm/°C	.58 mm	5 mm	2.5 mm
TLM 1206 0.5W R091 1% 50PPM 5K RL	3-2176156-7	Product Drawing 3D PDF	1206	.5 W	.091 Ω	1 %	±50 ppm/°C	.55 mm	3.05 mm	1.55 mm
TLM 1206 0.5W R033 1% 50PPM 5K RL	2-2176156-6	Product Drawing 3D PDF	1206	.5 W	.033 Ω	1 %	±50 ppm/°C	.55 mm	3.05 mm	1.55 mm
TLM 2010 0.75W R022 5% 100PPM 4K RL Buy on te.com	2176157-5	Product Drawing 3D PDF	2010	.75 W	.022 Ω	5 %	±100 ppm/°C	.58 mm	5 mm	2.5 mm
TLM 0805 0.25W R062 1% 50PPM 5K RL	3-2176155-3	Product Drawing 3D PDF	0805	.25 W	.062 Ω	1 %	±50 ppm/°C	.52 mm	2 mm	1.25 mm
TLM 2010 0.75W R027 1% 50PPM 4K RL	2-2176157-4	Product Drawing 3D PDF	2010	.75 W	.027 Ω	1 %	±50 ppm/°C	.58 mm	5 mm	2.5 mm
TLM 2010 0.75W R036 1% 50PPM 4K RL	2-2176157-7	Product Drawing 3D PDF	2010	.75 W	.036 Ω	1 %	±50 ppm/°C	.55 mm	5 mm	2.5 mm
TLM 0805 0.25W R056 1% 50PPM 5K RL	3-2176155-2	Product Drawing 3D PDF	0805	.25 W	.056 Ω	1 %	±50 ppm/°C	.52 mm	2 mm	1.25 mm
TLM 2010 0.75W R082 1% 50PPM 4K RL	3-2176157-6	Product Drawing 3D PDF	2010	.75 W	.082 Ω	1 %	±50 ppm/°C	.55 mm	5 mm	2.5 mm
TLM 2512 1.0W R051 1% 50PPM 4K RL	3-2176158-1	Product Drawing	2512	1 W	.051 Ω	1 %	±50 ppm/°C	.55 mm	6.3 mm	3.15 mm
TLM 2512 1.0W R01 1% 100PPM 4K RL	1-2176158-4	Product Drawing	2512	1 W	.01 Ω	1 %	±100 ppm/°C	.58 mm	6.3 mm	3.15 mm
TLM 0805 0.25W R030 1% 50PPM 5K RL	2-2176155-5	Product Drawing 3D PDF	0805	.25 W	.03 Ω	1 %	±50 ppm/°C	.52 mm	2 mm	1.25 mm
TLM 2512 1.0W R015 5% 100PPM 4K RL	2176158-3	Product Drawing	2512	1 W	.015 Ω	5 %	±100 ppm/°C	.58 mm	6.3 mm	3.15 mm
TLM 1206 0.5W R047 1% 50PPM 5K RL	3-2176156-0	Product Drawing 3D PDF	1206	.5 W	.047 Ω	1 %	±50 ppm/°C	.55 mm	3.05 mm	1.55 mm
TLM 2512 1.0W R062 1% 50PPM 4K RL	3-2176158-3	Product Drawing	2512	1 W	.062 Ω	1 %	±50 ppm/°C	.55 mm	6.3 mm	3.15 mm
TLM 1206 0.5W R012 1% 100PPM 5K RL	1-2176156-6	Product Drawing 3D PDF	1206	.5 W	.012 Ω	1 %	±100 ppm/°C	.58 mm	3.05 mm	1.55 mm
TLM 2010 0.75W R01 1% 100PPM 4K RL	1-2176157-4	Product Drawing 3D PDF	2010	.75 W	.01 Ω	1 %	±100 ppm/°C	.58 mm	5 mm	2.5 mm
TLM 0805 0.25W R051 1% 50PPM 5K RL	3-2176155-1	Product Drawing 3D PDF	0805	.25 W	.051 Ω	1 %	±50 ppm/°C	.52 mm	2 mm	1.25 mm
TLM 1206 0.5W R020 1% 50PPM 5K RL	2-2176156-1	Product Drawing 3D PDF	1206	.5 W	.02 Ω	1 %	±50 ppm/°C	.58 mm	3.05 mm	1.55 mm
TLM 2010 0.75W R047 5% 100PPM 4K RL Buy on te.com	2176157-9	Product Drawing 3D PDF	2010	.75 W	.047 Ω	5 %	±100 ppm/°C	.55 mm	5 mm	2.5 mm
TLM 1206 0.5W R051 1% 50PPM 5K RL	3-2176156-1	Product Drawing 3D PDF	1206	.5 W	.051 Ω	1 %	±50 ppm/°C	.55 mm	3.05 mm	1.55 mm
TLM 0805 0.25W R016 1% 100PPM 5K RL	1-2176155-9	Product Drawing 3D PDF	0805	.25 W	.016 Ω	1 %	±100 ppm/°C	.55 mm	2 mm	1.25 mm
TLM 2512 1.0W R030 1% 50PPM 4K RL	2-2176158-5	Product Drawing	2512	1 W	.03 Ω	1 %	±50 ppm/°C	.55 mm	6.3 mm	3.15 mm
TLM 0805 0.25W R075 1% 50PPM 5K RL	3-2176155-5	Product Drawing 3D PDF	0805	.25 W	.075 Ω	1 %	±50 ppm/°C	.52 mm	2 mm	1.25 mm
TLM 1206 0.5W R056 1% 50PPM 5K RL	3-2176156-2	Product Drawing 3D PDF	1206	.5 W	.056 Ω	1 %	±50 ppm/°C	.55 mm	3.05 mm	1.55 mm
TLM 2010 0.75W R082 5% 100PPM 4K RL	1-2176157-2	Product Drawing 3D PDF	2010	.75 W	.082 Ω	5 %	±100 ppm/°C	.55 mm	5 mm	2.5 mm
TLM 1206 0.5W R068 1% 50PPM 5K RL	3-2176156-4	Product Drawing 3D PDF	1206	.5 W	.068 Ω	1 %	±50 ppm/°C	.55 mm	3.05 mm	1.55 mm
TLM 2010 0.75W R011 1% 100PPM 4K RL	1-2176157-5	Product Drawing 3D PDF	2010	.75 W	.011 Ω	1 %	±100 ppm/°C	.58 mm	5 mm	2.5 mm
TLM 0805 0.25W R033 1% 50PPM 5K RL	2-2176155-6	Product Drawing 3D PDF	0805	.25 W	.033 Ω	1 %	±50 ppm/°C	.52 mm	2 mm	1.25 mm
TLM 0805 0.25W R012 1% 100PPM 5K RL	1-2176155-6	Product Drawing 3D PDF	0805	.25 W	.012 Ω	1 %	±100 ppm/°C	.55 mm	2 mm	1.25 mm
TLM 0805 0.25W R018 1% 100PPM 5K RL	2-2176155-0	Product Drawing 3D PDF	0805	.25 W	.018 Ω	1 %	±100 ppm/°C	.55 mm	2 mm	1.25 mm
TLM 2010 0.75W R015 1% 100PPM 4K RL	1-2176157-8	Product Drawing 3D PDF	2010	.75 W	.015 Ω	1 %	±100 ppm/°C	.58 mm	5 mm	2.5 mm

Overview

TLM series is a range of High Power Metal Chip Resistors ideal for Current Sensing positions with a special metal foil construction ensuring high reliability and up to 1W dissipation capability.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Resistor Type Current Sensing Resistor
Element Type Foil
Package Size Code 2512, 1206, 2010, 0805

Configuration Features

Number of Resistors 1

Electrical Characteristics

Power Rating (W) .5, 1, .25, .75
Resistance Value (Ω) .051, .022, .012, .075, .024, .062, .02, .03, .027, .016, .043, .091, .56, .1, .013, .056, .068, .033, .015, .047, .039, .036, .68, .01, .018, .011, .082
Resistance Class Up to 1kΩ
Passive Component Tolerance (%) 1, 5

Termination Features

Surface Mount Resistor Termination Type Solder
Number of Terminations 2

Dimensions

Product Height (mm) .52, .55, .58
Product Height (in) .022, .02, .023
Product Length (mm) 2, 6.3, 3.05, 5
Product Length (in) .12, .079, .248, .197
Product Width (mm) 3.15, 1.55, 2.5, 1.25
Product Width (in) .124, .049, .098, .061

Usage Conditions

Temperature Coefficient (ppm/°C) ±50, ±100

Packaging Features

Packaging Method Taped & Reeled

Other

EU RoHS Compliance Compliant
EU ELV Compliance Compliant

Reference Number

TE Internal Number CAT-C339-T547A

Related Materials

Datasheets & Catalog Pages

SMD Current Sense Metal Chip Resistor pdf English

Metal Chip Resistor: Current Sense
